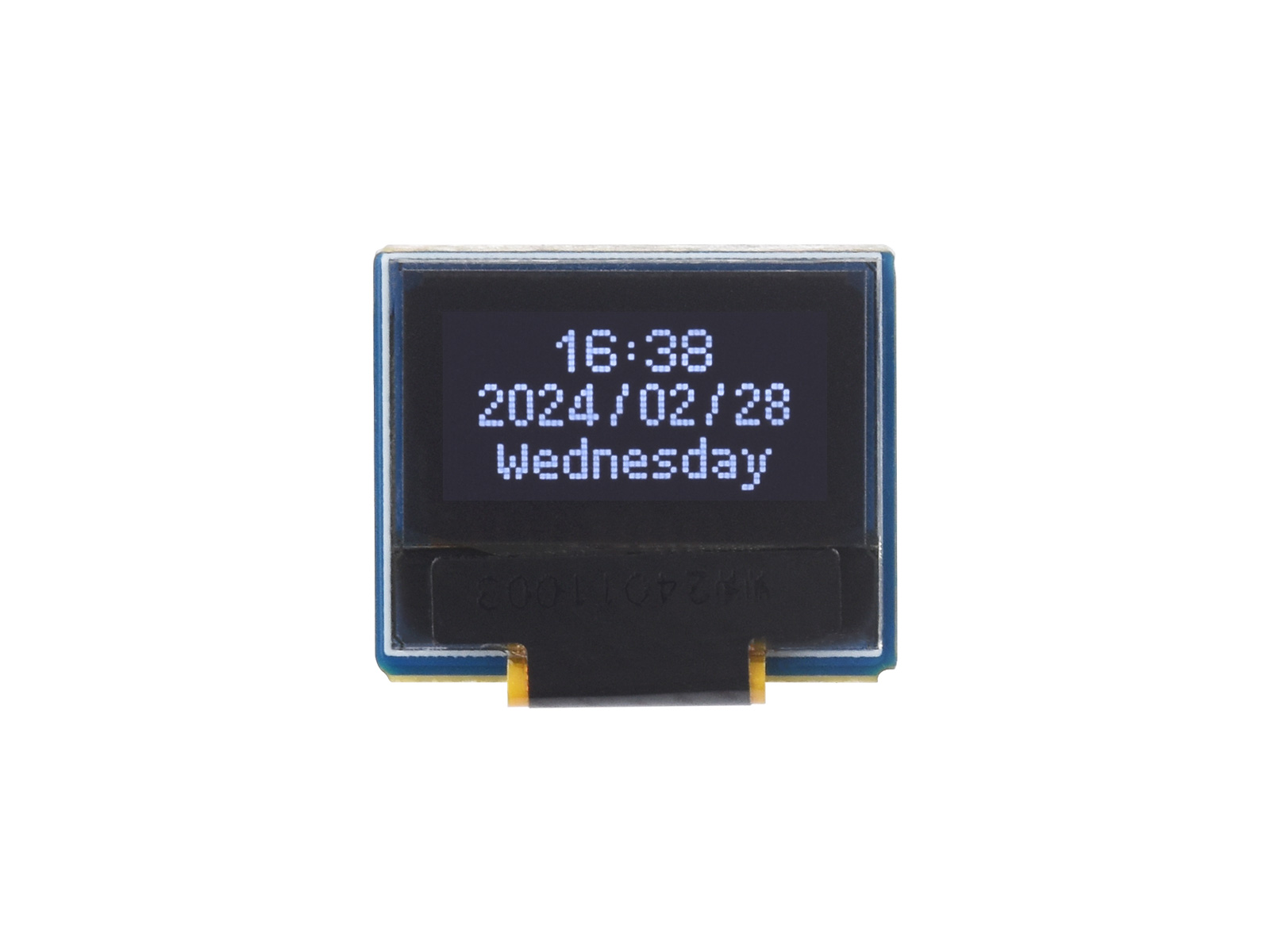

0.49inch OLED Display Module, 64×32 Resolution, I2C Communication, Black / White Display Color0.49inch OLED Display ModuleEmbedded SSD1315 driver chip, I2C CommunicationComes with examples for Raspberry Pi, Raspberry Pi Pico, Arduino, STM32, etc. Size0.49"Resolution64×32Display ColorBlack/WhiteDisplay PanelOLEDDriverSSD1315InterfaceI2CFeatures at a glanceUltra-narrow bezel, compact size, with onboard voltage translatorAdopts I2C communication interface, better compatibility, fast data rateComes with online development resources (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32, etc.)SpecificationsOperating voltage3.3V / 5VResolution64 × 32 pixelsCommunication InterfaceI2CDisplay size14.4 × 11.5mmDISPLAY PANELOLEDPIXEL SIZE0.155 × 0.155mmDriverSSD1315Module size15.50 × 13.00mmControl InterfaceVCCPower (3.3V / 5V input)GNDGroundSDAData inputSCLClock inputHardware connectionconnecting with Raspberry Piconnecting with Arduino boardUsage Examplefor reference only, the STM32 board is NOT included.Outline dimensionsResources & ServicesWiki:www.waveshare.com/wiki/0.49inch_OLED_ModuleSelection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.Lieferumfang0.49inch OLED Module x1MX1.25 4PIN cable ~20cm x112

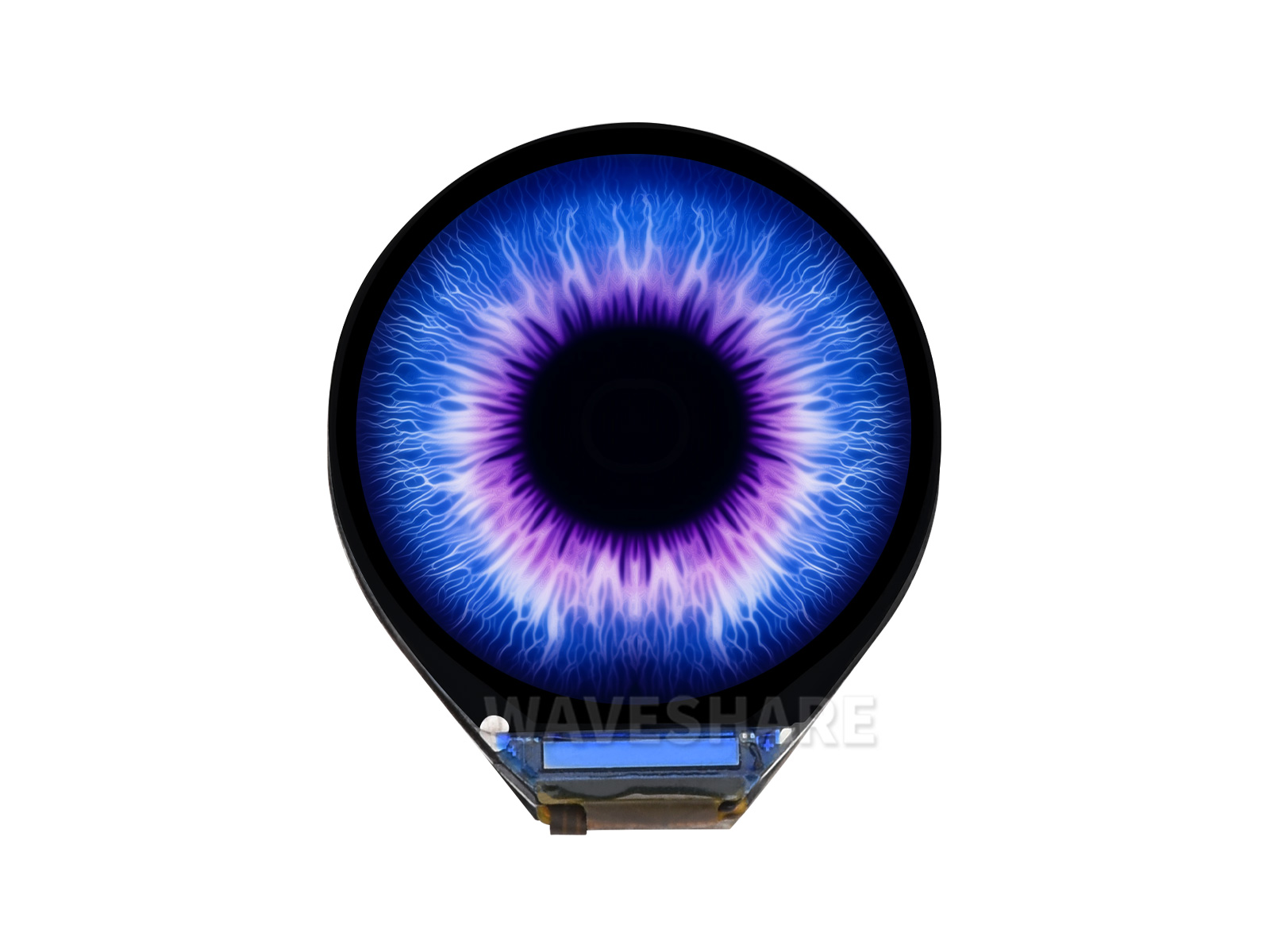

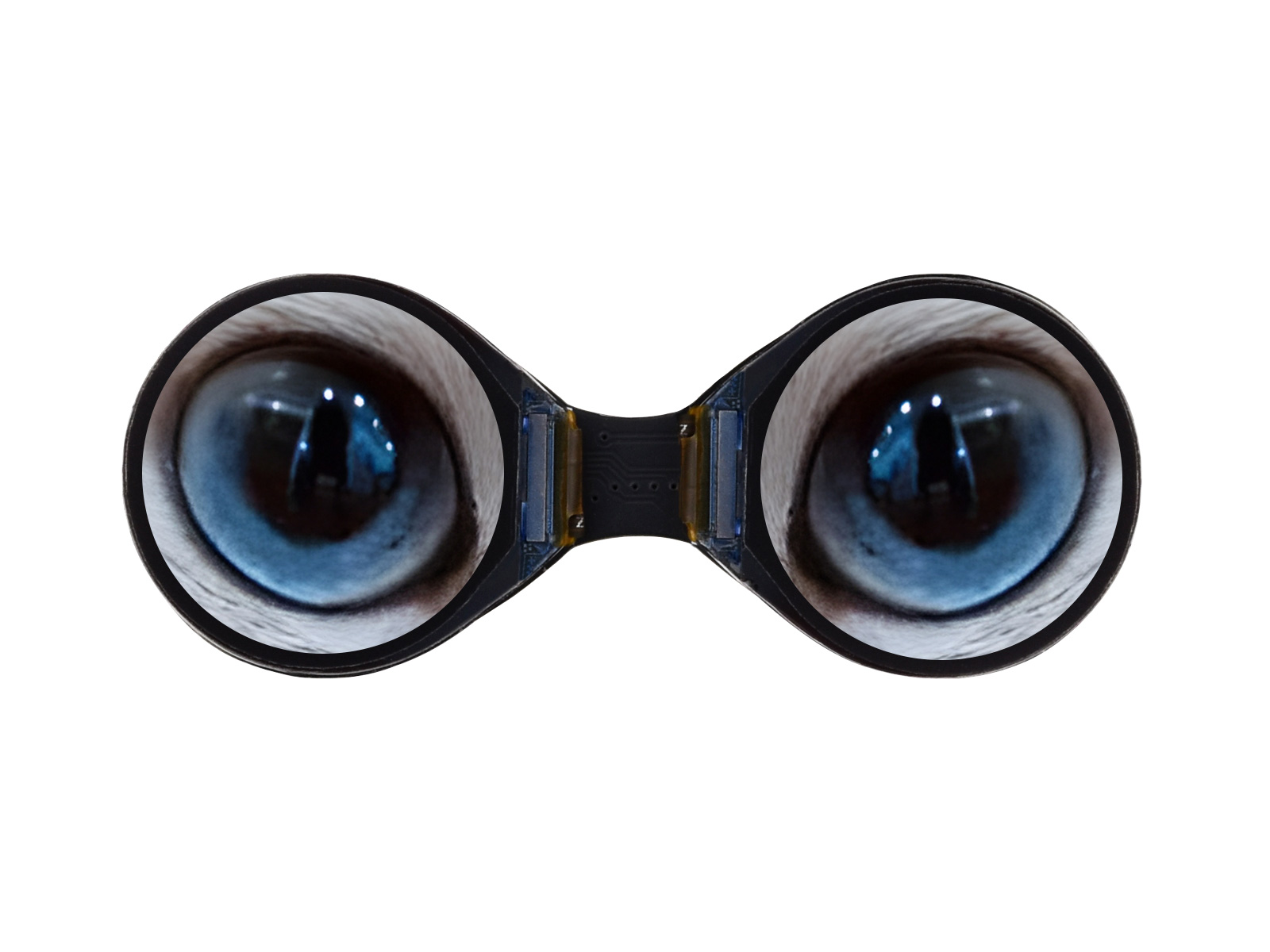

0.71inch Double Eye Round LCD Display Module, 160×160 Resolution, SPI Interface, 65K Colors0.71inch Double Eye LCD ModuleIPS Panel, 160×160 Resolution, Embedded GC9D01 Driver, Using SPI BusSize0.71"Resolution160×160Display Color65K colorsDisplay PanelIPSInterfaceSPIDriverGC9D01Features at a glanceThe double eye LCD module consists of two 0.71inch round LCD displays, IPS panel, wide viewing angle160×160 resolution, 65K colors, clear and colorful displaying effectSPI interface, minimizes required IO pins, supports controller boards like ESP32 / ArduinoSpecificationsOperating voltage3.3V / 5VResolution160 × 160 pixelsCommunication InterfaceSPIDisplay size18 × 18 (mm)Display PanelIPSPixel pitch37.5 × 112.5 (μm)DriverGC9D01Dimensions20.00×51.00 (mm)Controlled via SPI Bussupports controller boards like ESP32 / Arduinousage example* for reference only, please refer to the Package Content for detailed part listOutline dimensionsResources & ServicesWiki:www.waveshare.com/wiki/0.71inch_DualEye_LCD_ModuleSelection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.Lieferumfang0.71inch DualEye LCD Module x1SH1.0 11PIN cable x1Convex lens (2pcs) x1123

0.71inch Round LCD Display Module, 160×160 Resolution, SPI Interface, 65K colors0.71inch LCD Display ModuleIPS Panel, 160×160 Resolution, Embedded GC9D01 Driver, Using SPI BusSize0.71"Resolution160×160Display Color65K colorsDisplay PanelIPSInterfaceSPIDriverGC9D01Features at a glanceAdopts 0.71inch round LCD display, IPS panel, wide viewing angle160×160 resolution, 65K colors, clear and colorful displaying effectSPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi Pico / ESP32 / ArduinoSpecificationsOperating voltage3.3V / 5VResolution160 × 160 pixelsCommunication Interface4-wire SPIDisplay size18 × 18 (mm)Display PanelIPSPixel pitch37.5 × 112.5 (μm)DriverGC9D01Dimensions20.12 × 22.3 (mm)Controlled via SPI Bussupports controller boards like Raspberry Pi Pico / ESP32 / ArduinoHardware connection* for reference only, please refer to the Package Content for detailed part listOutline dimensionsResources & ServicesWiki:www.waveshare.com/wiki/0.71inch_LCD_ModuleSelection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.Lieferumfang0.71inch LCD Module x1SH1.0 8PIN cable x1Convex lens x1123

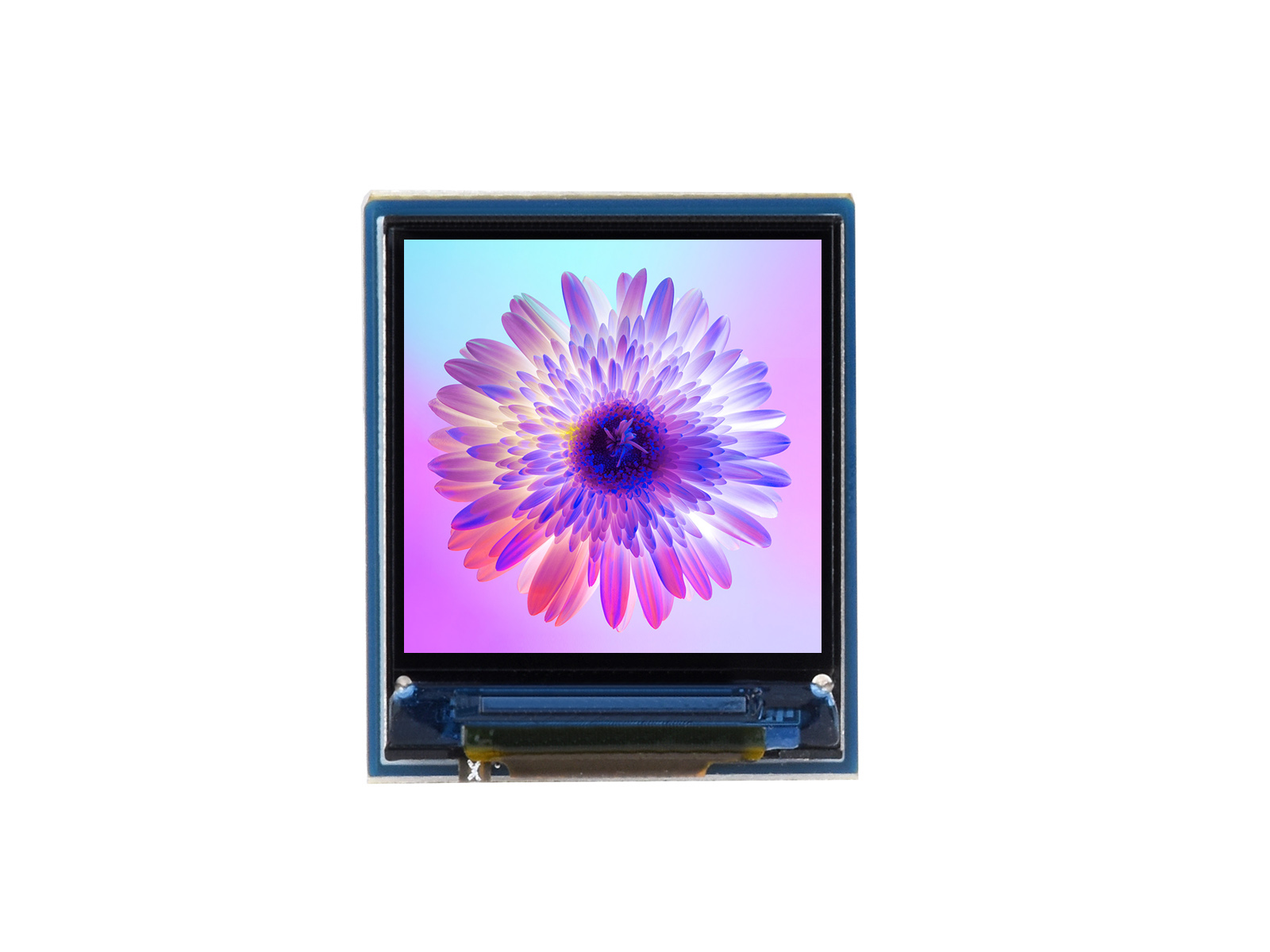

0.85inch LCD Display Module, IPS Panel, 128×128 Resolution, SPI Interface, 65K colors0.85inch LCD Display ModuleEmbedded GC9107 Driver, Using SPI BusComes with examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson seriesSize0.85"Resolution128×128Display Color65K RGBInterfaceSPIDriverGC9107Features at a glance128×128 resolution, 65K RGB colors, clear and colorful displaying effectSPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson seriesComes with development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series)SpecificationsOperating voltage3.3VResolution128 × 128 pixelsCommunication Interface4-wire SPIDisplay size15.21×15.21mmDisplay PanelIPSPixel pitch39.6×118.8umDriverGC9107Dimensions19.0×22.5mmControlled via SPI Bussupports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson seriesHardware connectionconnecting with Raspberry Piconnecting with Arduino boardconnecting with STM32Usage Example* for reference only, please refer to the Package Content for the detailed part list.Product showOutline dimensionsResources & ServicesWiki:www.waveshare.com/wiki/0.85inch_LCD_ModuleSelection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.Lieferumfang0.85inch LCD Module x1MX1.25 8PIN cable x112

0.95inch RGB OLED, SPI interface, curved/horizontal pinheaderKey ParametersDriver Chip1331InterfaceSPIResolution96×64Display Size0.95inchColors65K colorfulVisible Angle>160°Operating Temp. (℃)-20~70Storage Temp. (℃)-30~80Operating Voltage3.3V / 5VApplicabilityHardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32InterfacePIN NO.SYMBOLDESCRIPTION1VCCPower positive (3.3~5V power input)2GNDGround3NCNC4DINData input5CLKClock signal input6CSChip selection, low active7D/CCommand signal, low level for command, high level for data8RESReset signal, low activeOrdering InfoThe 0.95inch RGB OLED provides 2 options for the onboard pinheader:0.95inch RGB OLED (A): curved/horizontal pinheader0.95inch RGB OLED (B): straight/vertical pinheaderDownloadsDevelopment resources: demo codes, schematic, datasheets, etc.Wiki:www.waveshare.com/wiki/0.95inch_RGB_OLED_(A)PhotosDimensionSelection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.Lieferumfang0.95inch RGB OLED (A) x 1

0.95inch RGB OLED, SPI interface, straight/vertical pinheaderKey ParametersDriver Chip1331InterfaceSPIResolution96×64Display Size0.95inchColors65K colorfulVisible Angle>160°Operating Temp. (℃)-20~70Storage Temp. (℃)-30~80Operating Voltage3.3V / 5VApplicabilityHardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32InterfacePIN NO.SYMBOLDESCRIPTION1VCCPower positive (3.3~5V power input)2GNDGround3NCNC4DINData input5CLKClock signal input6CSChip selection, low active7D/CCommand signal, low level for command, high level for data8RESReset signal, low activeOrdering InfoThe 0.95inch RGB OLED provides 2 options for the onboard pinheader:0.95inch RGB OLED (A): curved/horizontal pinheader0.95inch RGB OLED (B): straight/vertical pinheaderDownloadsDevelopment resources: demo codes, schematic, datasheets, etc.Wiki:www.waveshare.com/wiki/0.95inch_RGB_OLED_(B)PhotosDimensionSelection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.Lieferumfang0.95inch RGB OLED (B) x 1

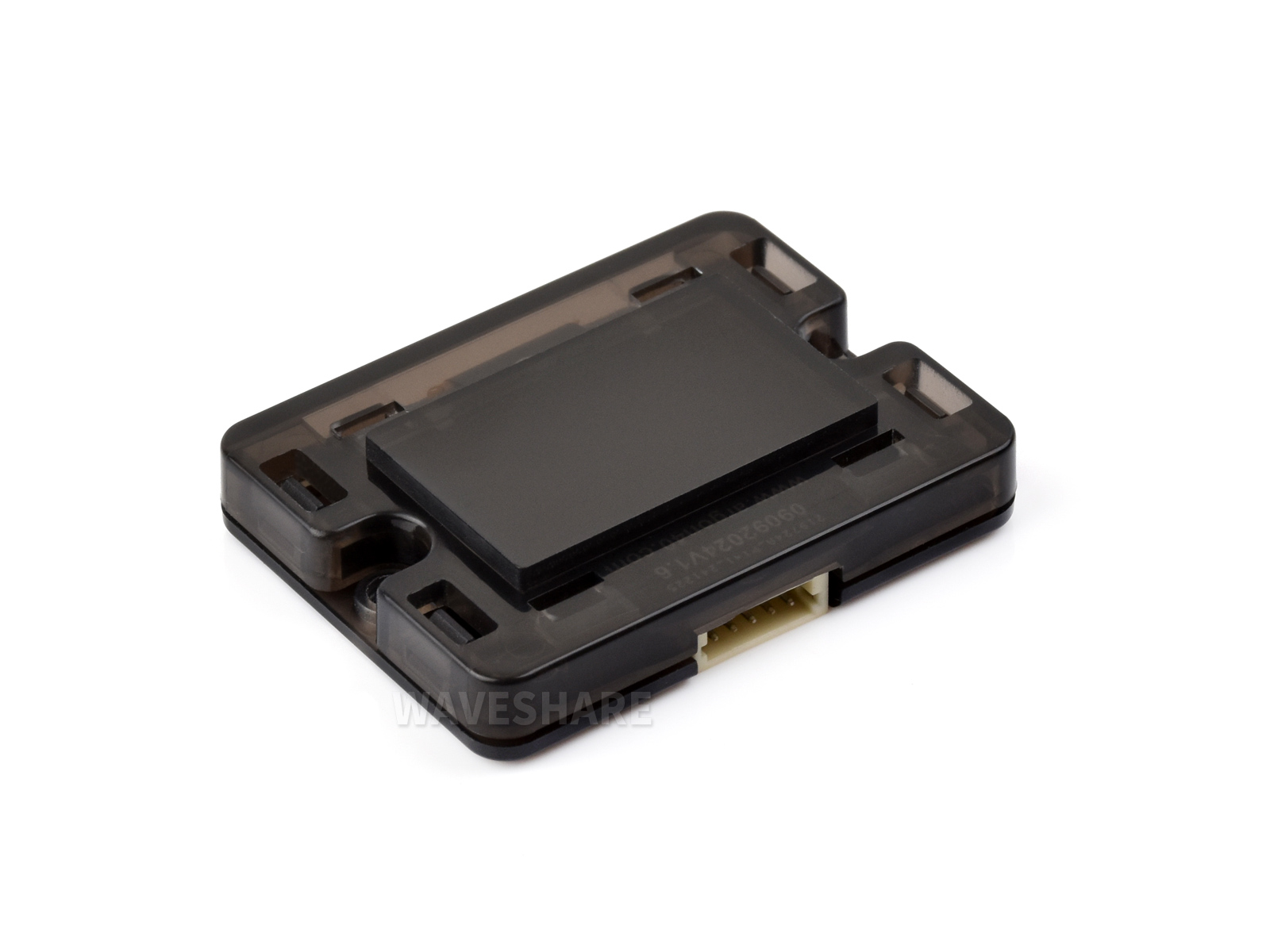

0.96inch Industrial OLED Display Module Designed For Argon ONE V5 Case, 128 × 64 Resolution, Real-Time Display of Raspberry Pi Operating Status0.96inch Industrial OLED Display ModuleDesigned For Argon ONE V5 CaseFeatures This product is an industrial-grade OLED module specifically designed for Argon ONE V5 case. Maximize the Argon ONE V5 case upgradeability with the integration of the OLED display, offering real-time system information at a glance. Keep track of your Raspberry Pi’s performance in real-time with a crisp OLED display that shows essential information such as CPU temperature, system uptime, and IP address, giving you full control over your system's status.SpecificationsSize0.96inchDisplay ColorWhiteresolution128 × 64ConnectivityGPIOAssembly Instructions1. Remove the ABS OLED cover from the Argon ONE V5 top case.2. Install the OLED Module to the top case as shown in the image.3. Connect the OLED module cable to the first 8 GPlO pins of the Raspberry Pi4. Attach the top cover and fully assemble the Argon ONE V5 case.* for reference only, the Argon ONE V5 case is NOT included.Outline dimensionsResources & ServicesWiki:www.waveshare.com/wiki/ARGON-ONE-V5-OLED-ModuleLieferumfangARGON-ONE-V5-OLED-Module x1

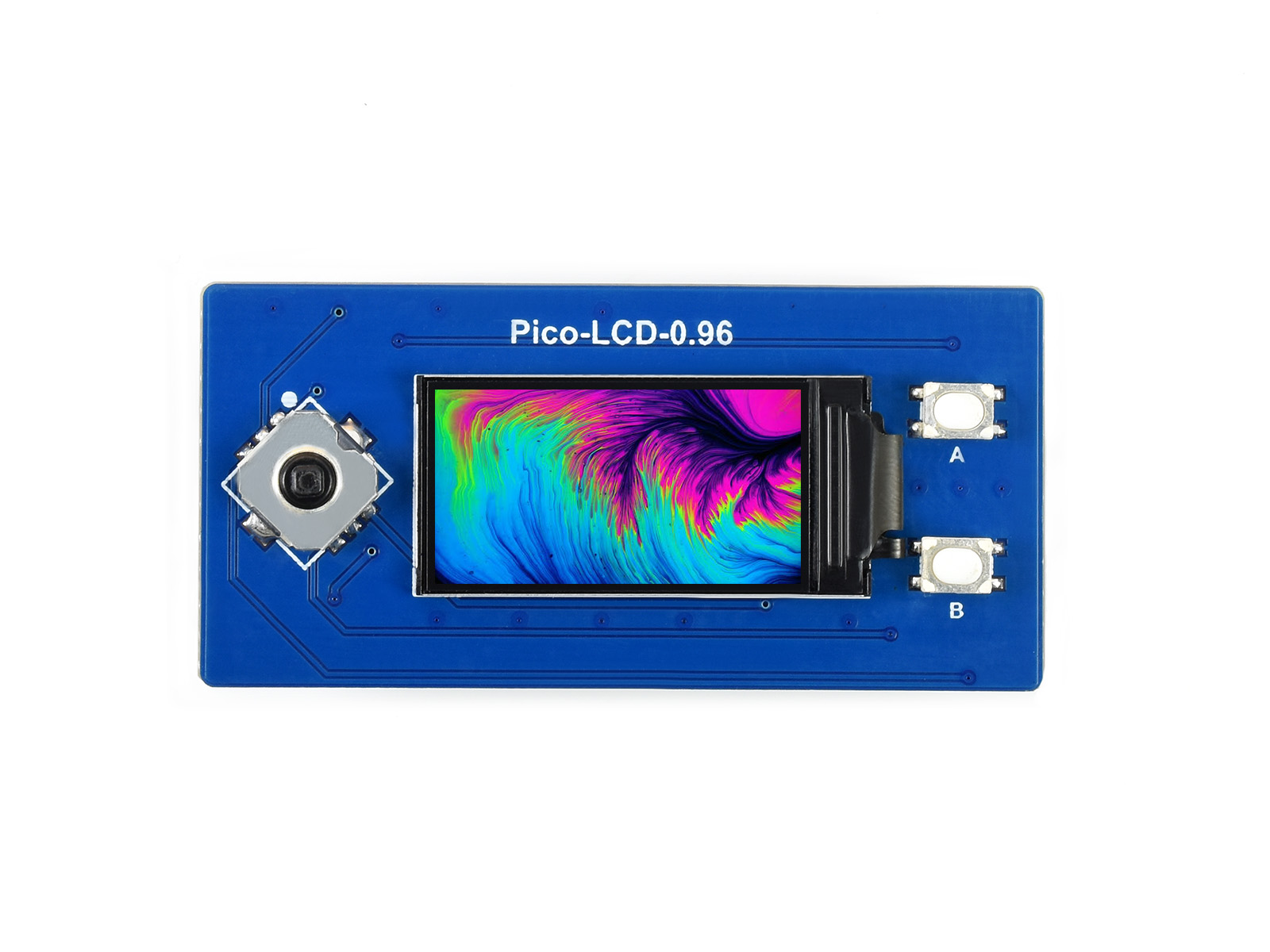

Kurzbeschreibung: 0.96inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 160×80 Pixels, SPI Interface0.96inch LCD Display Module for Raspberry Pi Pico, 65K RGB Colors, 160×80 pixels, SPI Interface0.96" LCD Display Module for Picoembedded ST7735S driver, using SPI busComes with Raspberry Pi Pico C/C++ and MicroPython DemoSize0.96"Resolution160×80Display Color65K RGBInterfaceSPIDisplay PanelIPSDriverST7735SFeatures at a glance160×80 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effectSPI interface, requires minimal IO pins1x joystick and 2x user buttons for easy interactingComes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)SpecificationsOperating voltage2.6 ~ 5.5VResolution160×80 pixelsCommunication Interface4-wire SPIDisplay size21.70 × 10.80mmDisplay PanelIPSPixel size0.1356 × 0.135mmDriverST7735SDimensions52.00 × 25.00mmRaspberry Pi Pico header compatibilityonboard female pin header for direct attaching to Raspberry Pi Pico1x joystick and 2x user buttons for easy interactingRaspberry Pi Pico is NOT included.Pinout definitionOutline dimensionsResources & ServicesWIKI:Pico-LCD-0.96* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.Selection guidePart NumberTypeDisplay colorPixelsDisplay size (mm)BusDriverDimensions (mm)TouchPico-LCD-0.96IPS65K160×8021.70×10.80SPIST7735S52.00×25.00Pico-LCD-1.14IPS65K240×13524.91×14.86SPIST778952.00×25.00Pico-LCD-1.3IPS65K240×24023.40×23.40SPIST778952.00×26.50Pico-LCD-1.44TFT65K128×12825.50×26.50SPIST7735S52.00×26.50Pico-LCD-1.8TFT65K160×12835.04×28.03SPIST7735S52.00×34.50Pico-LCD-2IPS65K320×24040.80×30.60SPIST7789VW52.00×35.00Pico-ResTouch-LCD-2.8IPS262K320×24057.60×43.20SPIST778970.20×50.20√Pico-ResTouch-LCD-3.5IPS65K480×32073.44×48.96SPIILI948886.00×57.20√PICO-DVI-7inchIPS262K1024×600154.21×85.92DVI-164.70×100.00PICO-DVI-10.1inchIPS262K1024×600222.72×125.28DVI-232.72×136.28LieferumfangPico-LCD-0.96 x11

0.96inch OLED, SPI/I2C interfaces, angled/horizontal pinheaderKey ParametersDriver Chip1306Interface3-wire SPI, 4-wire SPI, I2CResolution128*64Display Size0.96inchColors1/4 yellow section, 3/4 blue sectionVisible Angle>160°Operating Temp. (℃)-20~70Storage Temp. (℃)-30~80Operating Voltage3.3VApplicabilityHardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32InterfacePIN NO.SYMBOLDESCRIPTION1VCCPower positive (3.3 power input)2GNDGround3NCNC4DINData input5CLKClock signal input6CSChip selection, low active7D/CCommand signal, low level for command, high level for data8RESReset signal, low activeHardware ConfigMode/InterfaceBS0/BS1DINSCK3-wire SPI1/0MOSISCLK4-wire SPI0/0I2C0/1SDASCLOrdering InfoThe 0.96inch OLED provides 2 options for the onboard pinheader:0.96inch OLED (A): angled/horizontal pinheader0.96inch OLED (B): straight/vertical pinheaderDimensionDevelopment ResourcesWiki : www.waveshare.com/wiki/0.96inch_OLED_(A)Selection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.Lieferumfang0.96inch OLED (A) x 1

0.96inch OLED (A)

0.96inch OLED, SPI/I2C interfaces, straight/vertical pinheaderKey ParametersDriver Chip1306Interface3-wire SPI, 4-wire SPI, I2CResolution128*64Display Size0.96inchColors1/4 yellow section, 3/4 blue sectionVisible Angle>160°Operating Temp. (℃)-20~70Storage Temp. (℃)-30~80Operating Voltage3.3VApplicabilityHardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32InterfacePIN NO.SYMBOLDESCRIPTION1VCCPower positive (3.3 power input)2GNDGround3NCNC4DINData input5CLKClock signal input6CSChip selection, low active7D/CCommand signal, low level for command, high level for data8RESReset signal, low activeHardware ConfigMode/InterfaceBS0/BS1DINSCK3-wire SPI1/0MOSISCLK4-wire SPI0/0I2C0/1SDASCLOrdering InfoThe 0.96inch OLED provides 2 options for the onboard pinheader:0.96inch OLED (A): angled/horizontal pinheader0.96inch OLED (B): straight/vertical pinheaderDevelopment ResourcesWiki : www.waveshare.com/wiki/0.96inch_OLED_(B)Selection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.Lieferumfang0.96inch OLED (B) x 1

0.96inch OLED (B)

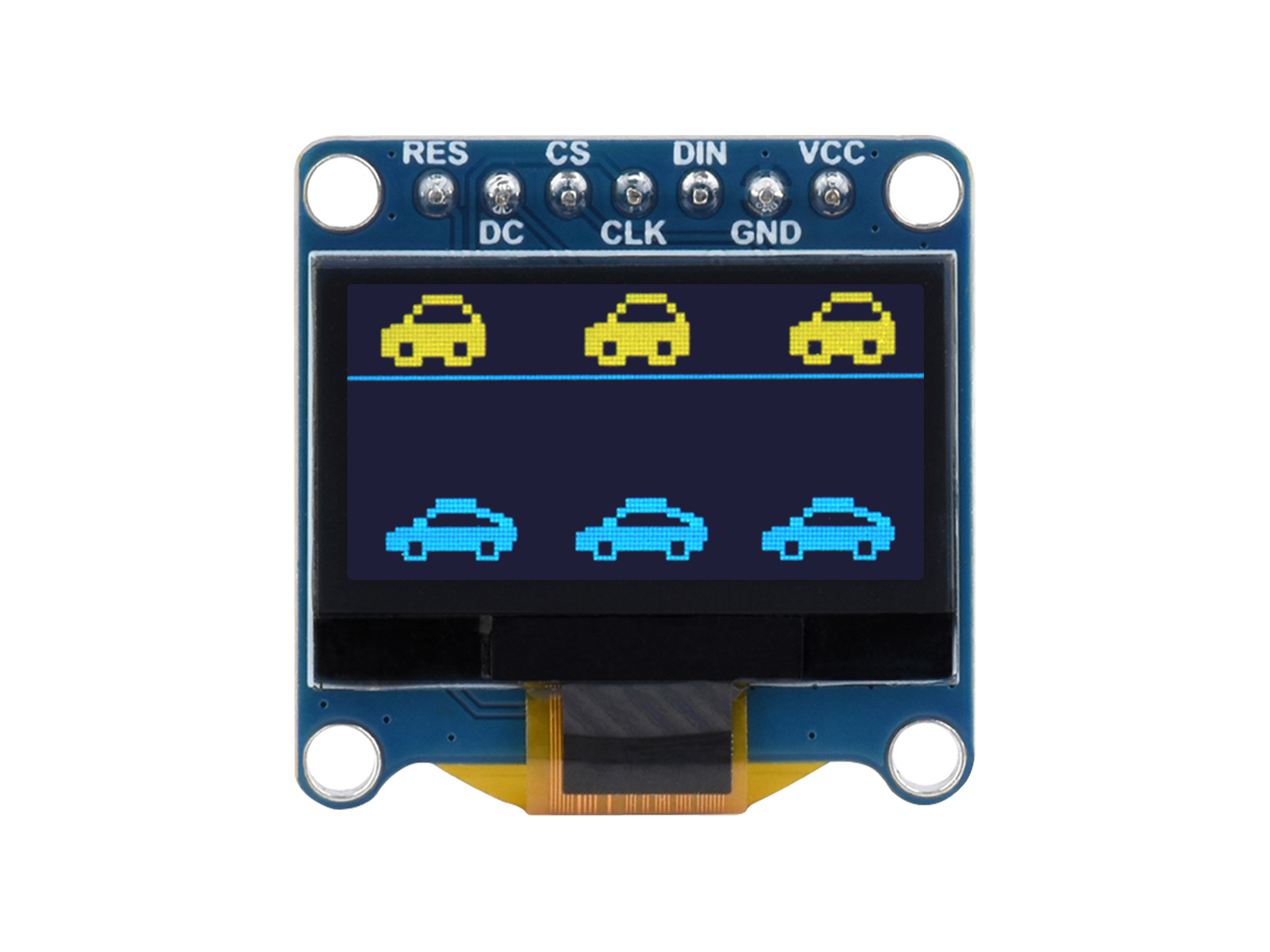

0.96inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication0.96inch OLED Display ModuleEmbedded SSD1315 driver chip, SPI / I2C CommunicationComes with examples for Raspberry Pi, Arduino, STM32, etc. Size0.96"Resolution128×64Display Coloryellow&blue(two blocks)/white/blue (optional)InterfaceSPI/I2CDisplay PanelOLEDDriverSSD1315Version OptionsFeatures at a glanceUltra-narrow bezel, conpact size, with onboard voltage translatorAdopts 4-wire SPI and I2C interfaces, better compatibility, fast data rateComes with online development resources (examples for Raspberry Pi/Arduino/STM32)SpecificationsOperating voltage3.3V / 5VDISPLAY PANELOLEDResolution128 × 64 pixelsPIXEL SIZE0.15 × 0.15 mmCommunication Interface4-wire SPI / I2CDriverSSD1315Display size21.74 × 11.18 mmModule size26.00 × 26.00mmDisplay color(C): upper yellow & lower blue; (D): white; (E): blueControl InterfaceRESReset, low activeDCData/Command selection (high for data, low for command)CSChip selection, low activeCLKClock inputDINData inputGNDGroundVCCPower (3.3V / 5V input)Hardware connectionconnecting with Raspberry Pi via SPI interfaceconnecting with Arduino board via SPI interfaceUsage Examplefor reference only, the STM32 board is NOT included.Product ShowOutline dimensionsResources & ServicesWiki:www.waveshare.com/wiki/0.96inch_OLED_ModuleSelection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.LieferumfangOPTIONS 0.96inch OLED Module x1Jumper cable female-female 7PIN x112

0.96inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication0.96inch OLED Display ModuleEmbedded SSD1315 driver chip, SPI / I2C CommunicationComes with examples for Raspberry Pi, Arduino, STM32, etc. Size0.96"Resolution128×64Display Coloryellow&blue(two blocks)/white/blue (optional)InterfaceSPI/I2CDisplay PanelOLEDDriverSSD1315Version OptionsFeatures at a glanceUltra-narrow bezel, conpact size, with onboard voltage translatorAdopts 4-wire SPI and I2C interfaces, better compatibility, fast data rateComes with online development resources (examples for Raspberry Pi/Arduino/STM32)SpecificationsOperating voltage3.3V / 5VDISPLAY PANELOLEDResolution128 × 64 pixelsPIXEL SIZE0.15 × 0.15 mmCommunication Interface4-wire SPI / I2CDriverSSD1315Display size21.74 × 11.18 mmModule size26.00 × 26.00mmDisplay color(C): upper yellow & lower blue; (D): white; (E): blueControl InterfaceRESReset, low activeDCData/Command selection (high for data, low for command)CSChip selection, low activeCLKClock inputDINData inputGNDGroundVCCPower (3.3V / 5V input)Hardware connectionconnecting with Raspberry Pi via SPI interfaceconnecting with Arduino board via SPI interfaceUsage Examplefor reference only, the STM32 board is NOT included.Product ShowOutline dimensionsResources & ServicesWiki:www.waveshare.com/wiki/0.96inch_OLED_ModuleSelection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.LieferumfangOPTIONS 0.96inch OLED Module x1Jumper cable female-female 7PIN x112

0.96inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication0.96inch OLED Display ModuleEmbedded SSD1315 driver chip, SPI / I2C CommunicationComes with examples for Raspberry Pi, Arduino, STM32, etc. Size0.96"Resolution128×64Display Coloryellow&blue(two blocks)/white/blue (optional)InterfaceSPI/I2CDisplay PanelOLEDDriverSSD1315Version OptionsFeatures at a glanceUltra-narrow bezel, conpact size, with onboard voltage translatorAdopts 4-wire SPI and I2C interfaces, better compatibility, fast data rateComes with online development resources (examples for Raspberry Pi/Arduino/STM32)SpecificationsOperating voltage3.3V / 5VDISPLAY PANELOLEDResolution128 × 64 pixelsPIXEL SIZE0.15 × 0.15 mmCommunication Interface4-wire SPI / I2CDriverSSD1315Display size21.74 × 11.18 mmModule size26.00 × 26.00mmDisplay color(C): upper yellow & lower blue; (D): white; (E): blueControl InterfaceRESReset, low activeDCData/Command selection (high for data, low for command)CSChip selection, low activeCLKClock inputDINData inputGNDGroundVCCPower (3.3V / 5V input)Hardware connectionconnecting with Raspberry Pi via SPI interfaceconnecting with Arduino board via SPI interfaceUsage Examplefor reference only, the STM32 board is NOT included.Product ShowOutline dimensionsResources & ServicesWiki:www.waveshare.com/wiki/0.96inch_OLED_ModuleSelection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.LieferumfangOPTIONS 0.96inch OLED Module x1Jumper cable female-female 7PIN x112

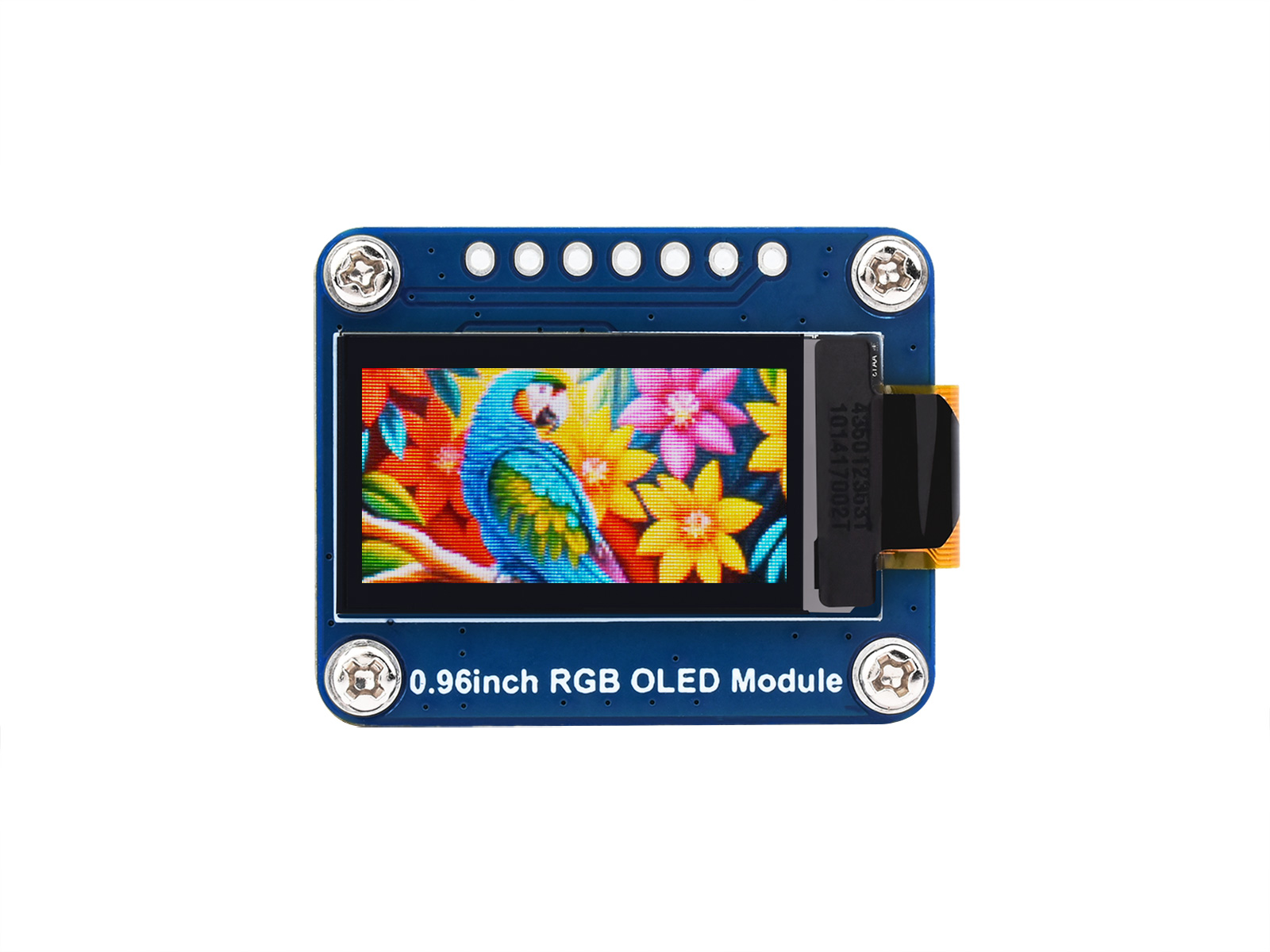

0.96inch RGB OLED Display Module, 64×128 Resolution, 65K Colors, SPI Interface0.96inch OLED Display ModuleEmbedded SSD1357 driver chip, SPI CommunicationComes with examples for Raspberry Pi, Arduino, STM32, etc. Size0.96"Resolution64×128RGB Backlight65K ColorsInterfaceSPIDisplay PanelOLEDDriverSSD1357Features at a glance64×128 resolution OLED display, 65K colors, clear and colorful displaying effectSPI interface, minimizes required IO pinsComes with online development resources (examples for Raspberry Pi/Arduino/STM32)SpecificationsOperating voltage3.3V / 5VResolution64 × 128 pixelsCommunication Interface3/4-wire SPIDisplay size10.862 × 21.736mmDISPLAY PANELOLEDPIXEL SIZE0.0327 × 0.146mmDriverSSD1357Module size32.5 × 26.0mmControl InterfaceVCCPower (3.3V / 5V input)GNDGroundDINSPI data inputCLKSPI clock inputCSChip selection, low activeDCData/Command selection (high for data, low for command)RSTReset, low activeHardware connectionconnecting with Raspberry Piconnecting with Arduino boardUsage Examplefor reference only, the STM32 board is NOT included.Product ShowOutline dimensionsResources & ServicesWiki:www.waveshare.com/wiki/0.96inch_RGB_OLED_ModuleSelection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.Lieferumfang0.96inch RGB OLED Module x1GH1.25 7PIN cable x112

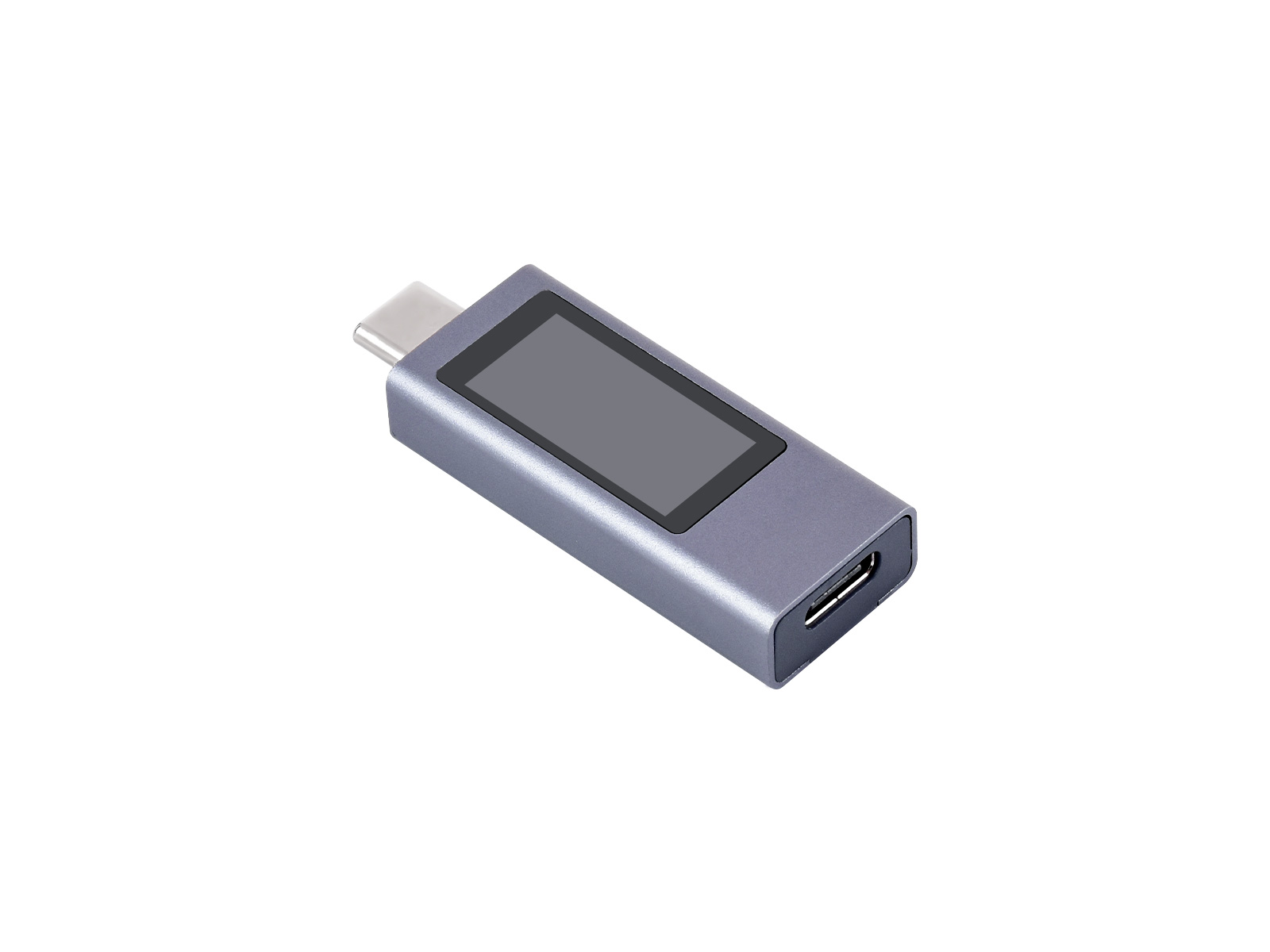

0.96inch USB-C Power Meter, Onboard Type-C ports, Supports Power-off Data Storage And Real-time Status Monitoring, Portable & LightweightUSB Type-C Power Meter0.96inch IPS Display | 4 ~ 30V Input Voltage | CNC Metal CaseFeaturesTheUSB-C Power Meter is a high-performance, multi-purpose USB-C tester, suitable for power supply testing, charging performance verification, and status monitoring of various electronic devices. Supports real-time measurement of key parameters including voltage, current, power, and capacity, with peak recording and power-off data storage capabilities to meet professional engineering testing and daily usage requirements.Bidirectional current measurement for precise monitoring of charging status, supports 0 ~ 12A input current and 4 ~ 30V input voltageReal-time display of charging power and speed, with simultaneous viewing of voltage, current, power, capacity, and other informationSupports capacity recording and power-off data storage, making it easy to view device charging capacity and historical test dataSupports measurement of multiple devices, suitable for voltage, current, power, and capacity monitoring of various USB-C powered devicesOnboard Type-C ports, plug and play, easy connection Two display pages, single-click a onboard button to switch pages, double-click the button to rotate the screen, easy to useAdopts 0.96inch IPS display, supports display orientation rotation for easier reading of charging dataSupports 12A high current connector for stable and reliable performance even under heavy loadsProfessional sampling circuit for precise measurement of voltage and current to ensure reliable test dataCNC aluminum alloy case, dustproof and shockproof, lightweight and portable ( ~ 9.7g net weight)Real-Time Charging Data Monitoring, And Maximum Value RecordingSupports real-time monitoring of voltage, current, and power during charging, automatically records the max values of each parameter, and provides clear test results with visible charging performance*for reference only, please refer to the package content for detailed part list.precise measurement of Bidirectional CurrentSupports bidirectional current measurement for both positive and negative polarities, delivering higher accuracy and more reliable testing*for reference only, please refer to the package content for detailed part list.Onboard Type-C Ports, plug and playSuitable for various USB-C devices, plug and play, easy connection*for reference only, please refer to the package content for detailed part list.Application ScenariosDevice Capacity & power measurement, Supports Power-off Data StorageReal-Time Monitoring of Device Voltage / Current, Key Data at a Glance*for reference only, please refer to the package content for detailed part list.Button Operation InstructionsSingle-click to switch pagesDouble-click to rotate the display orientationLightweight and Portable CNC Metal Case, Dustproof and Shockproof, ~ 9.7g Net Weight, Lightweight and Portable, Effortless to Carry AnywhereData DescriptionVoltage: 4 ~ 30V Current: 0 ~ 12A Timing: 0 ~ 99 hoursPower: 0 ~ 360WCapacity: 0 ~ 99999mAh Record single maximum powerRecord single maximum currentRecord single maximum voltageCurrent direction markerEnergy: 0 ~ 99999WhCPU temperature* This product is not recommended to operate at a 12A peak current for extended periods. outline dimensionsResources & ServicesWiki:www.waveshare.com/wiki/USB-C-Power-MeterLieferumfangUSB-C-Power-Meter x1

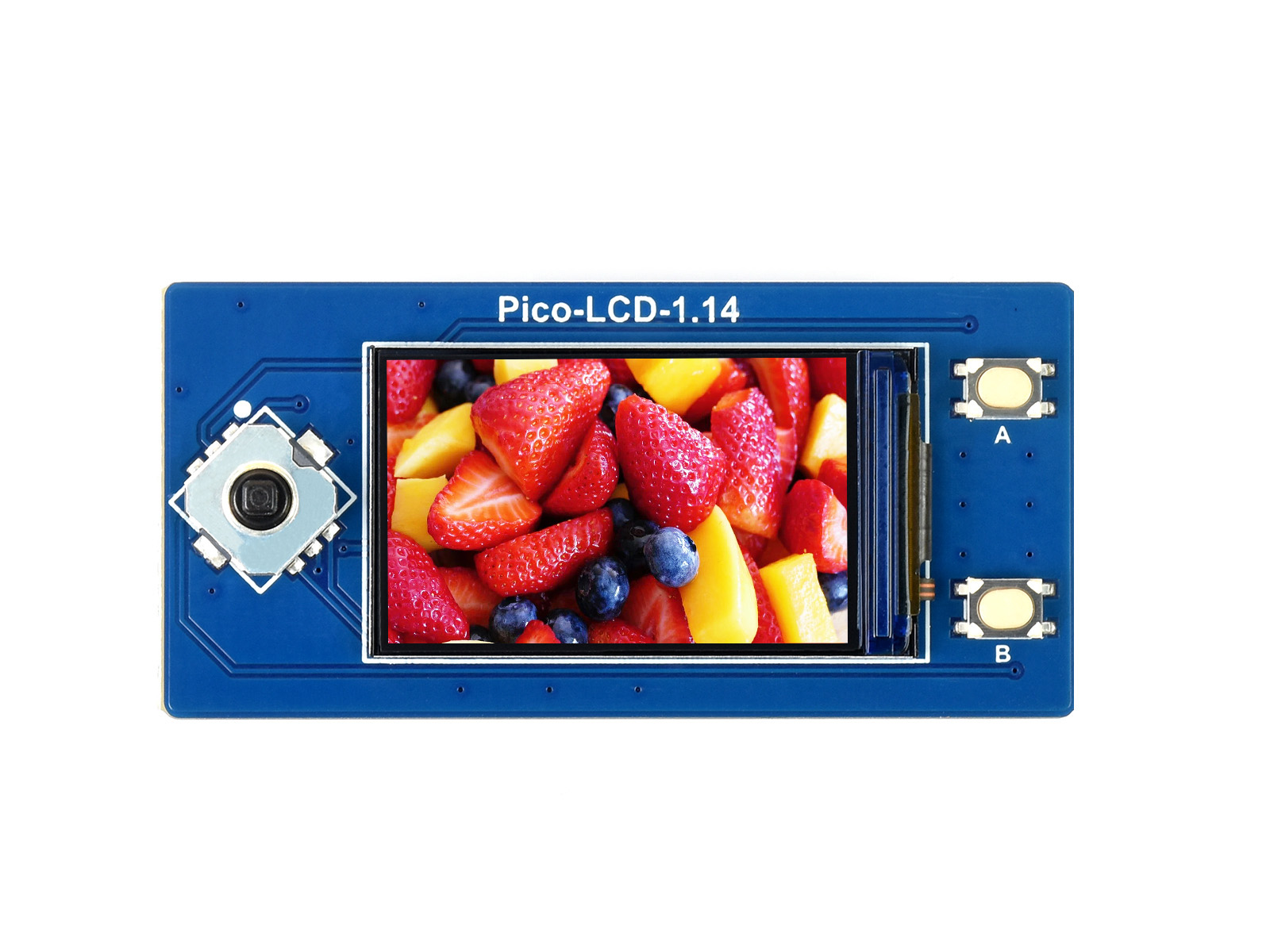

Kurzbeschreibung: 1.14inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 240×135 Pixels, SPI Interface1.14inch LCD Display Module for Raspberry Pi Pico, 65K RGB Colors, 240×135 pixels, SPI Interface1.14" LCD Display Module for Picoembedded ST7789 driver, using SPI busComes with Raspberry Pi Pico C/C++ and MicroPython DemoSize1.14"Resolution240×135Display Color65K RGBInterfaceSPIDisplay PanelIPSDriverST7789Features at a glance240×135 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effectSPI interface, requires minimal IO pins1x joystick and 2x user buttons for easy interactingComes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)SpecificationsOperating voltage2.6 ~ 5.5VResolution240×135 pixelsCommunication Interface4-wire SPIDisplay size24.91 × 14.86mmDisplay PanelIPSPixel size0.1101 × 0.1035mmDriverST7789Dimensions52.00 × 25.00mmRaspberry Pi Pico header compatibilityonboard female pin header for direct attaching to Raspberry Pi Pico1x joystick and 2x user buttons for easy interactingRaspberry Pi Pico is NOT included.Pinout definitionOutline dimensionsResources & ServicesWIKI:Pico-LCD-1.14* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.Selection guidePart NumberTypeDisplay colorPixelsDisplay size (mm)BusDriverDimensions (mm)TouchPico-LCD-0.96IPS65K160×8021.70×10.80SPIST7735S52.00×25.00Pico-LCD-1.14IPS65K240×13524.91×14.86SPIST778952.00×25.00Pico-LCD-1.3IPS65K240×24023.40×23.40SPIST778952.00×26.50Pico-LCD-1.44TFT65K128×12825.50×26.50SPIST7735S52.00×26.50Pico-LCD-1.8TFT65K160×12835.04×28.03SPIST7735S52.00×34.50Pico-LCD-2IPS65K320×24040.80×30.60SPIST7789VW52.00×35.00Pico-ResTouch-LCD-2.8IPS262K320×24057.60×43.20SPIST778970.20×50.20√Pico-ResTouch-LCD-3.5IPS65K480×32073.44×48.96SPIILI948886.00×57.20√PICO-DVI-7inchIPS262K1024×600154.21×85.92DVI-164.70×100.00PICO-DVI-10.1inchIPS262K1024×600222.72×125.28DVI-232.72×136.28LieferumfangPico-LCD-1.14 x11

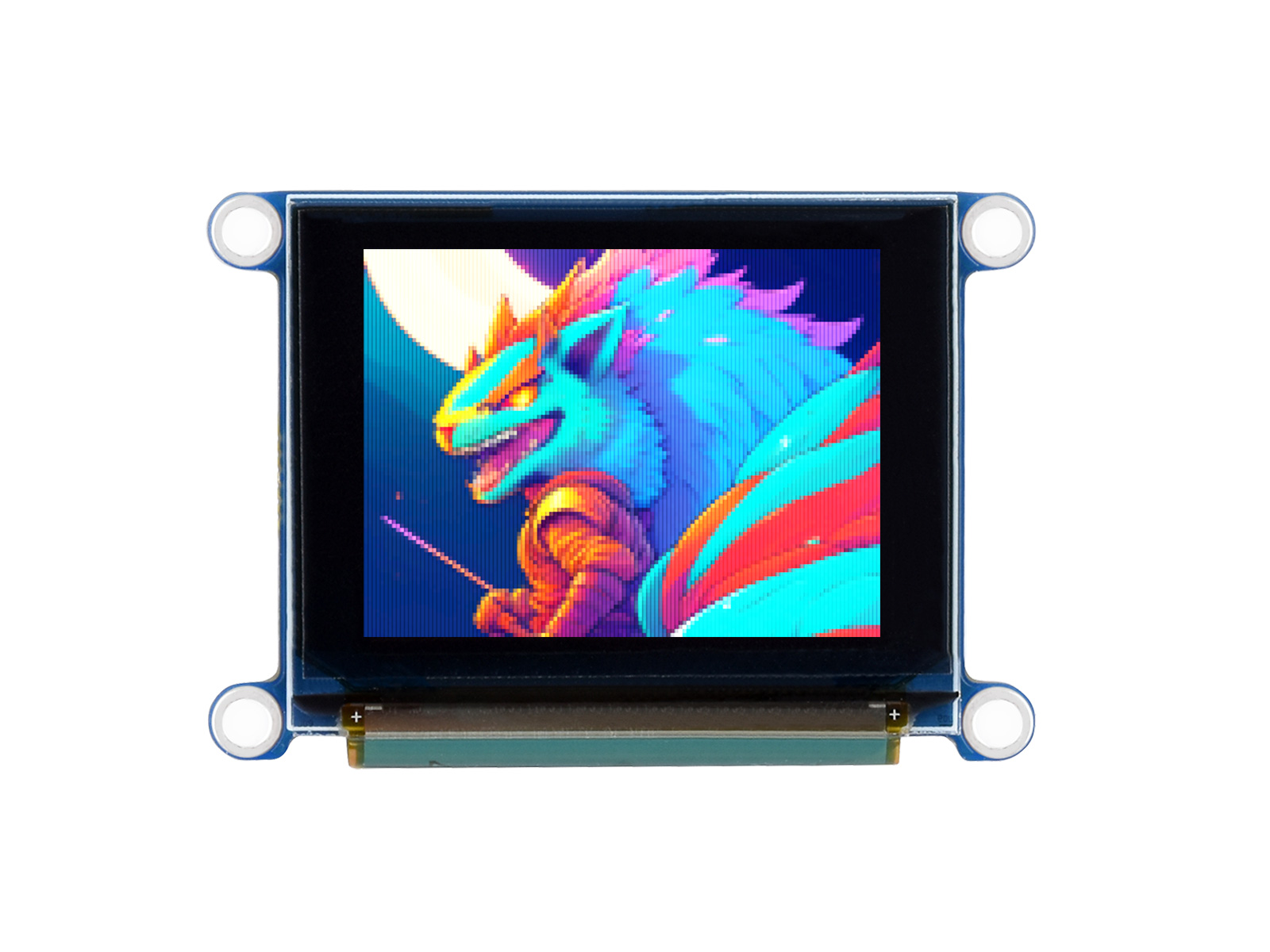

1.27inch RGB OLED Display Module, 128×96 Resolution, 262K Colors, SPI Interface1.27inch OLED Display ModuleEmbedded SSD1351 driver chip, SPI CommunicationComes with examples for Raspberry Pi, Arduino, STM32, etc. Size1.27"Resolution128×96RGB Backlight262K ColorsInterfaceSPIDisplay PanelOLEDDriverSSD1351Features at a glance128×96 resolution OLED display, 262K colors, clear and colorful displaying effectSPI interface, minimizes required IO pinsComes with online development resources (examples for Raspberry Pi/Arduino/STM32)SpecificationsOperating voltage3.3V / 5VResolution128 × 96 pixelsCommunication Interface3/4-wire SPIDisplay size25.708 × 19.28mmDISPLAY PANELOLEDPIXEL SIZE0.047 × 0.185mmDriverSSD1351Module size42.2 × 29.0mmControl InterfaceRESReset, low activeDCData/Command selection (high for data, low for command)CSChip selection, low activeCLKClock inputDINData inputGNDGroundVCCPower (3.3V / 5V input)Hardware connectionconnecting with Raspberry Piconnecting with Arduino boardUsage Examplefor reference only, the STM32 board is NOT included.Product ShowOutline dimensionsResources & ServicesWiki:www.waveshare.com/wiki/1.27inch_RGB_OLED_ModuleSelection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.Lieferumfang1.27inch RGB OLED Module x1GH1.25 7PIN cable x112

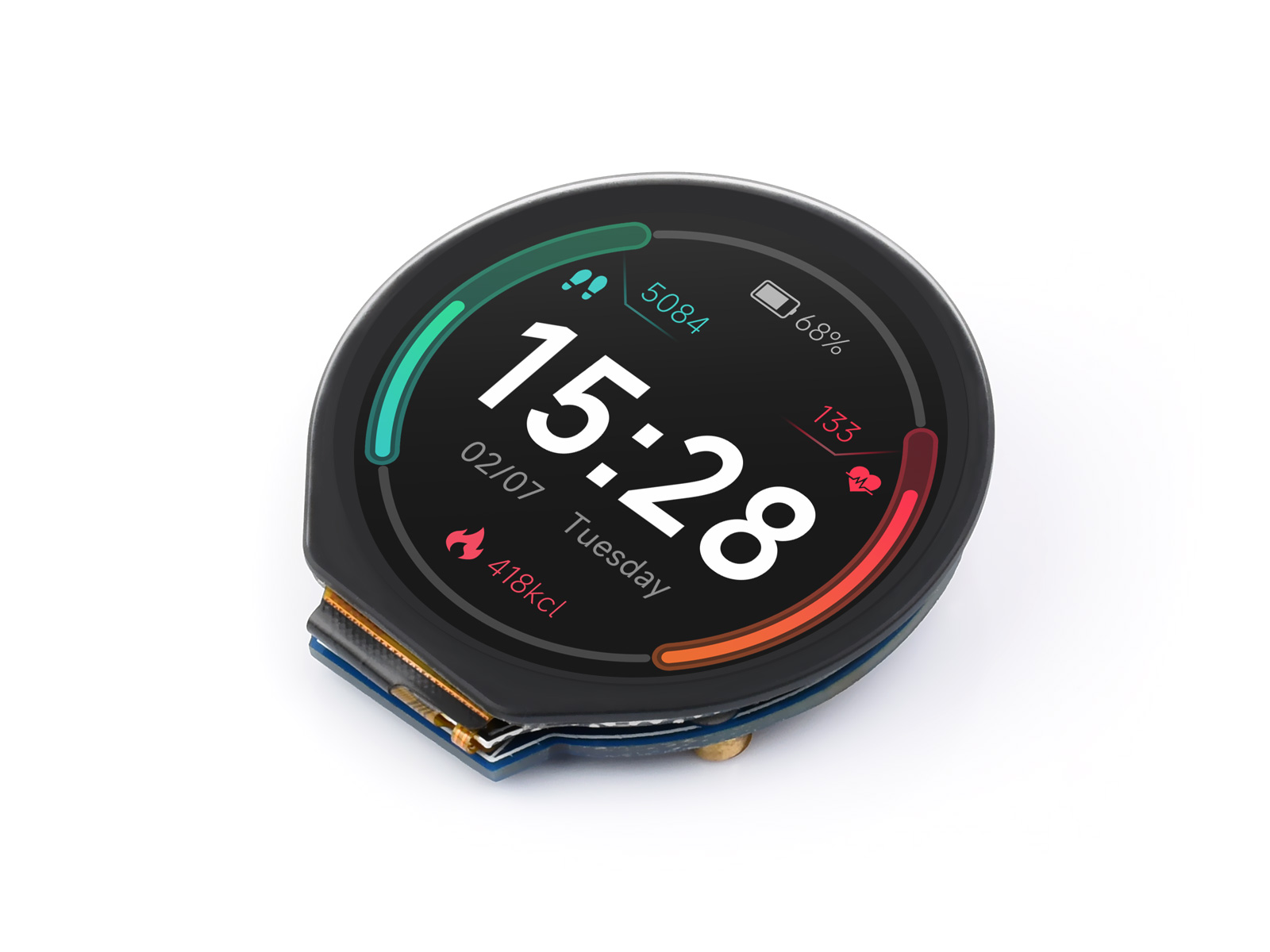

1.28inch Round LCD Display Module with Touch panel, 240×240 Resolution, IPS, SPI And I2C Communication1.28inch Touch LCD Display ModuleEmbedded GC9A01 driver and CST816S capacitive touch control chip Using SPI and I2C Communication respectivelyComes with examples for Raspberry Pi, Raspberry Pi Pico, Arduino, STM32, etc.Size1.28"Resolution240×240Display Color65KDisplay PanelIPSDisplay DriverGC9A01Display InterfaceSPITouch DriverCST816STouch InterfaceI2CFeatures at a glance240×240 resolution, 65K colors, clear and colorful displaying effectHigh touch screen transmittance, fast response and long lifetimeEmbedded GC9A01 driver chip and CST816S capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi/Raspberry Pi Pico/Arduino/STM32Comes with online development resources and manual (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32)SpecificationsOperating voltage3.3V / 5VResolution240 × 240 pixelsDisplay DriverGC9A01Display Interface4-wire SPITouch DriverCST816STouch InterfaceI2CDISPLAY PANELIPSTouch TypeCapacitiveDisplay sizeΦ32.4mmPIXEL SIZE0.135 × 0.135 mmModule size39.89 × 38.50mm Φ38.50mmSmall Size, touch more possibilitiesSuitable for various smart devices development, can realize human-computer interaction functionControl InterfacesFor Use With Controller Boards Like Raspberry Pi / Raspberry Pi Pico / Arduino / STM32VCCPower (3.3V / 5V input)GNDGroundMISOSPI MISO pinMOSISPI MOSI pinSCLKSPI Clock pinLCD_CSLCD Chip Selection, low activeLCD_DCLCD Data/Command selection (high for data, low for command)LCD_RSTLCD Reset, low activeLCD_BLLCD BacklightTP_SDATP Data pinTP_SCLTP Clock pinTP_INTTP Interrupt pinTP_RSTTP Reset, low activePin Connection Reference1.28inch Touch LCDRaspberry Pi (BCM)PicoArduinoSTM32VCC3.3V3.3V5V3.3VGNDGNDGNDGNDGNDMISO9GP1212PA6MOSI10GP1111PA7SCLK11GP1013PA5LCD_CS8GP910PB6LCD_DC25GP147PA8LCD_RST27GP88PA9LCD_BL18GP159PC7TP_SDA2GP6SDAPB9TP_SCL3GP7SCLPB8TP_INT4GP173PB10TP_RST17GP164PA10Usage ExampleProduct ShowOutline dimensionsResources & ServicesWiki:www.waveshare.com/wiki/1.28inch_Touch_LCDSelection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.Lieferumfang1.28inch Touch LCD x1GH1.25 13Pin cable x112

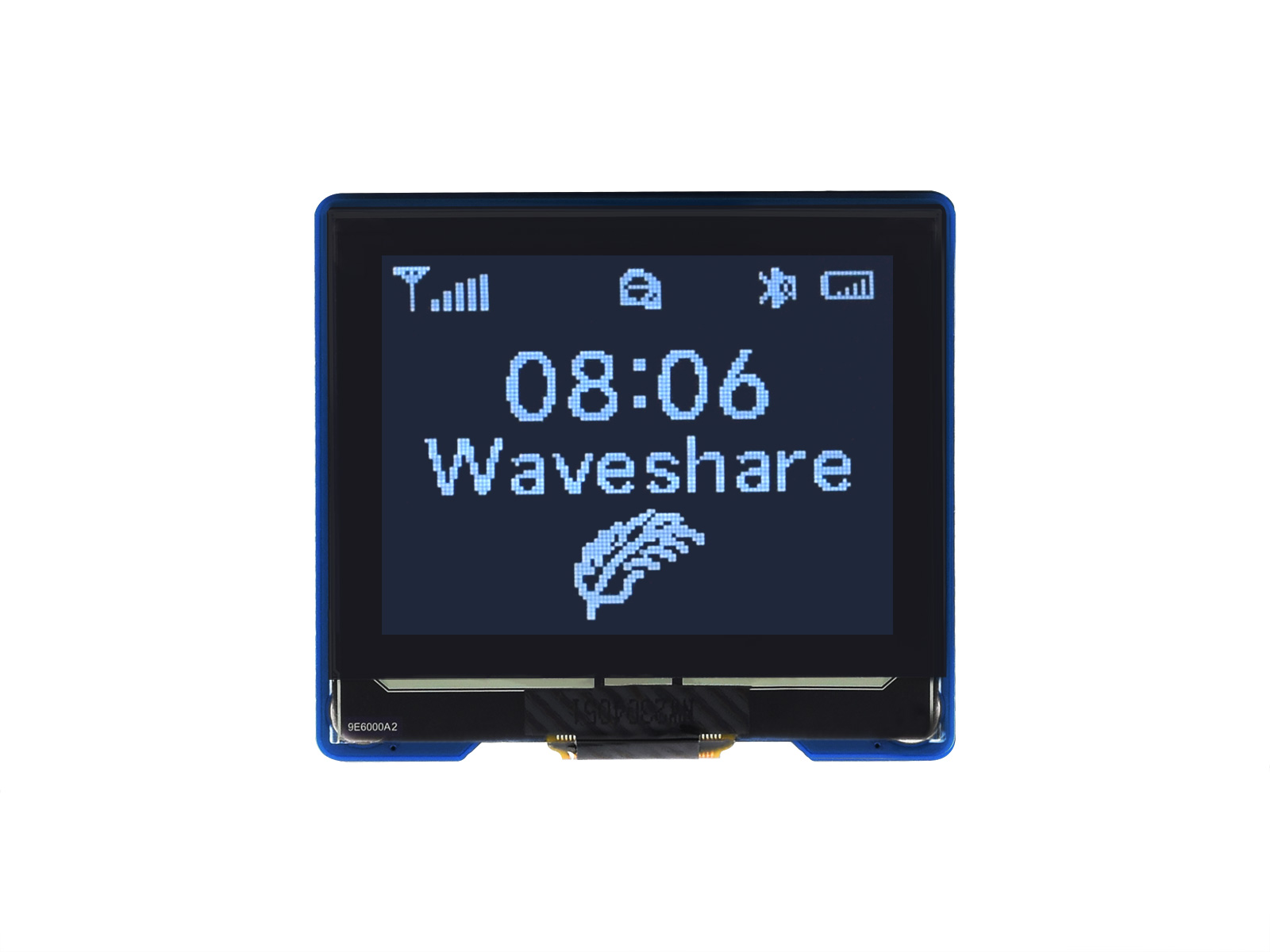

1.32inch OLED Display Module, 128×96 Resolution, 16 Gray Scale, SPI / I2C Communication1.32inch OLED Display ModuleEmbedded SSD1327 driver chip, SPI / I2C CommunicationComes with examples for Raspberry Pi, Arduino, STM32, etc. Size1.32"Resolution128×96Display ColorBlack/WhiteGrey Scale16Display PanelOLEDDriverSSD1327InterfaceSPI/I2CConnectorGH1.25 7PinFeatures at a glanceUltra-narrow bezel, conpact size, with onboard voltage translatorAdopts 4-wire SPI and I2C interfaces, better compatibility, fast data rateComes with online development resources (examples for Raspberry Pi/Arduino/STM32)SpecificationsOperating voltage3.3V / 5VDISPLAY PANELOLEDResolution128 × 96 pixelsPIXEL SIZE0.19 × 0.19 mmCommunication Interface4-wire SPI / I2CDriverSSD1327Display size26.86 × 20.14mmModule size34.30 × 30.50mmControl InterfaceRESReset, low activeDCData/Command selection (high for data, low for command)CSChip selection, low activeCLKClock inputDINData inputGNDGroundVCCPower (3.3V / 5V input)Hardware connectionconnecting with Raspberry Pi via SPI interfaceconnecting with Arduino board via SPI interfaceUsage Examplefor reference only, the STM32 board is NOT included.Product ShowOutline dimensionsResources & ServicesWiki:www.waveshare.com/wiki/1.32inch_OLED_ModuleSelection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.Lieferumfang1.32inch OLED Module x1GH1.25 7PIN cable x112

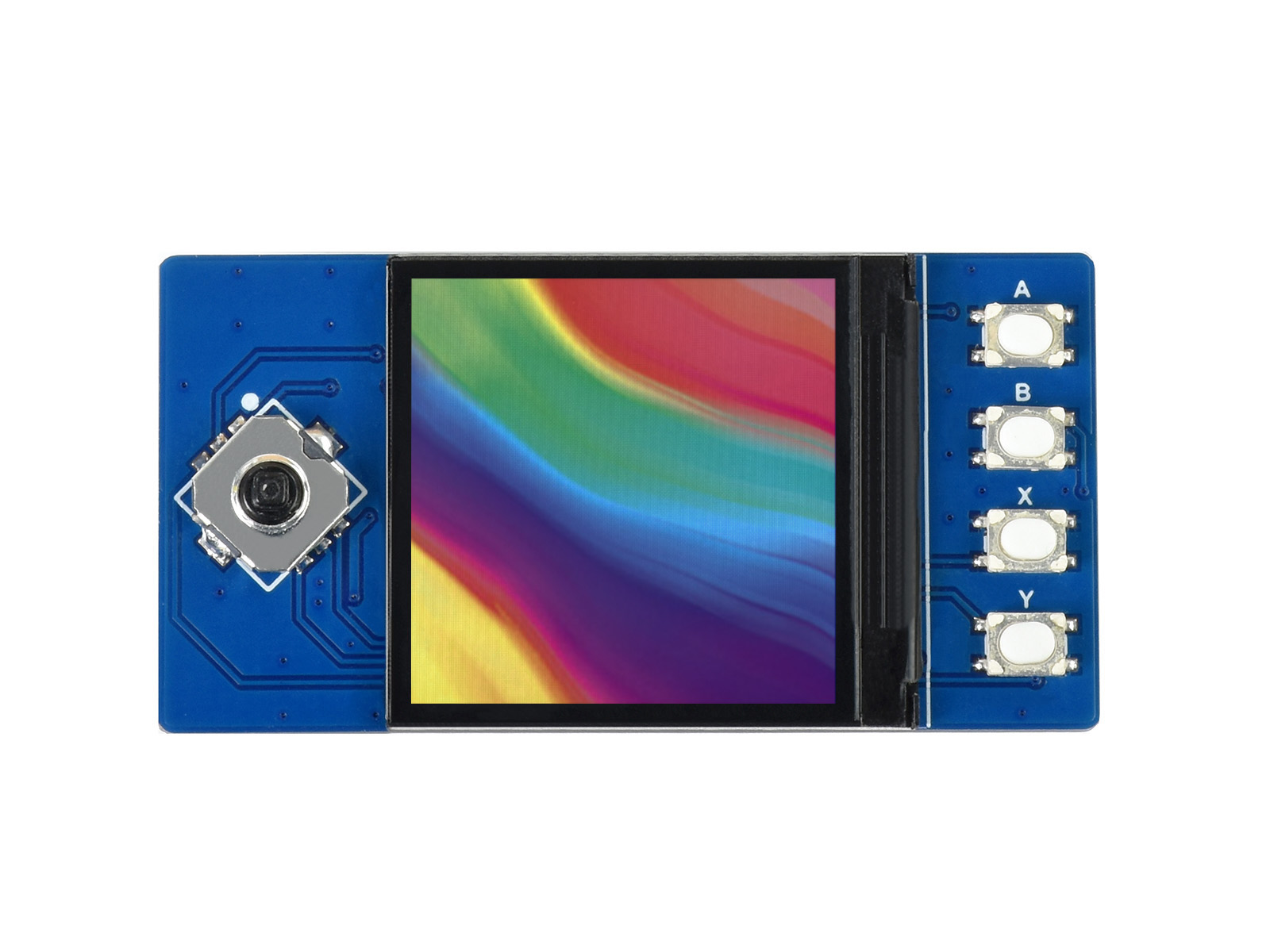

Kurzbeschreibung: 1.3inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 240×240 Pixels, SPI Interface1.3inch LCD Display Module for Raspberry Pi Pico, 65K RGB Colors, 240×240 pixels, SPI Interface1.3" LCD Display Module for Picoembedded ST7789 driver, using SPI busComes with Raspberry Pi Pico C/C++ and MicroPython DemoSize1.3"Resolution240×240Display Color65K RGBInterfaceSPIDisplay PanelIPSDriverST7789Features at a glance240×240 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effectSPI interface, requires minimal IO pins1x joystick and 4x user buttons for easy interactingComes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)SpecificationsOperating voltage2.6 ~ 5.5VResolution240×240 pixelsCommunication Interface4-wire SPIDisplay size23.40 × 23.40mmDisplay PanelIPSPixel size0.0975 × 0.0975mmDriverST7789Dimensions52.00 × 26.50mmRaspberry Pi Pico header compatibilityonboard female pin header for direct attaching to Raspberry Pi Pico1x joystick and 4x user buttons for easy interactingRaspberry Pi Pico is NOT included.Pinout definitionOutline dimensionsResources & ServicesWIKI:Pico-LCD-1.3* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.Selection guidePart NumberTypeDisplay colorPixelsDisplay size (mm)BusDriverDimensions (mm)TouchPico-LCD-0.96IPS65K160×8021.70×10.80SPIST7735S52.00×25.00Pico-LCD-1.14IPS65K240×13524.91×14.86SPIST778952.00×25.00Pico-LCD-1.3IPS65K240×24023.40×23.40SPIST778952.00×26.50Pico-LCD-1.44TFT65K128×12825.50×26.50SPIST7735S52.00×26.50Pico-LCD-1.8TFT65K160×12835.04×28.03SPIST7735S52.00×34.50Pico-LCD-2IPS65K320×24040.80×30.60SPIST7789VW52.00×35.00Pico-ResTouch-LCD-2.8IPS262K320×24057.60×43.20SPIST778970.20×50.20√Pico-ResTouch-LCD-3.5IPS65K480×32073.44×48.96SPIILI948886.00×57.20√PICO-DVI-7inchIPS262K1024×600154.21×85.92DVI-164.70×100.00PICO-DVI-10.1inchIPS262K1024×600222.72×125.28DVI-232.72×136.28LieferumfangPico-LCD-1.3 x11

1.3inch OLED, SPI/I2C interfaces, curved/horizontal pinheaderKey ParametersDriver ChipSH1106Interface3-wire SPI, 4-wire SPI, I2CResolution128*64Display Size1.3inchColorsBlueVisible Angle>160°Operating Temp. (℃)-30~70Storage Temp. (℃)-30~80Operating Voltage3.3V / 5VApplicabilityHardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32InterfacePIN NO.SYMBOLDESCRIPTION1VCCPower positive (3.3~5V power input)2GNDGround3NCNC4DINData input5CLKClock signal input6CSChip selection, low active7D/CCommand signal, low level for command, high level for data8RESReset signal, low activeHardware ConfigMode/InterfaceBS0/BS1DINSCK3-wire SPI1/0MOSISCLK4-wire SPI0/0I2C0/1SDASCLOrdering InfoThe 1.3inch OLED provides 2 options for the onboard pinheader:1.3inch OLED (A): curved/horizontal pinheader1.3inch OLED (B): straight/vertical pinheaderDownloadsDevelopment resources: demo codes, schematic, datasheets, etc.Wiki:www.waveshare.com/wiki/1.3inch_OLED_(A)PhotosDimensionSelection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.Lieferumfang1.3inch OLED (A) x 1

1.3inch OLED, SPI/I2C interfaces, straight/vertical pinheaderKey ParametersDriver ChipSH1106Interface3-wire SPI, 4-wire SPI, I2CResolution128*64Display Size1.3inchColorsBlueVisible Angle>160°Operating Temp. (℃)-30~70Storage Temp. (℃)-30~80Operating Voltage3.3V / 5VApplicabilityHardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32InterfacePIN NO.SYMBOLDESCRIPTION1VCCPower positive (3.3~5V power input)2GNDGround3NCNC4DINData input5CLKClock signal input6CSChip selection, low active7D/CCommand signal, low level for command, high level for data8RESReset signal, low activeHardware ConfigMode/InterfaceBS0/BS1DINSCK3-wire SPI1/0MOSISCLK4-wire SPI0/0I2C0/1SDASCLOrdering InfoThe 1.3inch OLED provides 2 options for the onboard pinheader:1.3inch OLED (A): curved/horizontal pinheader1.3inch OLED (B): straight/vertical pinheaderDownloadsDevelopment resources: demo codes, schematic, datasheets, etc.Wiki:www.waveshare.com/wiki/1.3inch_OLED_(B)PhotosDimensionSelection GuidePart NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.Lieferumfang1.3inch OLED (B) x 1
