1.32inch OLED Display Module, 128×96 Resolution, 16 Gray Scale, SPI / I2C Communication

Skip image gallery
1,32-Zoll-OLED-Displaymodul, 128×96 Auflösung, 16 Graustufen, SPI-/I2C-Kommunikation
1,32-Zoll-OLED-Displaymodul, 128×96 Auflösung, 16 Graustufen, SPI-/I2C-Kommunikation
1,32-Zoll-OLED-Displaymodul, 128×96 Auflösung, 16 Graustufen, SPI-/I2C-Kommunikation
1,32-Zoll-OLED-Displaymodul, 128×96 Auflösung, 16 Graustufen, SPI-/I2C-Kommunikation
1,32-Zoll-OLED-Displaymodul, 128×96 Auflösung, 16 Graustufen, SPI-/I2C-Kommunikation
1,32-Zoll-OLED-Displaymodul, 128×96 Auflösung, 16 Graustufen, SPI-/I2C-Kommunikation
1,32-Zoll-OLED-Displaymodul, 128×96 Auflösung, 16 Graustufen, SPI-/I2C-Kommunikation
1,32-Zoll-OLED-Displaymodul, 128×96 Auflösung, 16 Graustufen, SPI-/I2C-Kommunikation

€6.53*

Prices incl. VAT plus shipping costs

Stk
Product number: WSAL24777

Product information "1.32inch OLED Display Module, 128×96 Resolution, 16 Gray Scale, SPI / I2C Communication"

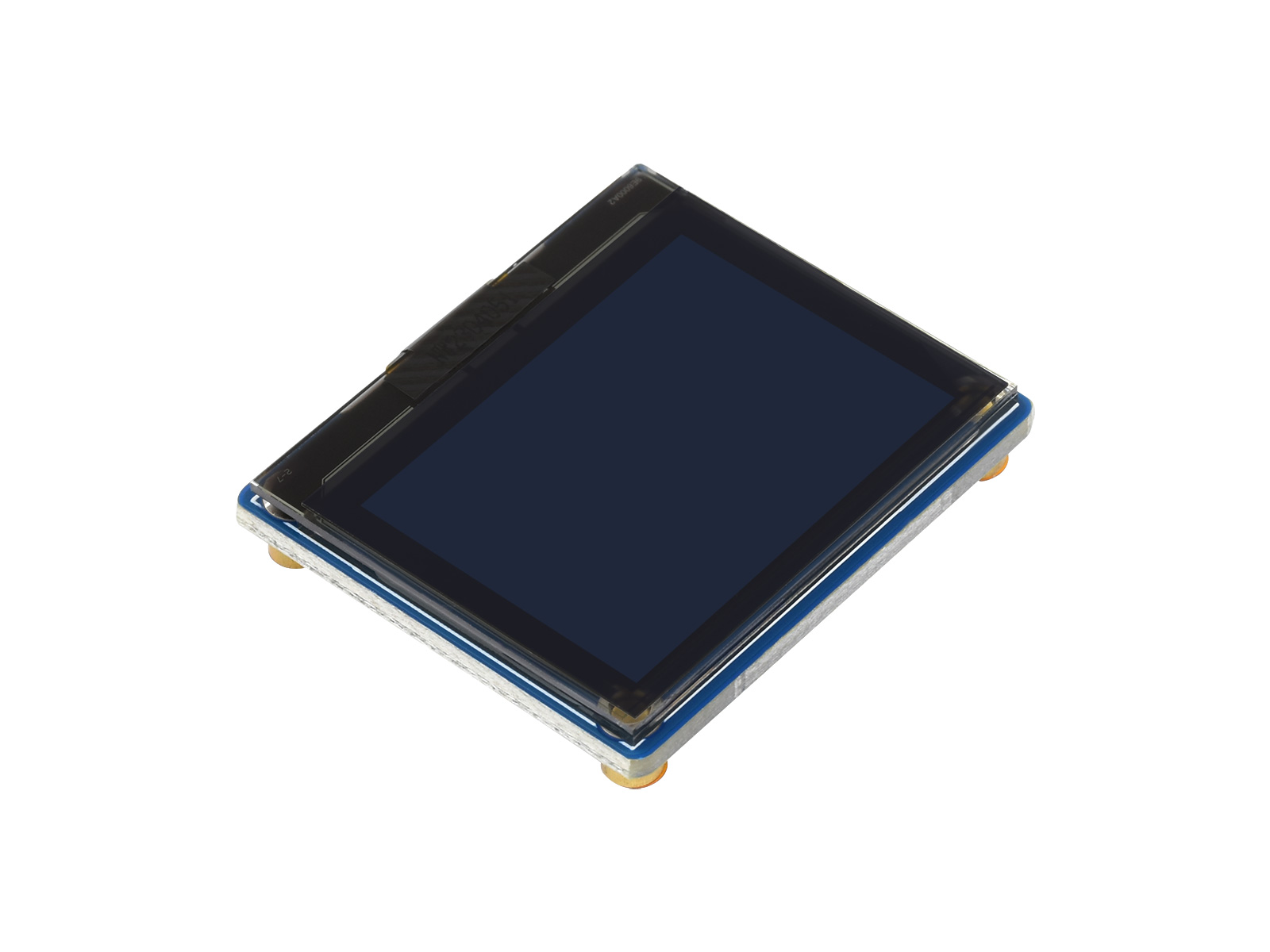

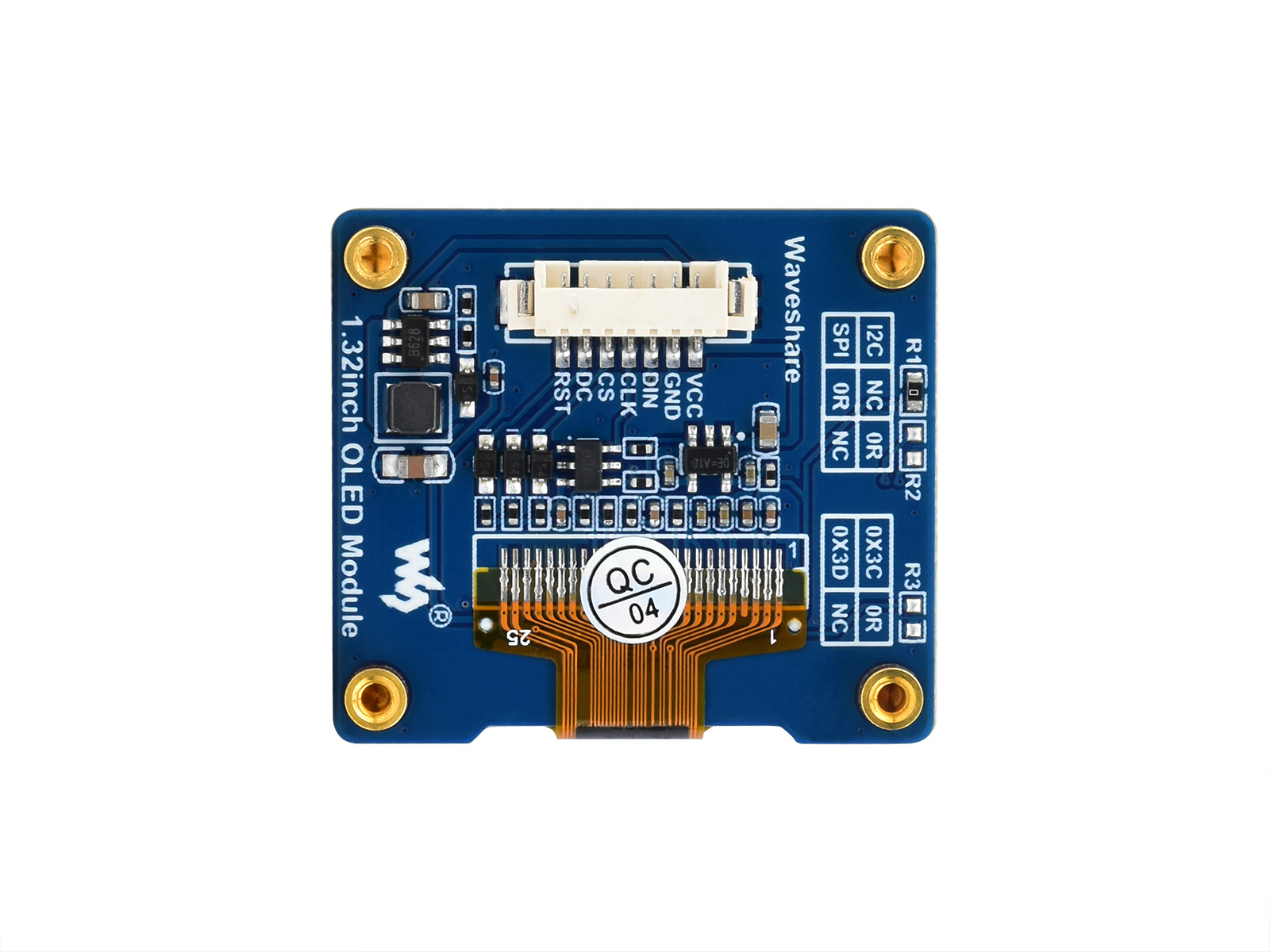

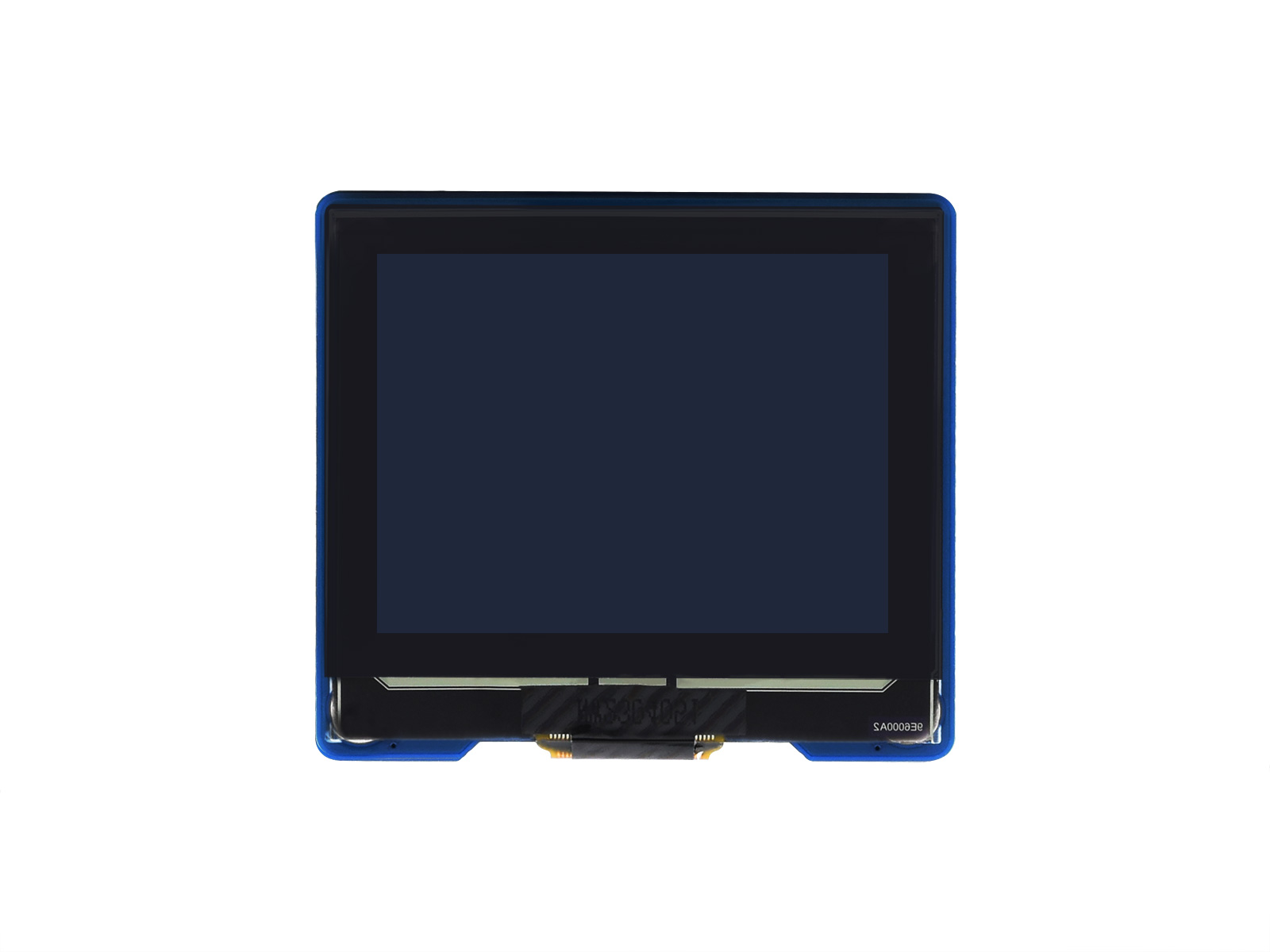

1.32inch OLED Display Module, 128×96 Resolution, 16 Gray Scale, SPI / I2C Communication
1.32inch OLED Display Module

Embedded SSD1327 driver chip, SPI / I2C Communication

Comes with examples for Raspberry Pi, Arduino, STM32, etc.

  • SizeDimension.png1.32"
  • ResolutionResolution.png128×96
  • Display ColorDisplay-BW.pngBlack/White
  • Grey ScaleGray-scale-16.png16
  • Display PanelOLED.pngOLED
  • DriverDriver-IC.pngSSD1327
  • InterfaceI2C.pngSPI/I2C
  • ConnectorSPI_I2C_7PIN.pngGH1.25 7Pin
Features at a glance
  • Ultra-narrow bezel, conpact size, with onboard voltage translator
  • Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
  • Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
Operating voltage3.3V / 5VDISPLAY PANELOLED
Resolution128 × 96 pixelsPIXEL SIZE0.19 × 0.19 mm
Communication Interface4-wire SPI / I2CDriverSSD1327
Display size26.86 × 20.14mmModule size34.30 × 30.50mm
Control Interface
RESReset, low active
DCData/Command selection (high for data, low for command)
CSChip selection, low active
CLKClock input
DINData input
GNDGround
VCCPower (3.3V / 5V input)
Hardware connection

connecting with Raspberry Pi via SPI interface


connecting with Arduino board via SPI interface

Usage Example

for reference only, the STM32 board is NOT included.

Product Show
Outline dimensions

Selection Guide

Part NumberTypeColorResolutionDisplay Size (mm×mm)InterfacesDriverDimension (mm×mm)Pinheader
0.49inch OLED ModuleOLEDWhite64×3214.40×11.50I2CSSD131515.5×13.0MX1.25 connector
0.71inch LCD ModuleIPS65K colorful160×16018×184-wire SPIGC9D0120.1×22.3SH1.0 connector
0.71inch DualEye LCD ModuleIPS65K colorful160×16018×18SPIGC9D0120.00×51.00SH1.0 connector
0.85inch LCD ModuleIPS65K colorful128×12815.21×15.214-wire SPIGC910719.0×22.5GH1.25 connector
0.91inch OLED ModuleOLEDWhite128×3222.38×5.58I2CSSD130636.0×12.5PH2.0 connector
0.95inch RGB OLED (A)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0angled/horizontal
0.95inch RGB OLED (B)OLED65K colorful96×6420.14×13.424-wire SPISSD133131.7×37.0straight/vertical
0.96inch LCD ModuleIPS65K colorful160×8021.70×10.804-wire SPIST7735S32.5×26.0PH2.0 connector
0.96inch OLED (A)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5angled/horizontal
0.96inch OLED (B)OLED1/4 yellow section, 3/4 blue section*128×6421.70×11.203/4-wire SPI, I2CSSD130633.0×33.5straight/vertical
0.96inch OLED Module (C)OLED1/4 yellow section, 3/4 blue section*128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical
0.96inch OLED Module (D)OLEDWhite128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical
0.96inch OLED Module (E)OLEDBlue128×6421.74×11.184-wire SPI, I2CSSD131526.0×26.0straight/vertical
0.96inch RGB OLED ModuleOLED65K colorful64×12810.862×21.7363/4-wire SPISSD135732.5×26.0GH1.25 connector
1.14inch LCD ModuleIPS65K colorful240×13524.91×14.864-wire SPIST778935.0×32.0PH2.0 connector
1.27inch RGB OLED ModuleOLED262K colorful128×9625.708×19.283/4-wire SPISSD135142.2×29.0GH1.25 connector
1.28inch LCD ModuleIPS65K colorful240×240Φ32.4mm4-wire SPIGC9A0140.4×37.5 Φ37.5PH2.0 connector
1.28inch Touch LCDIPS (with touch)65K colorful240×240Φ32.4mm4-wire SPI, I2CGC9A01, CST816S39.89×38.5 Φ38.5GH1.25 connector
1.3inch LCD ModuleIPS65K colorful240×24023.40×23.404-wire SPIST778945.0×31.0PH2.0 connector
1.3inch OLED (A)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5angled/horizontal
1.3inch OLED (B)OLEDBlue128×6429.42×14.703/4-wire SPI, I2CSH110640.5×37.5straight/vertical
1.3inch OLED Module (C)OLEDWhite64×12814.70×29.424-wire SPI, I2CSH110730.0×39.5PH2.0 connector
1.32inch OLED ModuleOLEDWhite (16 gray scale)128×9626.86×20.144-wire SPI, I2CSSD132734.3×30.5GH1.25 connector
1.47inch Touch LCDIPS262K colorful172×32017.75×32.934-wire SPIJD985322.05×41.69SH1.0 connector, FPC0.5 connector
1.47inch LCD ModuleIPS262K colorful172×32017.39×32.354-wire SPIST7789V322.0×38.5PH2.0 connector
1.5inch LCD ModuleIPS262K colorful240×28024.77×28.904-wire SPINV3030B28.5×35.0GH1.25 connector
1.5inch OLED ModuleOLEDWhite (16 gray scale)128×12826.86×26.864-wire SPI, I2CSSD132744.5×37.0PH2.0 connector
1.5inch OLED Module (B)OLEDWhite128×12826.855×26.8554-wire SPI, I2CSH110738.5×44.5MX1.25 connector
1.5inch RGB OLED ModuleOLED65K colorful128×12826.86×26.863/4-wire SPISSD135144.5×37.0PH2.0 connector
1.54inch LCD ModuleIPS65K colorful240×24027.72×27.724-wire SPIST778950.0×35.0PH2.0 connector
1.54inch OLED ModuleOLEDWhite128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector
1.54inch OLED Module (B)OLEDBlue128×6435.05×17.524-wire SPI, I2CSSD130943.0×37.5MX1.25 connector
1.69inch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPIST7789V231.5×39.0MX1.25 connector
1.69inch Touch LCD ModuleIPS262K colorful240×28027.972×32.6344-wire SPI, I2CST7789V233.13×41.13GH1.25 connector
1.8inch LCD ModuleTFT65K colorful128×16028.30×34.504-wire SPIST7735S56.5×34.0PH2.0 connector
1.83inch LCD ModuleIPS65K colorful240×28030.20×35.234-wire SPINV3030B33.0×40.0MX1.25 connector
1.83inch Touch LCD ModuleIPS262K colorful240×28429.52×34.934-wire SPIST7789P35.00×42.00GH1.25 connector
1.9inch LCD ModuleIPS262K colorful170×32022.70×42.724-wire SPIST7789V251.2×27.3GH1.25 connector
1.9inch Touch LCDIPS262K colorful170×32023.10×43.124-wire SPI, I2CST7789V252.36×28.80SH1.0 connector, FPC0.5 connector
2inch Capacitive Touch LCDIPS262K colorful240×32030.60×40.804-wire SPI, I2CST7789T337.1×58.8GH1.25 connector, 18Pin FPC slot
2inch LCD ModuleIPS262K colorful240×32030.60×40.804-wire SPIST7789VW58.0×35.0PH2.0 connector
2.4inch LCD ModuleTFT65K colorful240×32036.72×48.964-wire SPIILI934170.5×43.3PH2.0 connector
2.42inch OLED ModuleOLEDWhite128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector
2.42inch OLED Module (C)OLEDYellow128×6455.01×27.494-wire SPI, I2CSSD130961.50×39.50GH1.25 connector
2.8inch Capacitive Touch LCDTFT262K colorful240×32043.20×57.604-wire SPI, I2CST7789T350.54×73.06GH1.25 connector, 18Pin FPC slot
3.5inch Capacitive Touch LCDIPS262K colorful320×48048.96×73.444-wire SPI, I2CST7796S61.00×92.44GH1.25 connector, 18Pin FPC slot

*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.

Lieferumfang

  1. 1.32inch OLED Module x1
  2. GH1.25 7PIN cable x1
