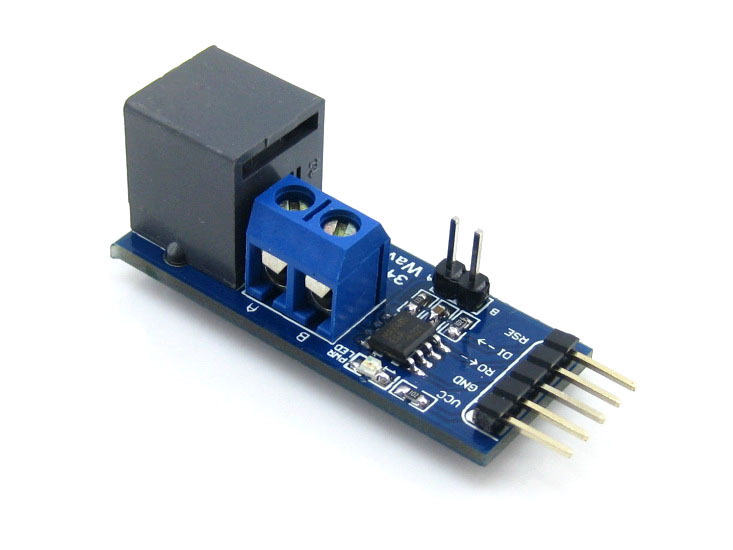

RS485 Board (3.3V)
Product number:
WSAL4777
Product information "RS485 Board (3.3V)"
RS485 communication board, SP3485 on board, 3.3V
Overview
TheRS485 Board (3.3V) is an accessory board used for adding the RS485 transceiver to your application board.
TheRS485 Board (3.3V) features a SP3485 onboard, integrates pinheaders and connectors to support multiple communication interfaces. It is designed to use 3.3V power supply.
Features
SP3485, control interface, communication interfaces

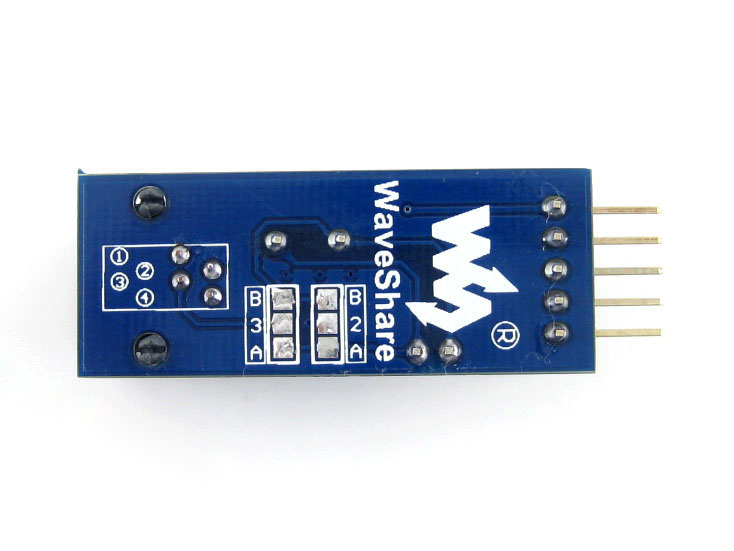

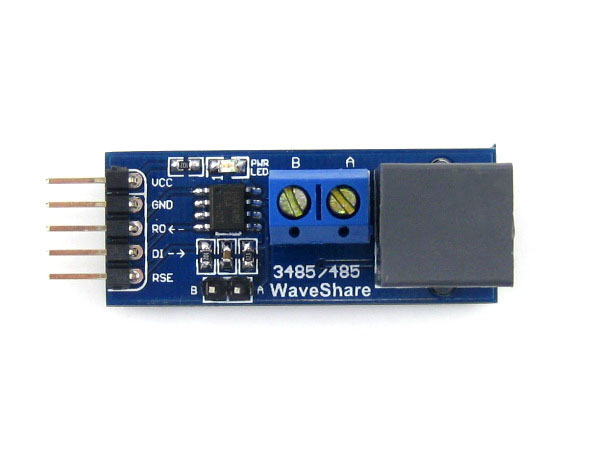

Photos
Dimension
Downloads
Development resources: demo codes, schematic, datasheets, etc.Wiki:www.waveshare.com/wiki/RS485_Board_(3.3V)
Lieferumfang
- RS485 Board (3.3V) × 1
