RP2040 MCU Board, With 1.28inch Round LCD, Accelerometer And Gyroscope Sensor, With CNC Metal Case
Product number:
WSAL26369
Product information "RP2040 MCU Board, With 1.28inch Round LCD, Accelerometer And Gyroscope Sensor, With CNC Metal Case"
RP2040 MCU Board, With 1.28inch Round LCD, Accelerometer And Gyroscope Sensor, With CNC Metal Case
RP2040 MCU Board with LCD
Based on Raspberry Pi RP2040, adopts CNC metal case
Features
RP2040-LCD-1.28-B is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch LCD round display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug pins, which makes it easy for you to develop and integrate it into products quickly.
Key features include:
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of on-board Flash memory
- Type-C connector, keeps it up to date, easier to use
- Onboard 1.28inch 240×240 pixels 65K colorful IPS LCD display for clear color pictures
- Lithium battery recharge/discharge header, suitable for mobile devices
- Adopts CNC metal case with Acrylic dull-polish bottom plate
- All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
C/C++, MicroPython support
Comprehensive SDK, dev resources, tutorials to help you easily get started

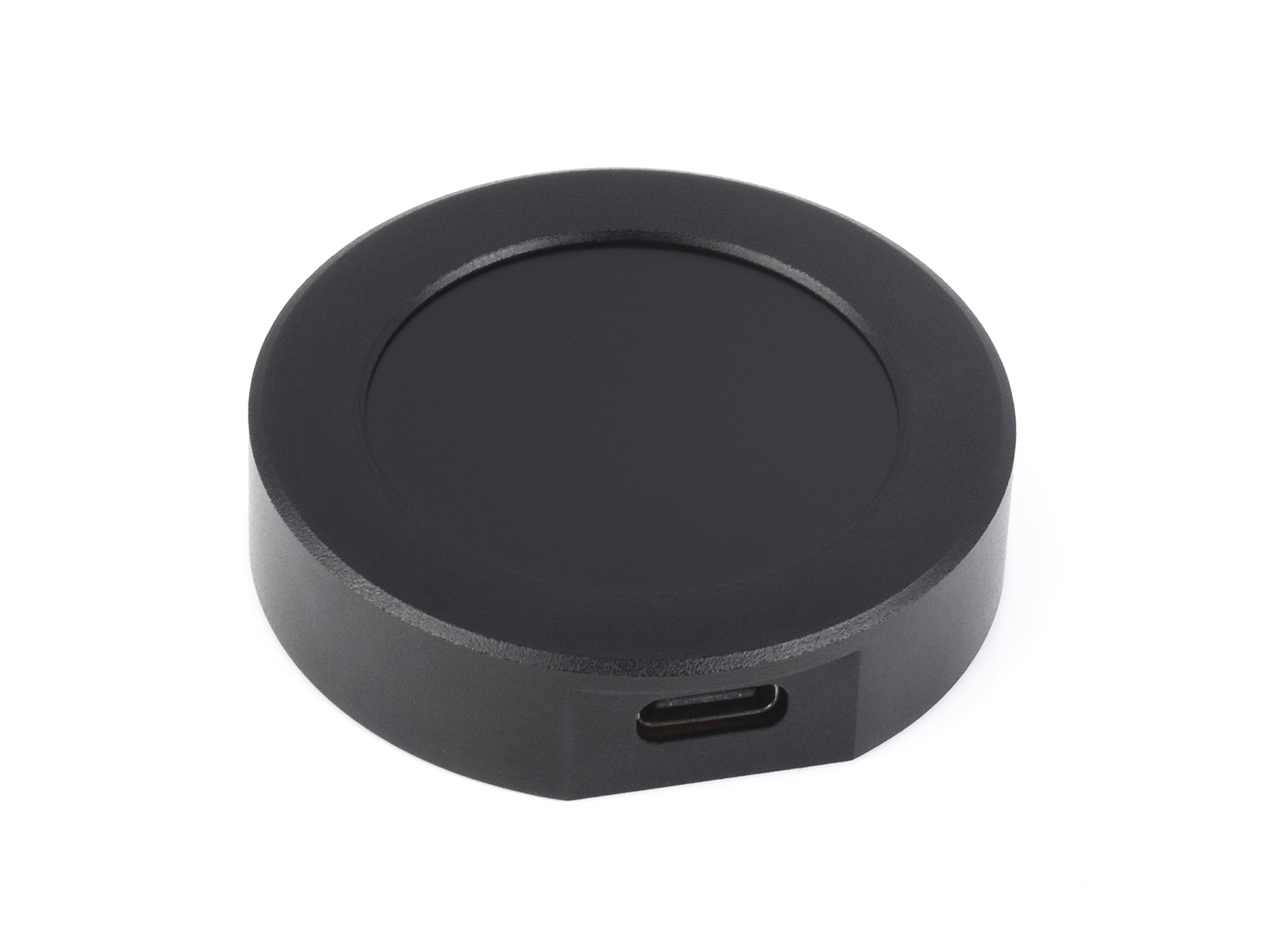

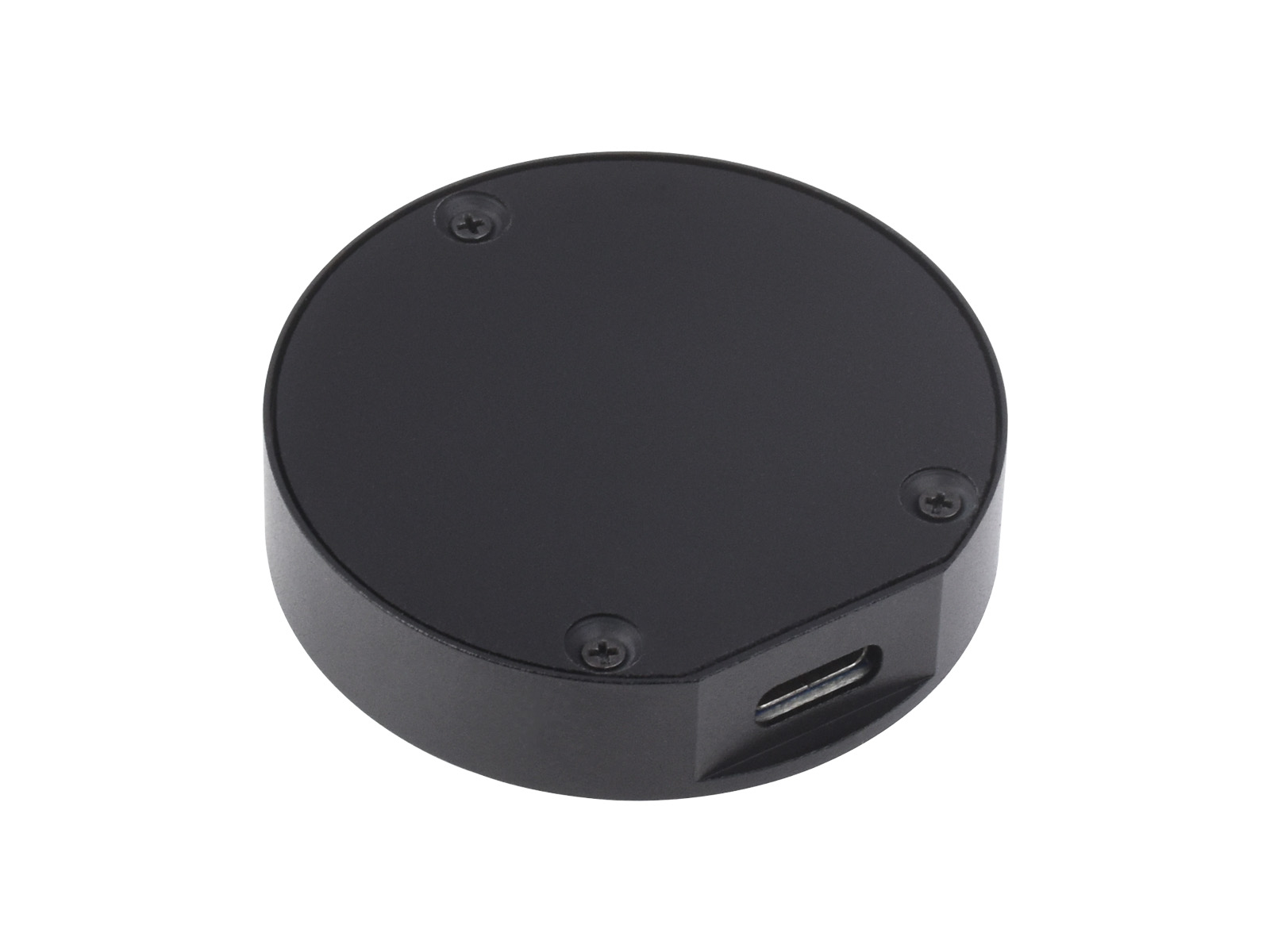

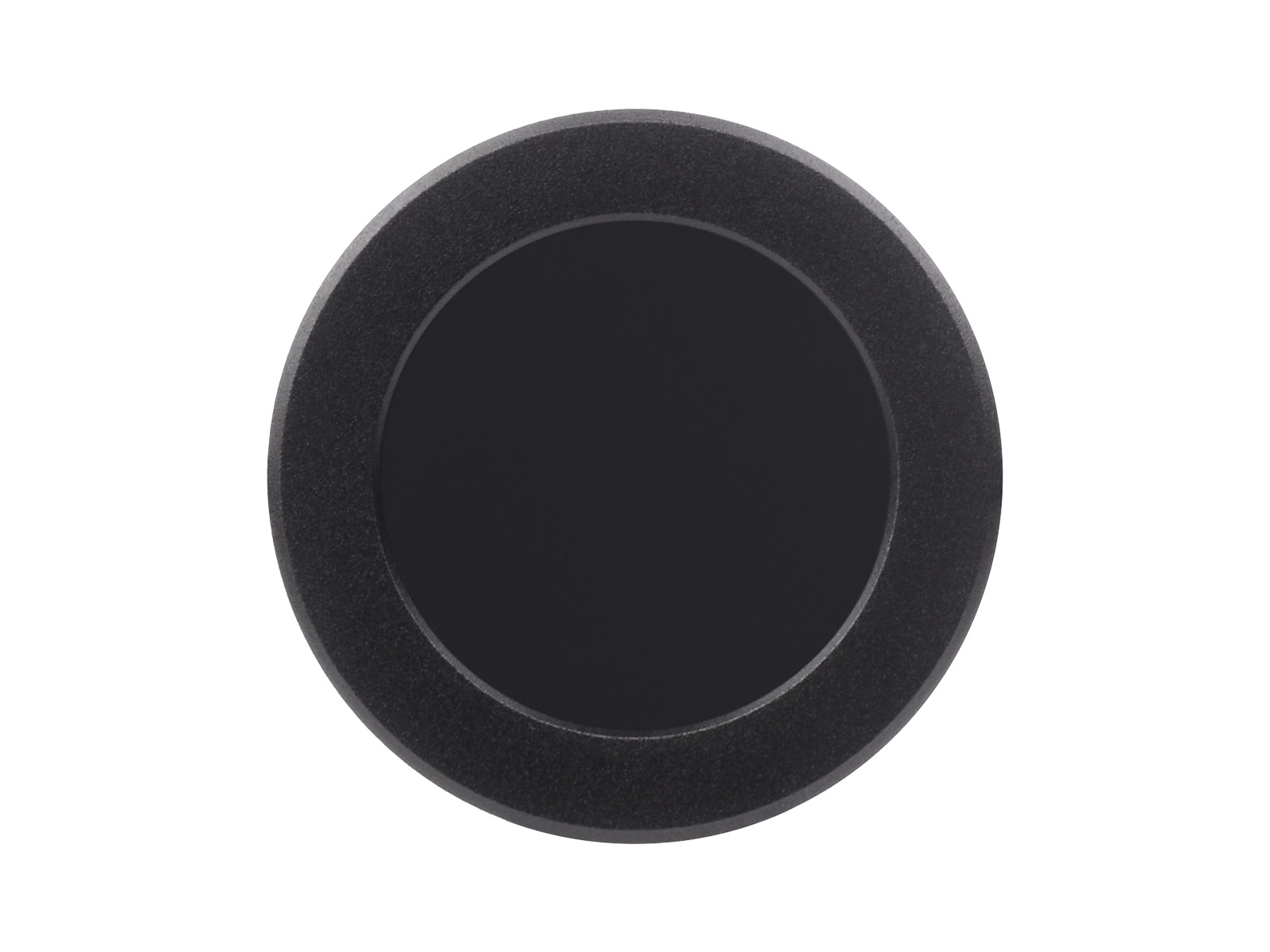

CNC metal case
Adopts CNC metal case with Acrylic dull-polish bottom plate
Dual-core Arm processor
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
30 × multi-function GPIO pins
configurable pin function, allows flexible development and integration
What's On Board
- USB Type-C connector USB 1.1 with device and host support
- ETA6096 high efficiency Lithium battery recharge manager
- Battery HeaderMX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
- QMI8658 IMU, includes a 3-axis gyroscope and a 3-axis accelerometer
- 1.27mm pitch headersAdapting all GPIO and Debug pins
- W25Q16JVUXIQ 2MB NOR-Flash
- RP2040 Dual-core processor, up to 133MHz operating frequency
- RESET Button
- BOOT Button press it when resetting to enter download mode
outline dimensions
Pico Product Selection
| PRODUCT | Voltage regulator chip | USB | Flash | Lithium battery header | Onboard LCD |
|---|---|---|---|---|---|
| RP2350 chip | |||||
 Raspberry Pi Pico 2 | DC-DC, 800mA | Micro USB | 4MB | - | - |
 Raspberry Pi Pico 2 W | DC-DC, 800mA | Micro USB | 4MB | - | with WIFI and Bluetooth |
 Raspberry Pi Pico 2 WH | DC-DC, 800mA | Micro USB | 4MB | - | with WIFI and Bluetooth |
 CAN ver. | DC-DC, 2000mA | Type-C | 4MB | - | CAN interface |
 Type-A ver. | LDO, 500mA | Type-A | 4MB | - | - |
 Type-C ver. | LDO, 800mA | Type-C | 4MB | - | - |
 Tiny ver. | LDO, 800mA | Separate Type-C port adapter | 4MB | - | Separate adapter board design, adapting USB Type-C port via FPC |
 RGB Matrix ver. | LDO, 800mA | Type-C | 16MB | - | Onboard 8 x 8 RGB LED Matrix |
 ETH Port ver. | LDO, 800mA | Type-C | 4MB | - | with Ethernet port |
 USB ver. | LDO, 500mA | Type-A, Type-C | 2MB | - | with PIO-USB Type-A and USB Type-C port |
 core board | LDO, 800mA | Separate Type-C port adapter | 16MB | - | - |
 wireless Plus ver. | LDO, 800mA | Type-C | 16MB | - | Supports Wi-Fi and Bluetooth |
 1.28inch Round LCD ver. | LDO, 300mA | Type-C | 4MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD |
 1.28inch Round Touch LCD ver. | LDO, 300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS touch LCD |
 1.43inch Round Touch AMOLED ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.43inch AMOLED Touch LCD |
 1.64inch Touch AMOLED ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.64inch AMOLED Touch LCD |
 1.75inch Round Touch AMOLED ver. | DC-DC, 2000mA LDO,300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.75inch AMOLED Touch LCD |
 1.8inch Touch AMOLED ver. | DC-DC, 2000mA LDO，300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.8inch AMOLED Touch LCD |
 1.46inch Round Touch ver. | DC-DC, 2000mA | Type-C | 16MB | - | 1.46inch touch LCD |
 1.47inch LCD ver. | LDO, 300mA | Type-C | 16MB | - | 1.47inch IPS LCD |
 1.47inch LCD USB ver. | LDO, 300mA | Type-A | 16MB | - | 1.47inch IPS LCD |
 1.54inch LCD ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.54inch IPS LCD |
 1.54inch Touch LCD ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.54inch IPS Touch LCD |
 1.69inch Touch LCD ver. | LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.69inch Touch LCD |
 2inch Touch LCD ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 2inch Touch LCD |
 2.1inch Round Touch LCD ver. | LDO, 800mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 2.1inch Touch LCD |
 2.1inch Round Curved Touch LCD ver. | LDO, 800mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 2.1inch 2.5D Curved Touch LCD |
 2.41inch Touch AMOLED ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 2.41inch Touch AMOLED |
 2.8inch Touch LCD ver. | LDO, 800mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 2.8inch IPS Touch LCD |
 2.8inch Round Touch LCD ver. | LDO, 800mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 2.8inch IPS Touch LCD, RGB interface |
 3.49inch Touch LCD ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 3.49inch IPS Touch LCD |
 3.5inch Touch LCD ver. | DC-DC, 2000mALDO, 300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 3.5inch Touch LCD |
 4inch LCD ver. | LDO, 800mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 4inch IPS LCD, RGB interface |
 4inch Touch LCD ver. | LDO, 800mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 4inch IPS Touch LCD, RGB interface |
 4.3inch Touch LCD ver. | LDO, 800mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 4.3inch IPS Touch LCD, RGB interface |
 7inch Touch LCD ver. | DC-DC, 3000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 7inch IPS Touch LCD, RGB interface |
 7inch LCD ver. | DC-DC, 3000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 7inch IPS LCD, RGB interface |
 0.96 LCD ver. | DC-DC, 2000mA | Type-C | 4MB | Support(allows recharging the battery and powering the board at the same time) | 0.96inch IPS LCD |
 Plus ver. | DC-DC, 2000mA | Type-C | 4MB/16MB | Support(allows recharging the battery and powering the board at the same time) | - |
 DVI port ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | Onboard DVI interface, TF card slot and PIO-USB port |
| RP2040 chip | |||||
 Raspberry Pi Pico W | DC-DC, 3000mA | Micro USB | 2MB | - | with WIFI |
 Raspberry Pi Pico WH | DC-DC, 3000mA | Micro USB | 2MB | - | with WIFI |
 Raspberry Pi Pico | DC-DC, 800mA | Micro USB | 2MB | - | - |
 Raspberry Pi Pico H | DC-DC, 800mA | Micro USB | 2MB | - | - |
 Type-A ver. | LDO, 500mA | Type-A | 4MB | - | - |
 Mini ver. | LDO, 800mA | Type-C | 2MB | - | - |
 Tiny ver. | LDO, 500mA | Separate Type-C port adapter | 2MB | - | Separate adapter board design, adapting USB Type-C port via FPC |
 RGB Matrix ver. | LDO, 500mA | Type-C | 2MB | - | Onboard 5×5 RGB LED matrix |
 BLE ver. | LDO, 300mA | Separate Type-C port adapter | 2MB | - | Supports Bluetooth 5.1, separate adapter board design, adapting USB Type-C port via FPC |
 ETH Port ver. | LDO, 500mA | Type-C | 4MB | - | with Ethernet port |
 0.99inch Round LCD with case ver. | LDO, 500mA | Type-C | 2MB | - | 0.99inch IPS LCD, CNC metal case |
 1.28inch Round LCD ver. | LDO, 300mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD |
 1.28inch Round LCD with case ver. | LDO, 300mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch IPS LCD, CNC metal case |
 1.28inch Round Touch LCD ver. | LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch Touch LCD |
 1.28inch Round Touch LCD with case ver. | LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.28inch Touch LCD, CNC metal case |
 1.69inch Touch LCD ver. | LDO, 500mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.69inch Touch LCD |
 1.85inch Touch LCD ver. | DC-DC, 2000mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | 1.85inch Touch LCD |
 0.96 LCD ver. | DC-DC, 1800mA | Type-C | 2MB | Support(allows recharging the battery and powering the board at the same time) | 0.96inch IPS LCD |
 Plus ver. | DC-DC, 1800mA | Type-C | 4MB/16MB | Support(allows recharging the battery and powering the board at the same time) | - |
 DVI port ver. | LDO, 300mA | Type-C | 16MB | Support(allows recharging the battery and powering the board at the same time) | Onboard DVI interface, TF card slot and PIO-USB port |
 Cam & LCD ver. | - | Type-C | 16MB | - | Onboard grayscale camera and 1.14inch IPS LCD display |
Lieferumfang
RP2040-LCD-1.28-B x1
