Network Attached Storage(NAS) All-In-One Mini-Computer for Raspberry Pi Compute Module 4, Optional For CM4 Module

€215.38*

Stk

Product number: WSAL25753

Product information "Network Attached Storage(NAS) All-In-One Mini-Computer for Raspberry Pi Compute Module 4, Optional For CM4 Module"

Network Attached Storage(NAS) All-In-One Mini-Computer for Raspberry Pi Compute Module 4, Personal Network Storage Server, Optional For CM4 Module

NAS Mini-Computer for CM4

Designed for Raspberry Pi Compute Module 4 Personal Network Storage Server

Features at a glance

All-in-one Mini-Computer, mainly designed for home or small home office, but not limited to the above applications
Out of the box, no expert knowledge of networking and storage systems required
Built-in 2x SATA slots for installing 2.5-inch Solid State Drives
2-inch SPI LCD screen for real-time monitoring the working status of CM4: CPU, RAM, system disk usage, network speed and temperature, etc.
Easy to use, convenient to online access the documents, videos, and music at any time

Specifications

Processor *	Broadcom BCM2711 Quad-Core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
RAM *	CM4104008: 4GB CM4102032: 2GB
EMMC FLASH *	CM4104008: 8GB CM4102032: 32GB
Connectivity	Dual-band (2.4GHz/5.0GHz) IEEE 802.11b/g/n/ac wireless WiFi, Bluetooth 5.0, BLE with onboard and external antenna options *
	Gigabit Ethernet RJ45 connector
	2 x USB 2.0 ports
	2 x SATA slots (2.5inch SATA)
	TF card slot for Compute Module 4 Lite (without eMMC) variants
	HDMI × 1, supports 4K 30fps output
Operating voltage	5V DC

* the CM4104008 or CM4102032 is optional. You can choose and purchase other variants of Compute Module 4 according to your needs

Built-in Dual Hard Drive SlotsSupport Large Capacity HDD Storage

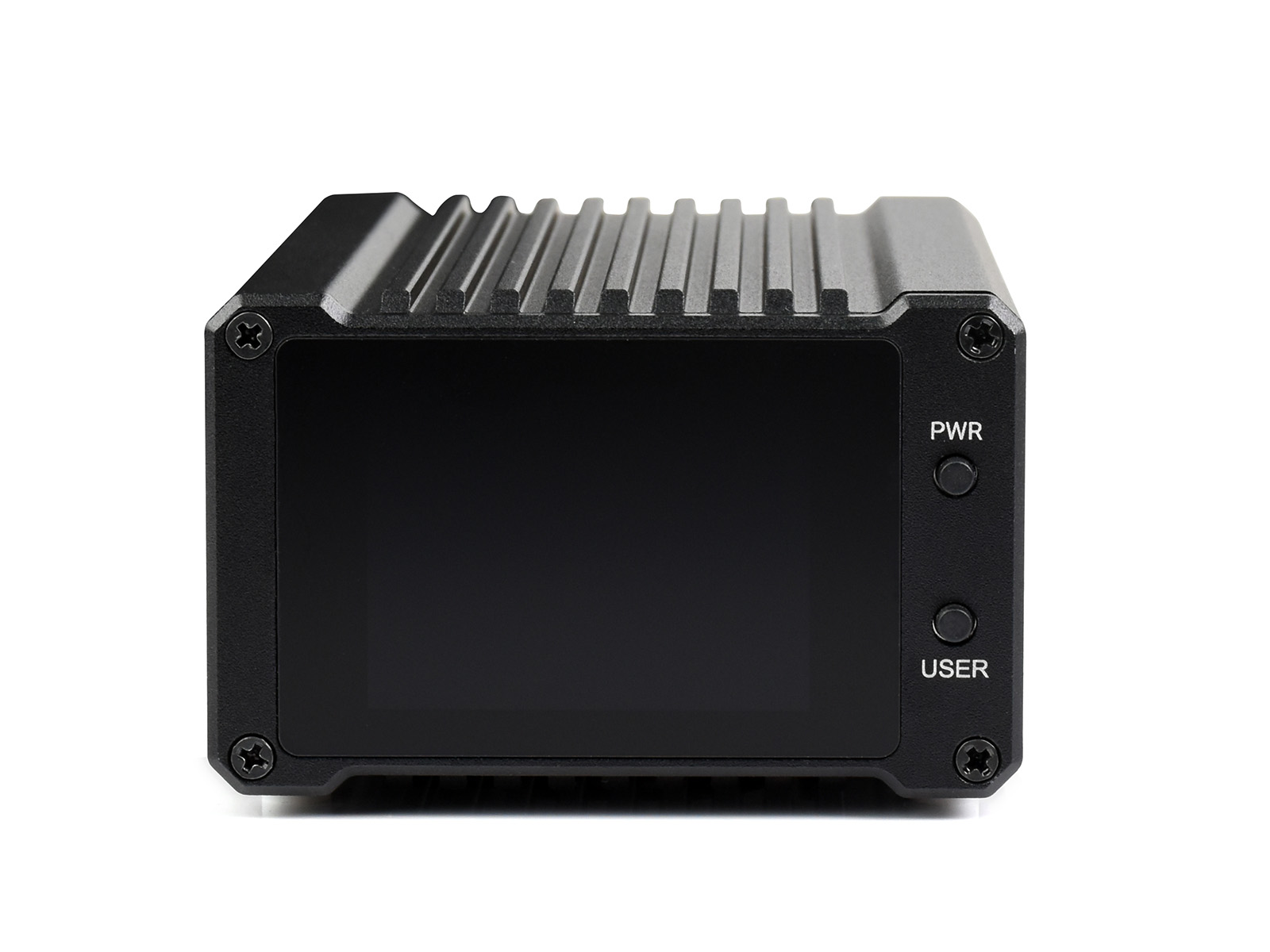

Comes With SPI 2inch LCD Display

For monitoring the working status of CM4 in real-time

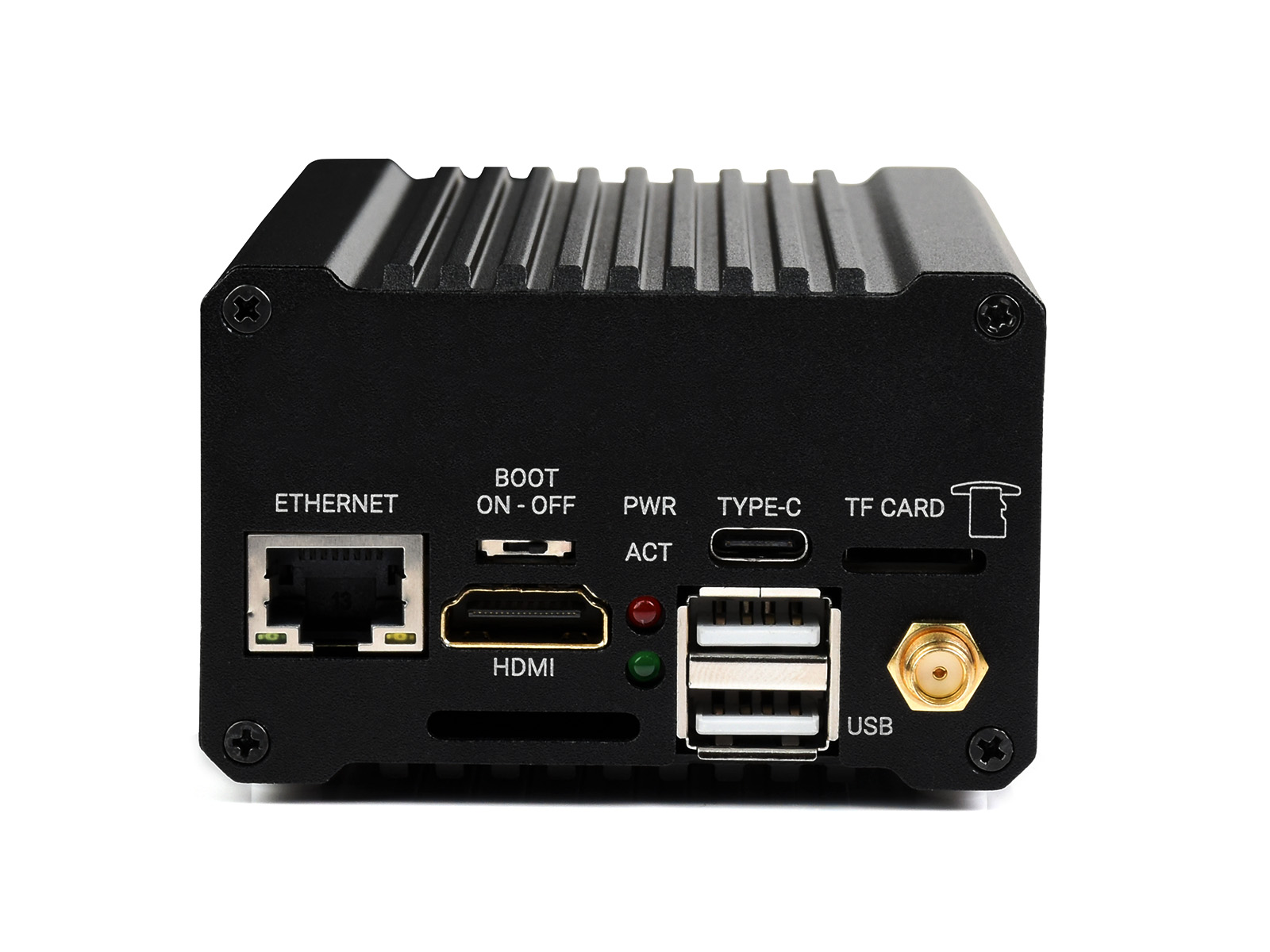

Rich Interfaces

Aluminum alloy Case Design

Alloy Case For Large Area Heat Dissipation, with fan vents and nonskid feet at the bottom, better heat dissipation and more stable placement

Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

Product Show

Dimensions

Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
