Jetson Orin NX AI Development Kit For Embedded And Edge Systems, Options for 8GB/16GB Memory Jetson Orin NX Module
Product information "Jetson Orin NX AI Development Kit For Embedded And Edge Systems, Options for 8GB/16GB Memory Jetson Orin NX Module"
Waveshare Jetson Orin NX Dev Kit
This is not the N-VIDIA official Developer Kit

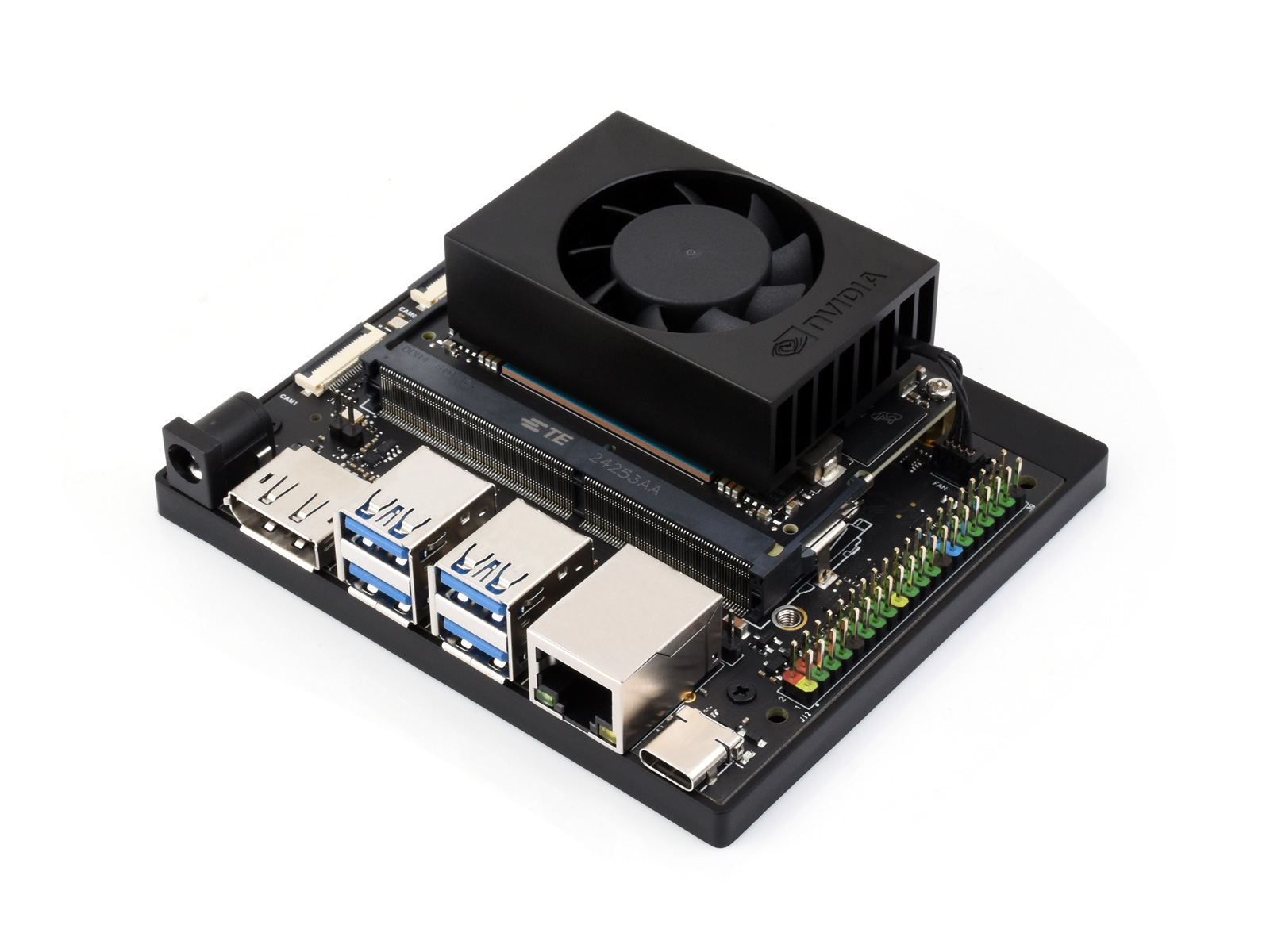

Based on Jetson Orin NX module, with JETSON-ORIN-IO-BASE base board, providing rich peripheral interfaces such as M.2, DP, USB, etc., which is more convenient for users to realize the product performance.
This kit includes the Orin NX Module with options for8GB/16GB memory, no built-in storage module, provides up to 70 TOPS / 100 TOPS AI Performance. And up to 117 TOPS / 157 TOPS after upgrading to the SUPER version. Comes with a Free 256 GB NVMe Solid State Drive, high-speed reading/writing, meet the needs of large AI project development.
* for reference only, the actual appearance of the Solid State Drive may be different
This kit also comes with a pre-installed dual-band wireless network card that supports Bluetooth 5.0 and dual-band WIFI, with two additional PCB antennas, for providing high-speed and reliable wireless network connection and Bluetooth communication.
*please refer to the package content for detailed part list, the NVMe Solid State Drive and wireless network card are NOT included in the JETSON-ORIN-NX-8G/16G-BASE-KIT
| Kit | Basic Kit | Dev Kit | A | B |
| JETSON-ORIN-NX-BASE-KIT(Orin NX Module: options for 8GB/16GB) | √ | |||
| JETSON-ORIN-NX-DEV-KIT(Orin NX Module: options for 8GB/16GB) | √ | √ | √ | |
| Built-in Solid State Drive + wireless network card | √ | √ | √ | |
| 8MP IMX219-77 Camera | √ | √ | ||
| 13.3inch HDMI LCD (H) (with case) V2(USB cable, DP to HDMI cable, power supply) | √ |
JETSON-ORIN-NX-BASE-KITIncludesJetson Orin NX Module (options for 8GB/16GB), JETSON-ORIN-IO-BASE base board, and cooling fan. The 256GB NVMe Solid State Drive and wireless network card are NOT included in the kit.
JETSON-ORIN-NX-DEV-KITIncludesJetson Orin NX Module (options for 8GB/16GB), JETSON-ORIN-IO-BASE base board, cooling fan, 256GB NVMe Solid State Drive, AW-CB375NF dual-band wireless network card, USB cable, Ethernet cable, power supply, etc.
JETSON-ORIN-NX-DEV-KIT-A: Camera kitOn the basis of the JETSON-ORIN-NX-DEV-KIT, it is equipped with an 8MP (3280 x 2464) high-definition camera, suitable for the AI intelligent applications such as face recognition, road sign recognition and license plate recognition.
JETSON-ORIN-NX-DEV-KIT-B: Camera + Touch display kitOn the basis of the Kit A, it is equipped 13.3inch Capacitive Touch Screen LCD (with case), 1920×1080 resolution, up to 10-point touch, built-in ferrite Hi-Fi speaker. It can display the images taken by the camera in real time, to achieve more human-computer interaction of artificial intelligence operations.
| Version | 8GB***SUPER | 16GB***SUPER |
|---|---|---|
| AI performance | 117 TOPS | 157 TOPS |
| GPU | 1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores | |
| GPU Frequency | 1173MHz (Max) | |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3 | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3 |
| CPU Frequency | 2GHz (Max) | |
| DL accelerator | 1x N-VDLA v2 | 2x N-VDLA v2 |
| DLA Frequency | 1230MHz (Max) | |
| Vision Accelerator | 1x PVA v2 | |
| Memory | 8GB 128-bit LPDDR5, 102.4GB/s | 16GB 128-bit LPDDR5, 102.4GB/s |
| Storage | Supports external NVMe | |
| Power | 10W | 15W | 25W | 40W | |
| PCIe* | 1 x4 + 3 x1 (PCIe Gen4, Root Port, & Endpoint) | |
| USB* | 3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0 | |
| CSI Camera | Up to 4 cameras (8 via virtual channels**) 8 lanes MIPI CSI-2 D-PHY 2.1 (up to 20 Gbps) | |
| Video encode | 1x 4K60 (H.265) | 3x 4K30 (H.265) 6x 1080p60 (H.265) | 12x 1080p30 (H.265) | |
| Video decode | 1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) 9x 1080p60 (H.265) | 18x 1080p30 (H.265) | |
| Display | 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1 | |
| Other | 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO | |
| Networking | 1x GbE | |
| Dimensions | 69.6 mm x 45 mm 260-pin SO-DIMM connector | |
| * USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations. ** Virtual Channels for Jetson Orin NX are subject to change Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features. *** Orin NX Module and Waveshare kit: supports upgrading to SUPER image, provides SUPER upgrade tutorial in the wiki (jetpack 6.2 can support upgrading SUPER version); | ||
N-VIDIA SoftwareAll N-VIDIA Jetson modules and developer kits are supported by the same N-VIDIA Jetson software stack, so you can develop once and deploy everywhere. Jetson software is designed to provide end-to-end acceleration for AI applications and accelerate the time to market. This brings the powerful N-VIDIA technologies that power data centers and cloud deployments to the edge.
Pretrained ModelsMany AI applications have common needs: classification, object detection, language translation, text-to-speech, recommender engines, sentiment analysis, and more. Pretrained models from the NGC™ catalog are performance-optimized and ready to be fine-tuned with the N-VIDIA TAO Toolkit and customer datasets, reducing time and cost for production AI software development.
N-VIDIA software platforms including Isaac for robotics, Riva for AI speech, and Metropolis for video analytics, are available to speed vertical-specific applications
N-VIDIA IsaacRobots improve efficiency and quality of life in industries such as manufacturing, logistics, healthcare, and service. N-VIDIA Isaac™ accelerates the process with enhanced robotics development, simulation, and deployment.
N-VIDIA RivaN-VIDIA Riva is a fully accelerated SDK for building multimodal conversational AI applications using an end-to-end deep-learning pipeline, suitable for optimized skills in speech, vision, and natural language processing (NLP) tasks.
N-VIDIA MetropolisN-VIDIA Metropolis includes an application framework, s set of developer tools, and the partner ecosystem. It brings visual data and AI together to improve operational efficiency and safety across a broad range of industries.
| Model | Module | Developer Kit |
|---|---|---|
| Jetson AGX Orin 2048-core N-VIDIA Ampere architecture GPU with 64 Tensor Cores |  110×110×71.65mmOfficial Kit: 64GB | |
| Jetson Orin Nano 512/1024-core N-VIDIA Ampere architecture GPU with 16/32 Tensor Cores |  Memory: 4GB / 8GB69.6×45mm260-pin SO-DIMM connector |  100×79×21mmOfficial Kit |
| 100×79×21mmOfficial Super Kit | ||
 103×90.5×34mmWaveshare Kit: 4GB / 8GB | ||
 103×90.5×34mmWaveshare Dual ETH Kit: 4GB / 8GB | ||
| Jetson Orin NX 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |  Memory: 8GB / 16GB69.6×45mm260-pin SO-DIMM connector |  103×90.5×34mmWaveshare Kit: 8GB / 16GB |
| 103×90.5×34mmWaveshare Dual ETH Kit: 8GB / 16GB | ||
Note: some models haven't been released yet, please contact the Waveshare service team if you need them. | ||
Lieferumfang
JETSON-ORIN-NX-BASE-KIT
- JETSON-ORIN-IO-BASE x1
- OPTIONS Jetson Orin NX module x1
- Cooling fan + accessories x1
- Screws pack x1
JETSON-ORIN-NX-DEV-KIT
- Waveshare Orin NX development kit:OPTIONS Jetson Orin NX module x1JETSON-ORIN-IO-BASE x1 Cooling fan x1 256GB NVMe Solid State Drive (assembled) x1Wireless network card (assembled) x1
- USB Type A to Type-C cable (~1m) x1
- Ethernet cable (~1.5m) x1
- Jumper x1
- OPTIONS Power adapter x1
JETSON-ORIN-NX-DEV-KIT-A
- Waveshare Orin NX development kit:OPTIONS Jetson Orin NX module x1JETSON-ORIN-IO-BASE x1 Cooling fan x1 256GB NVMe Solid State Drive (assembled) x1Wireless network card (assembled) x1
- USB Type A to Type-C cable (~1m) x1
- Ethernet cable (~1.5m) x1
- Jumper x1
- OPTIONS Power adapter x1
- IMX219-77 Camera (with FFC cable) x1
- Camera FPC cable ~15cm (2PCS) x1
JETSON-ORIN-NX-DEV-KIT-B
- Waveshare Orin NX development kit:OPTIONS Jetson Orin NX module x1JETSON-ORIN-IO-BASE x1 Cooling fan x1 256GB NVMe Solid State Drive (assembled) x1Wireless network card (assembled) x1
- USB Type A to Type-C cable (~1m) x1
- Ethernet cable (~1.5m) x1
- Jumper x1
- OPTIONS Base board power adapter x1
- Camera FPC cable ~15cm (2PCS) x1
- IMX219-77 Camera (with FFC cable) x1
- 13.3inch HDMI LCD (H) (with case) V2 x1
- Display power supply x1
- USB Type A to Micro B cable (~35cm) x1
- DP to HDMI cable ~1m x1
