Industrial IoT 5G/4G Wireless Expansion Module Designed for Raspberry Pi Compute Module 4, With UPS Module, Onboard M.2 Slot
Product information "Industrial IoT 5G/4G Wireless Expansion Module Designed for Raspberry Pi Compute Module 4, With UPS Module, Onboard M.2 Slot"
suitable for IoT applications like IoT getaway, wireless router, intelligent data acquisition...
4G/5G Support, Multi Interfaces, Onboard UPS Module
This is an industrial expansion module based on Raspberry Pi CM4 with UPS module, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G wireless communication modules to be connected via the M.2 B KEY socket. There are also industrial interfaces/resources including RS485, CAN, and RTC.
Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in industrial automatic control system, and more.
Old VersionCM4-IO-WIRELESS-BASE
New versionCM4-IO-WIRELESS-BASE-BOnboard UPS Module
| Basic kit | Basic kit + 4G Module | |
|---|---|---|
| CM4 wireless base board + UPS Module | √ | √ |
| Black ABS case | √ | √ |
| SIM7600G-H-M.2 4G module | √ | |
| PCB antenna | √ |
* please refer to Package Content for exact part list info.
| CM4 socket | suitable for all variants of Compute Module 4 |
|---|---|
| UPS Power | UPS Module, 5V/2.5A (Max) output, supports 3 × 10440 lithium batteries (NOT included) |
| Networking | Gigabit Ethernet RJ45 |
| M.2 B KEY, for connecting 5G / 4G wireless module | |
| Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication | |
| USB | USB 2.0 × 3 |
| Pin header | Non-isolated RS485 × 2, Non-isolated CAN × 1, Partial GPIO pins |
| Camera | MIPI CSI-2 × 1 (15pin 1.0mm FPC connector) |
| Video | HDMI × 1, supports 4K 30fps output |
| RTC | Real-time clock with battery socket and ability to wake Compute Module 4 |
| Storage | TF card socket for Compute Module 4 Lite (without eMMC) variants |
| Fan header | 5V/12V, allows speed adjustment and measurement |
| Power input | 5V or 7~36V |
| Dimensions | 145 × 90 × 40mm |
| CM4 Base Board | Interface count and specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PoE | Gigabit ETH | 40PIN GPIO | PCIe | USB① | DSI | HDMI | CSI | RTC | Fan Header | Power Input | Features | |
 NANO A | √ | 2.0×1 | ×1 | 5V | CM4 sized | |||||||
 NANO B | ×1 | √ | 2.0×1 | ×1 | ×1 | ×1 | 5V | CM4 sized | ||||
 NANO C | √ | 2.0×1 | ×1 | ×1 | ×1 | 5V | Onboard Camera | |||||
 mini Base A | ×1 | √ | M.2 M | 2.0×4 | ×1 | ×2 | ×2 | 5V | 5V | mini size | ||
| mini Base B | ×1 | √ | M.2 M | 2.0×4 | ×1 | ×2 | ×2 | √ | 5V | 5V | mini size | |
 mini Base C | ×1 | √ | M.2 M | 2.0×2 | ×1 | ×2 | √ | 5V | 5V | Dedicated 40PIN LCD Connector | ||
 Touch screen | ×1 | M.2 M | 2.0×4 | ×1 | ×1 | 5V | IPS screen | |||||
 Mini Dual Gigabit | ×2 | √ | 2.0×1 | 5V SH1.0 | 5V | dual ETH | ||||||
 Binocular camera | ×1 | √ | M.2 M | 2.0×4 | ×2 | 5V | dual 8MP cameras | |||||
 4CH RS485 | ×1 | 2.0×2 | ×1 | ×2 | ×1 | 5V | 7-36V | dual ETH | ||||
 WIFI6 DUAL ETH | ×1 | √ | M.2 E | 2.0×3 | ×1 | ×2 | ×2 | ×1 | 5/12V | 7-36V | WIFI6 dual ETH | |
 Dual Gigabit ETH | ×2 | √ | 3.0×3 | ×1 | ×2 | ×2 | √ | 5/12V | 7-36V | |||
 IoT Dual Gigabit ETH | ×2 | √ | 3.0×2 | ×1 | ×2 | ×2 | √ | 5/12V | 5V | 5G/4G support | ||
 IoT Base | √ | ×1 | Gen2×1 | 2.0×2 | ×2 | ×2 | ×2 | √ | 5/12V | 7-36V | 5G/4G supportRS232RS485ADC | |
 PoE Base (B) | √ | ×1 | √ | Gen2×1 | 2.0×4 | ×2 | ×2 | ×2 | √ | 5/12V | 5V | RS232RS485 |
 PoE UPS Base | √ | ×1 | √ | M.2 M | 2.0×4 | ×1 | ×2 | ×2 | √ | 5/12V | 7-36V | UPS |
 PoE Base | √ | ×1 | √ | 3.0×4 | ×2 | ×2 | ×2 | √ | 5/12V | 7-36V | ||
 Raspberry Pi official | ② | ×1 | √ | Gen2×1 | 2.0×4 | ×2 | ×2 | ×2 | √ | 12V | 12V | |
 Wireless base | ×1 | M.2 B / Mini-PCIe | 2.0×3 | ×1 | ×1 | √ | 5/12V | 5V or 7-36V | 5G/4G support RS485 CAN rail-mount | |||
 UPS Wireless base | ×1 | M.2 B | 2.0×3 | ×1 | ×1 | √ | 5/12V | 5V or 7-36V | With UPS 5G/4G support RS485 CAN rail-mount | |||
 NAS Mini Computer | ×2 | √ | M.2 M×2/ Mini-PCIe | 3.0×2 | ×2 | ×2 | √ | 5V | dual M.2 M KEY slots | |||
 5″ touch screen | ② | ×1 | √ | M.2 M | 2.0×4 | ×1 | ×2 | √ | 5/12V | 5V | ||
 7″ all-in-one | ×1 | M.2 M | 2.0×4 | used | ×1 | used | √ | 5/12V used | 7-36V | touch screen camera speaker | ||
 13.3″ all-in-one | ×1 | 2.0×2 | 12V | HD touch screen | ||||||||
 13.3″ Magic Mirror | ×1 | 2.0×2 | 12V | HD screen, Speech Assistant | ||||||||
| Note | ① USB 3.0 is equivalent to USB 3.2 Gen1 ② There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A). | |||||||||||
standard CM4 socket and partial Raspberry Pi GPIO headersuitable for Compute Module 4 Lite/eMMC series module
* for renference only, the CM4 and 10440 lithium batteries are NOT included
Onboard M.2 B KEY Slot, Compatible With 4G/5G Wireless Modules With M.2 B Connector
- 4G/3G/2G communication, GNSS positioning, global coverage
- Standard M.2 B KEY interface, high compatibility
- Multi-constellation high accuracy positioning GNSS receiver support
- Suitable for LTE, UMTS, and GSM network with global coverage
- Abundant software functions: FOTA, LBS, TLS, VoLTE
- Up to 150Mbps (Max) downlink data rate and 50Mbps (Max) uplink data rate
- Supports popular OS driver: Windows, Linux, Android etc.
- AT commands of the SIM7600G-H-M.2 series are compatible with the SIM7500/SIM7600 series modules
- Please refer to SIM7600G-H-M.2 product page for details
- For quantity of 20pcs or more, other M.2 or Mini-PCIe modules are customizable (SIM7600CE-T / E-H / A-H, etc.), feel free to contact us
with heatsink
with cooling fan
It is able to charge the batteries and provide power output at the same time from external power supplyAutomatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

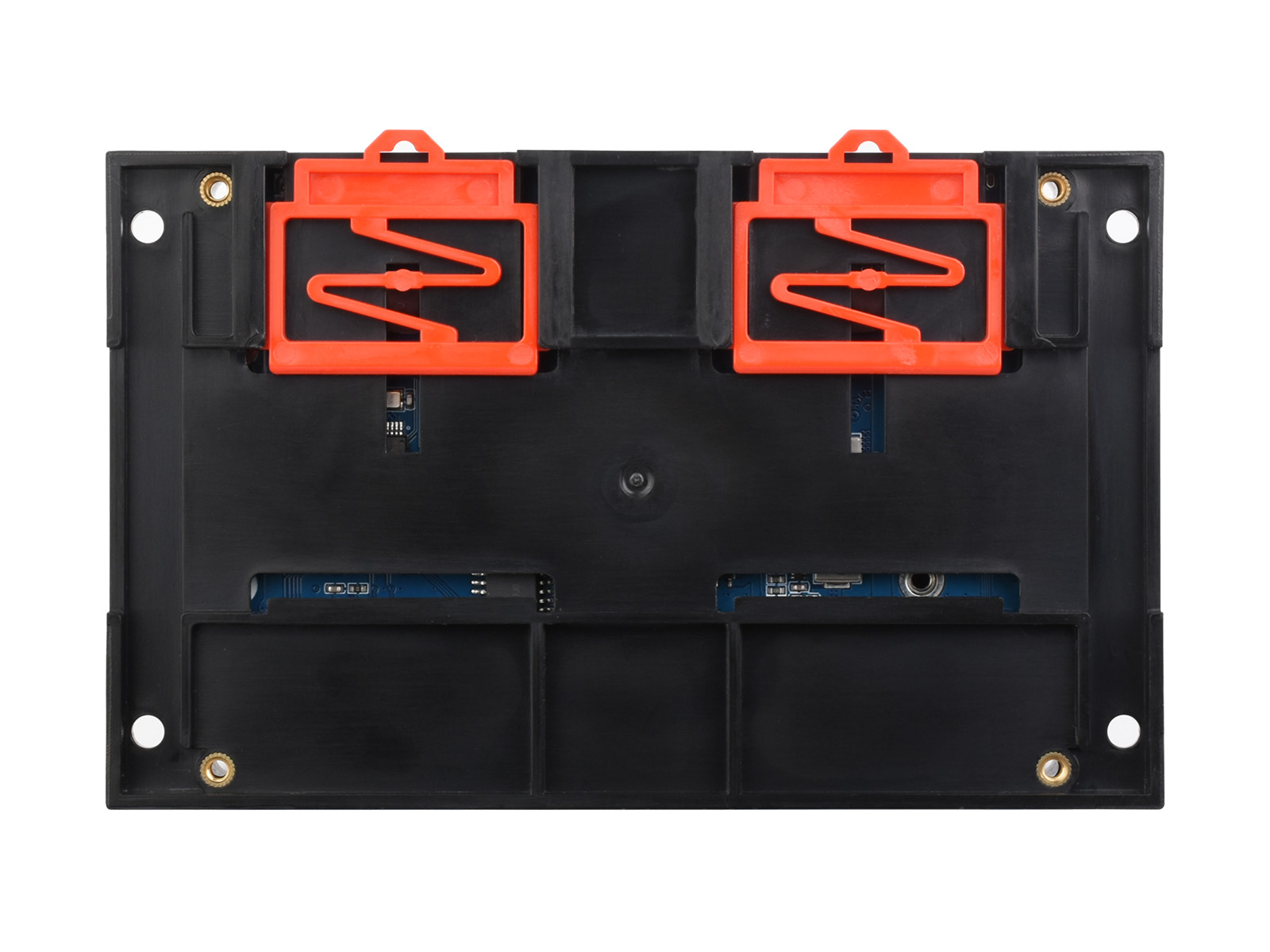

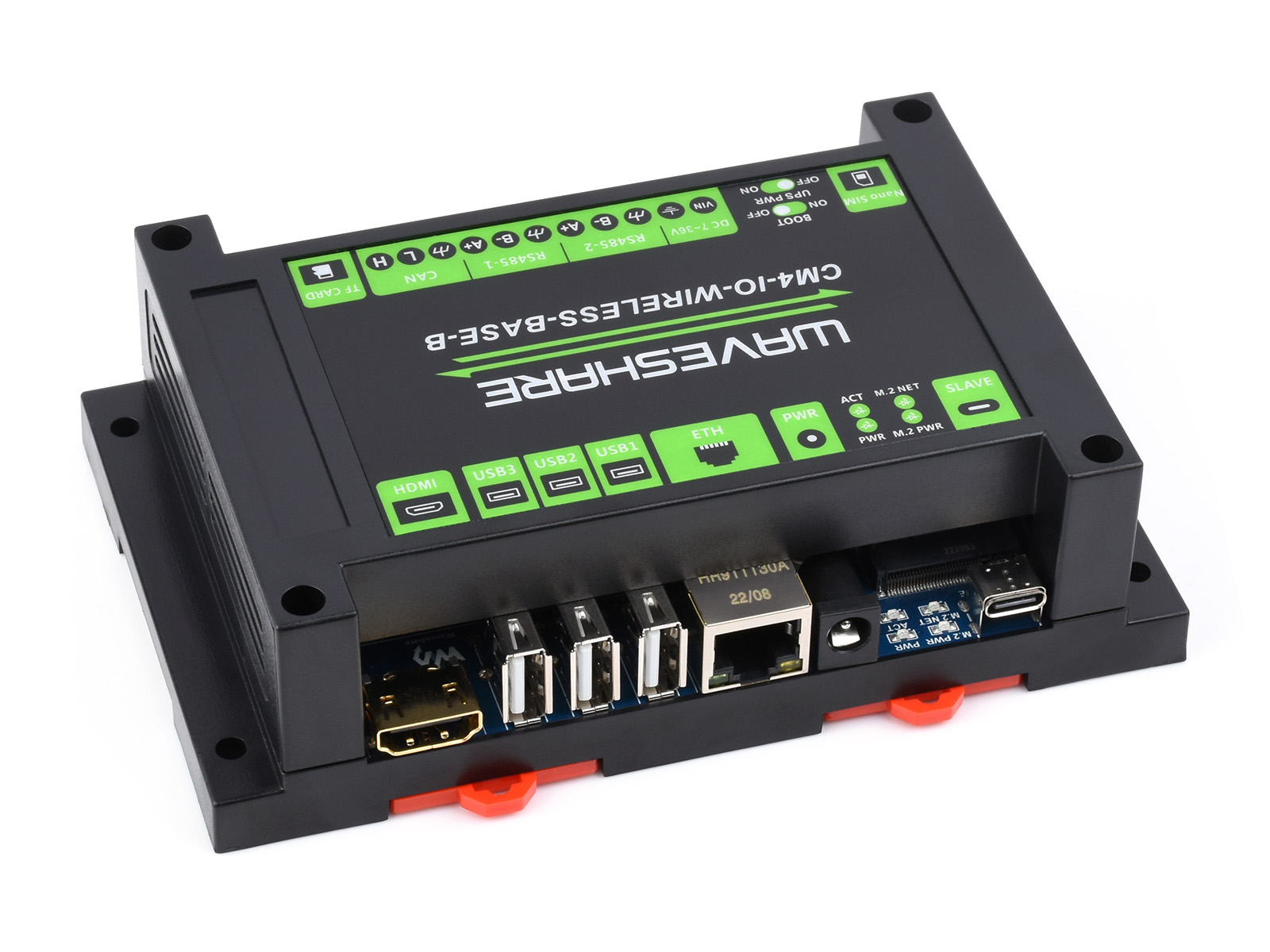

rail-mount ABS protection case, easy to install, safer operation
suitable for IoT gateway, 4G/5G router, IoT data acquisition and monitoring, industrial PLC, or other industrial applications. Onboard UPS module, keeps the system running after disconnecting the power cable

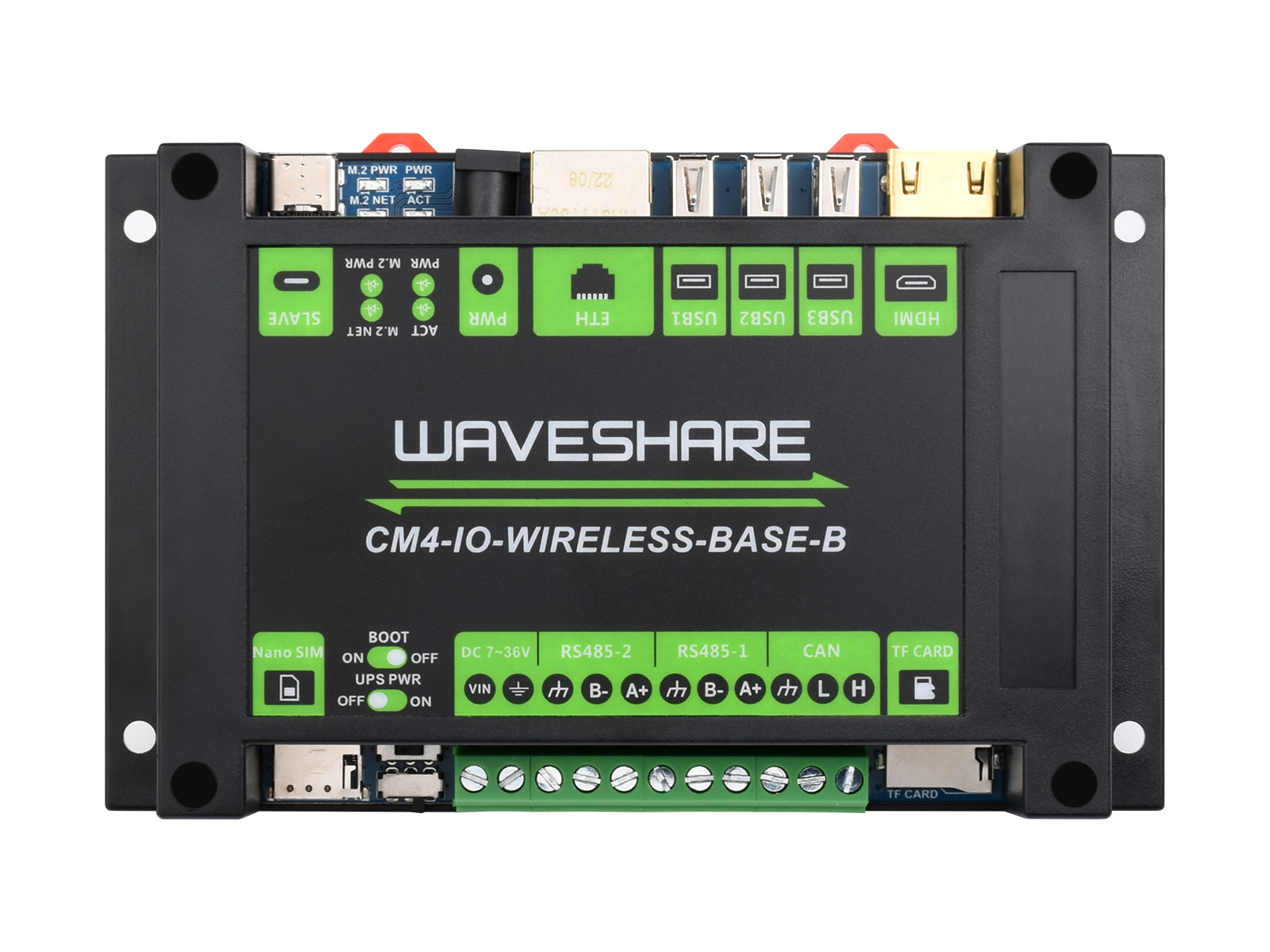

- CM4 socket suitable for all variants of Compute Module 4
- HDMI connector supports 4K 30fps output
- USB 2.0 ports3x USB 2.0, for connecting sorts of USB devices
- RJ45 Gigabit Ethernet10/100/1000M compatible
- DC power supply 7 ~ 36V DC input
- CM4 status indicatorPWR: Raspberry Pi power indicatorACT: Raspberry Pi operating status indicator
- 4G/5G module status indicator M.2 PWR: module enable indicator M.2 NET: module operating status indicator
- PWR & USB5V DC power supply or USB programming port
- M.2 B KEYsupports 4G/5G modules with M.2 B KEY connector, or other communication modules using USB channel
- Nano-SIM card slotsupports standard Nano-SIM card for 5G/4G/3G/2G communication
- BOOT selectionON: CM4 will be booted from USB-C interfaceOFF: CM4 will be booted from eMMC or TF card
- UPS module ON/OFFON: CM4 and the base board will be powered by UPS moduleOFF: Turn off the UPS power supply to CM4 and base board
- DC power supply7 ~ 36V DC input
- Dual non-isolated RS485 2x RS485, with 600W lightningproof, anti-surge, and 15KV ESD protection (reserved 120R optional balancing resistor jumper)
- Non-isolated CAN ESD protection and transient spike voltage protection (reserved 120R optional balancing resistor jumper)
- TF card slotfor connecting a TF card with pre-burnt image (Lite variant ONLY)
- FAN headerfor connecting cooling fan, allows speed adjustment and measurement
- CAMMIPI CSI camera port, 15Pin 1mm pitch
- RTC battery holdersupports CR1220 button cell
- M.2 VCC selectionselect 3.3V or 4.2V power supply
- RTC interruption configurationPI-RUN: CM4 will reboot on RTC interruptionGL-EN: CM4 power down on RTC interruptionD17: D17 pin is triggered on RTC interruption (default)
- IO-VREF selectionset the CM4 IO logic level as 3.3V (default) or 1.8V
- FAN power supply selectionselect 12V (default) or 5V power to drive the fan
- System function configurationBT_DIS: Bluetooth disabled, for CM4 with antenna variant ONLYWiFi_DIS: WiFi disabled, for CM4 with antenna variant ONLYWP_DIS: boot mode switch, ONLY be used when NOT booted from eMMC or SD card
- RTC/FAN I2C bus selection SDA0/SCL0: I2C-10 is shared with CSI/DSI (default) GPIO3/2: I2C-1 is shared with GPIO header
- Partial GPIO headerincluding 1x I2C, 2x GPIO pins, and power supply
- UPS Module Mini header
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Lieferumfang
Package Contains
- CM4-IO-WIRELESS-BASE-B x1
- Screwdriver x1
- OPTIONS 4G module SIM7600G-H-M.2 x112V 2A power adapter x1 PCB antenna (IPEX connector) x1Screws pack x1
