High Quality Camera for Raspberry Pi / Raspberry Pi Compute Module / Jetson Nano / RDK Series, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- and CS-mount Lenses
Product information "High Quality Camera for Raspberry Pi / Raspberry Pi Compute Module / Jetson Nano / RDK Series, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- and CS-mount Lenses"
Kurzbeschreibung: High Quality Camera For Raspberry Pi Compute Module / Jetson Nano, 12.3MP IMX477 Sensor, High Sensitivity, Supports C- And CS-Mount Lenses
High Resolution High Sensitivity IMX477 Sensor
Supports Raspberry Pi / Jetson Series / RDK Series Boards

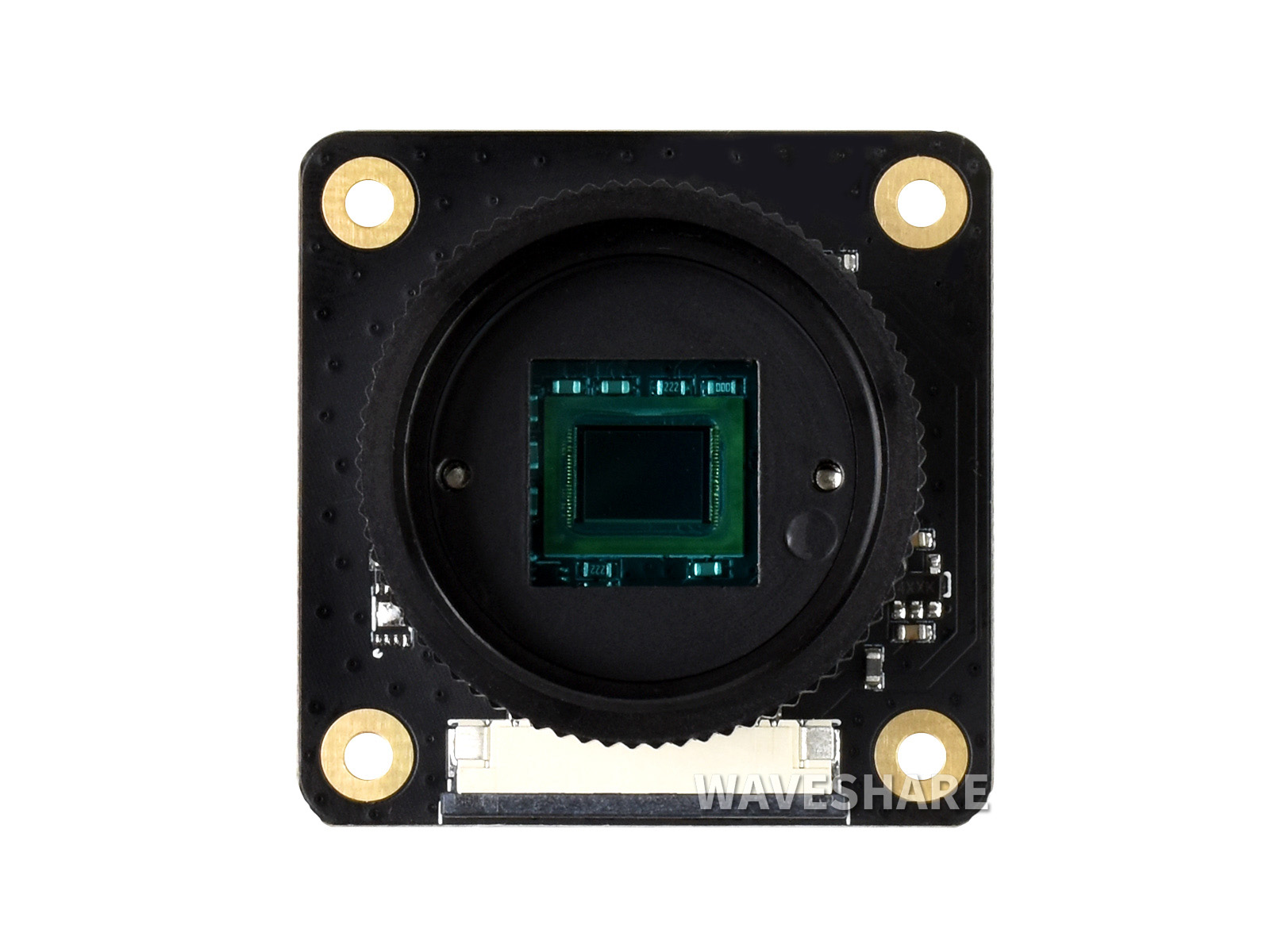

TheIMX477 12.3MP Camera is a high quality camera module which adopts the IMX477R sensor, and requires a C- or CS-mount lens to work. It is compatible with Raspberry Pi Compute Module and NVIDIA Jetson Nano, offers higher resolution (12.3MP) and higher sensitivity (nearly 50% greater area per pixel for improved low-light performance) than IMX219 cameras.
TheIMX477 12.3MP Camera is suitable for industrial and consumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity.
| Sensor | IMX477R |
|---|---|
| 12.3MP, 4056 (H) × 3040 (V) | |
| 7.9mm CMOS diagonal size | |
| 1.55µm (H) × 1.55µm (V) pixel size | |
| Output | RAW12 / 10 / 8, COMP8 |
| Back focus | Adjustable |
| Lens Support | C-mount / CS-mount (C-CS adapter included) |
| IR cut filter | Integrated |
| Product |  6mm Wide Angle Lens |  16mm Telephoto Lens |  25mm Telephoto Lens |  35mm Telephoto Lens |  8-50mm Zoom Lens |  100X Microscope Lens for Pi |
|---|---|---|---|---|---|---|
| Image format | 1/2" | 1" | 2/3" | 1" | 1/2.3" | 1/2" |
| Focal length | 6mm | 16mm | 25mm | 35mm | 8-50mm | - |
| Aperture | F1.2 | F1.4-16 | F1.4-16 | F1.7-16 | F1.4 | - |
| OPTICAL MAGNIFICATION | - | 0.12X~1.8X | ||||
| ZOOM RATIO | - | 15:01 | ||||
| Mount | CS-mount | C-mount | C/CS-mount | |||
| Angle of view | 63° | 1" 44.6° × 33.6° 2/3" 30.0° × 23.2° 1/1.8" 24.7° × 18.6° 1/2" 21.8° ×16.4° | 2/3" 20.2° × 15.1° 1/1.8" 16.5° × 12.4° 1/2" 14.5° × 10.5° | 1" 20.9° × 15.8° 2/3" 14.4° × 10.8° 1/2" 10.5° × 7.9° | 45°-5.35° | - |
| Back focus | 7.53mm | 17.53mm | - | |||
| Optical length | - | 67.53mm | - | |||
| Distortion | - | 1"（-0.7%） 1/2"（-0.5%） 1/3"（-0.15%） | 0.05% | 0.35% | - | < -0.1% |
| M.O.D. | 0.20m | 0.20m | 0.25m | 0.30m | 0.20m | 2.4mm |
| Dimensions | Φ30.00 × 34.00mm | Φ39.00 × 50.00mm | Φ34.00 × 34.00mm | Φ35.00 × 34.00mm | Φ40.00×68.30mm | Φ39.00×112.00mm |
| Operation | Manual aperture adjustment | Fixed aperture | ||||
| Weight | 53g | 133.7g | 82g | 78g | 148g | 202g |
Compared to 8MP of normal Raspberry Camera, this high quality camera offers up to 12.3MP, along with nearly 50% greater area per pixel, delivering better imaging effect
C-mount 16mm Telephoto Lens(C-CS adapter required)
CS-mount 6mm Wide Angle Lens(C-CS adapter should be removed)
* for reference only, please refer to the Package Content for detailed part list
Compatible With Raspberry Pi Series, Jetson Series (Specific driver is required), RDK Series Boards, and CM3/3+/4/5 Series, Zero Series
Connecting with Raspberry Pi 4B
Connecting with Raspberry Pi 5
Connecting with CM5 IO Board
Connecting with Zero 2 W
Connecting with Jetson Nano Kit
Connecting with Jetson Orin Kit
Connecting with RDK X5
| Part Number | Pixels | Sensor | CMOS Size | IR-CUT Filter | Lens Support | FoV (°) | Aper-ture (F) | Focal Length (mm) | Dimen-sions (mm) | For use with |
|---|---|---|---|---|---|---|---|---|---|---|
| Raspberry Pi HQ Camera | 12.3MP | IMX477 | 7.9mm | integrated | C/CS | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4/5 |
| IMX477 12.3MP Camera | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4, Jetson series boards | |||||
| Raspberry Pi HQ Camera M12 | M12 | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4/5 | ||||
| IMX477 IR-CUT Camera (A) | 90 | 2.0 | 3.95 | 38*38 | Raspberry Pi, CM3/3+/4/5, Jetson series boards | |||||
| IMX477-160 12.3MP Camera | 160 | 2.2 | 2.75 | 25*24 | Raspberry Pi, CM3/3+/4/5, Jetson series boards | |||||
| Raspberry Pi Global Shutter Camera | 1.6MP | IMX296 | 6.3mm | C/CS | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4/5 | |
| IMX296 Global Camera (A) | 1.6MP | IMX296 | 6.3mm | C/CS | - | - | - | 38*38 | Raspberry Pi, CM3/3+/4/5 | |
| IMX296-130 BW Camera | 1.6MP | IMX296 | 6.3mm | M12 | 130 | 1.6 | 3.0 | 38*38 | Raspberry Pi, CM3/3+/4/5 |
Lieferumfang
- IMX477 12.3MP Camera main unit x1
- 15PIN FFC (opposite sides contact) x1
- C-CS adapter and dust cap x1
- RPi Zero V1.3 Camera Cable ~15cm x1
