Ethernet / USB HUB HAT (B) for Raspberry Pi Series, 1x RJ45, 3x USB 2.0
Product number:
WSAL20416
Product information "Ethernet / USB HUB HAT (B) for Raspberry Pi Series, 1x RJ45, 3x USB 2.0"
Ethernet / USB HUB HAT (B) for Raspberry Pi series, 1x RJ45 Ethernet Port, 3x USB 2.0 Ports
Ethernet / USB HUB HAT (B)
Suitable for Raspberry Pi series
1x RJ45 Ethernet Port | 3x USB 2.0 Ports
Features at a glance
TheETH/USB HUB HAT (B) is an Ethernet and USB HUB designed for Raspberry Pi, providing 1x RJ45 Ethernet port and 3x USB 2.0 ports. It's pogo pin design is specialized for Zero series, while the onboard normal USB connector can be used to connect with other Raspberry Pi boards through a USB cable.
- 3x extended USB ports, compatible with USB 2.0 / 1.1

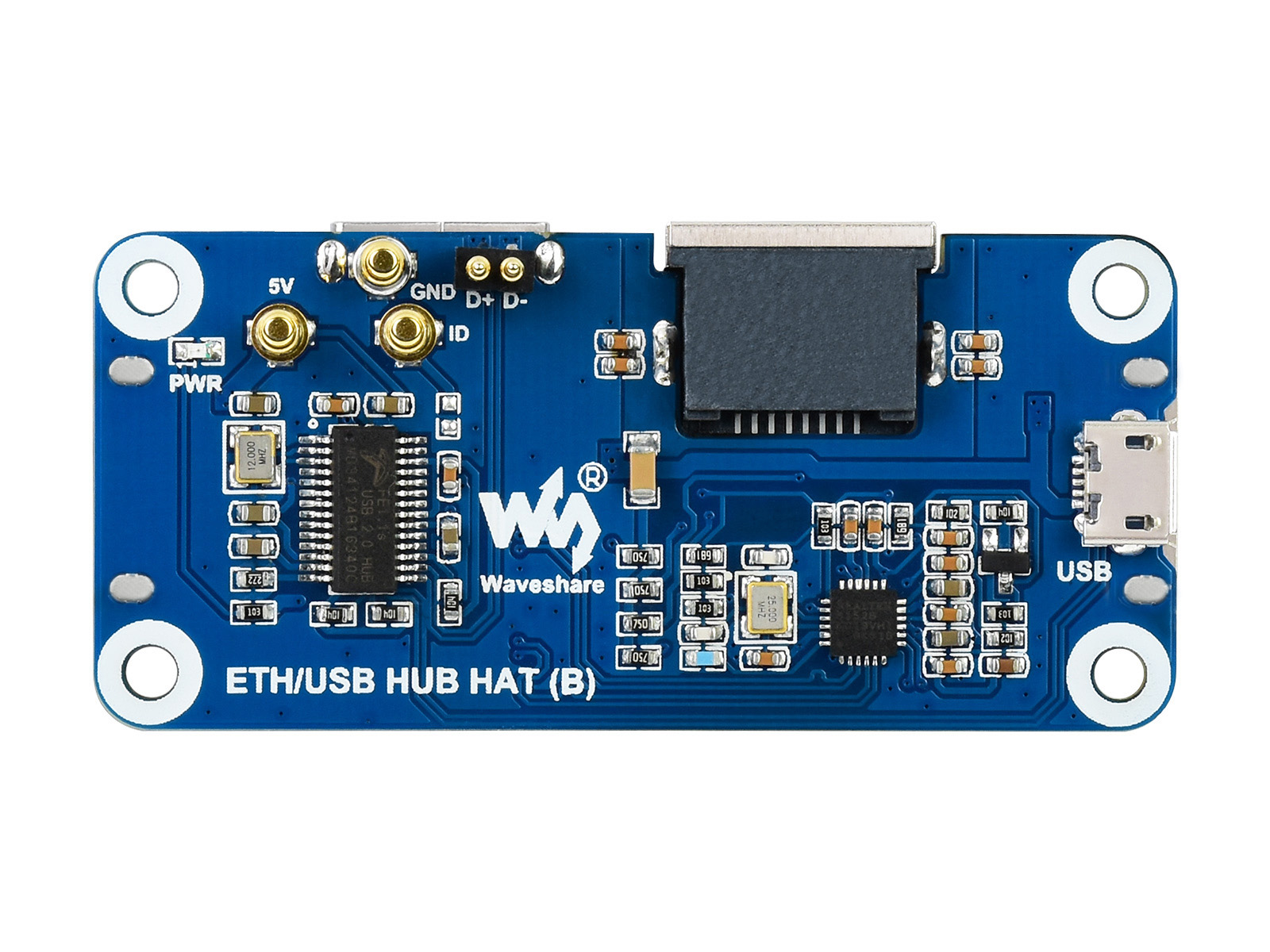

- Incorporates RTL8152B Ethernet chip, supports 1x RJ45 Ethernet port, 10/100M auto-negotiation

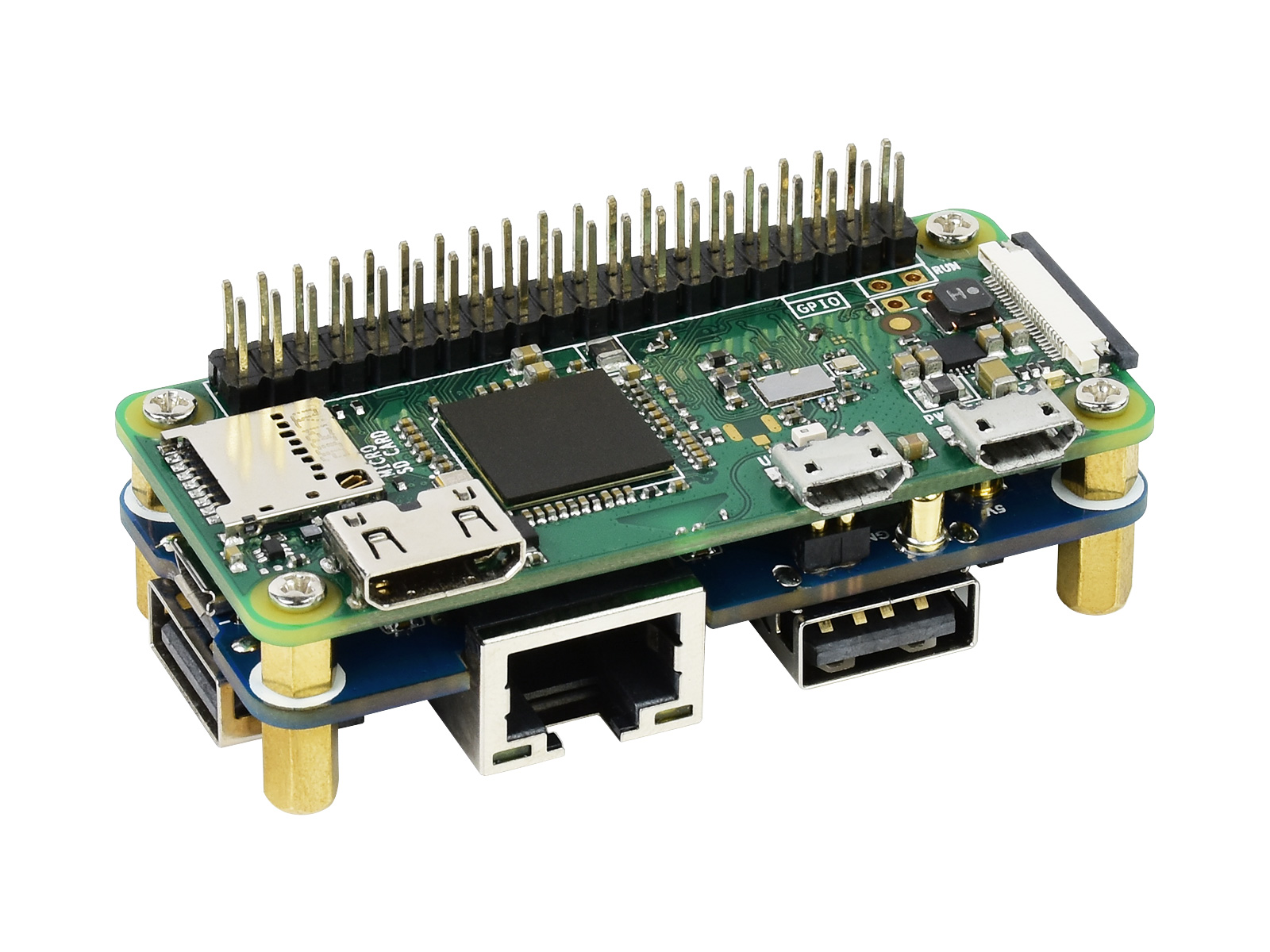

- Pogo pin design, for direct connecting with Raspberry Pi Zero/Zero 2W/Zero W/Zero WH
- USB HUB connector, for connecting with Raspberry Pi 4B/3B+/3A+/2B through USB cable
Compatible with Raspberry Pi series
specialized pogo pin for Zero series, plug-and-play, without preventing other HATsnormal USB HUB connector for other Raspberry Pi boards or PC
extended ports

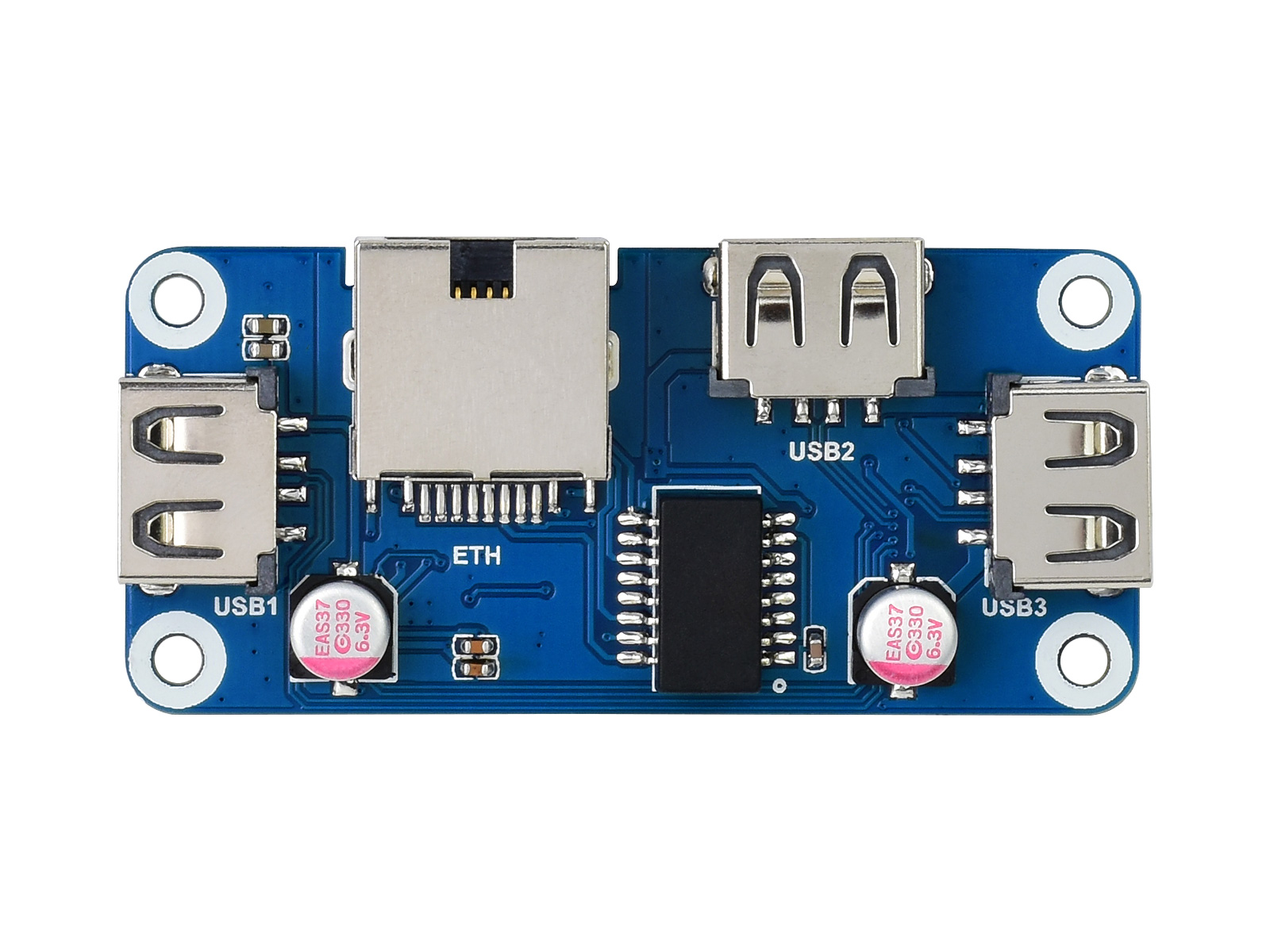

1x RJ45 Ethernet port, 10/100M auto-negotiation3x USB 2.0 ports, compatible with USB 2.0 / 1.1
Outline dimensions
Lieferumfang
- ETH/USB HUB HAT (B) x1
- Screws pack x1
