ESP32-C6 1.43inch AMOLED Round Touch Display Development Board, 160MHz RISC-V Processor, 466×466 Pixels, QSPI Interface, Onboard Dual Microphone Array, ESP32 With Display

€39.26*

Stk

Product number: WSAL31905

Product information "ESP32-C6 1.43inch AMOLED Round Touch Display Development Board, 160MHz RISC-V Processor, 466×466 Pixels, QSPI Interface, Onboard Dual Microphone Array, ESP32 With Display"

ESP32-C6-Touch-AMOLED-1.43

Embedded with CO5300 Display Driver and FT6146 Capacitive Touch Chip

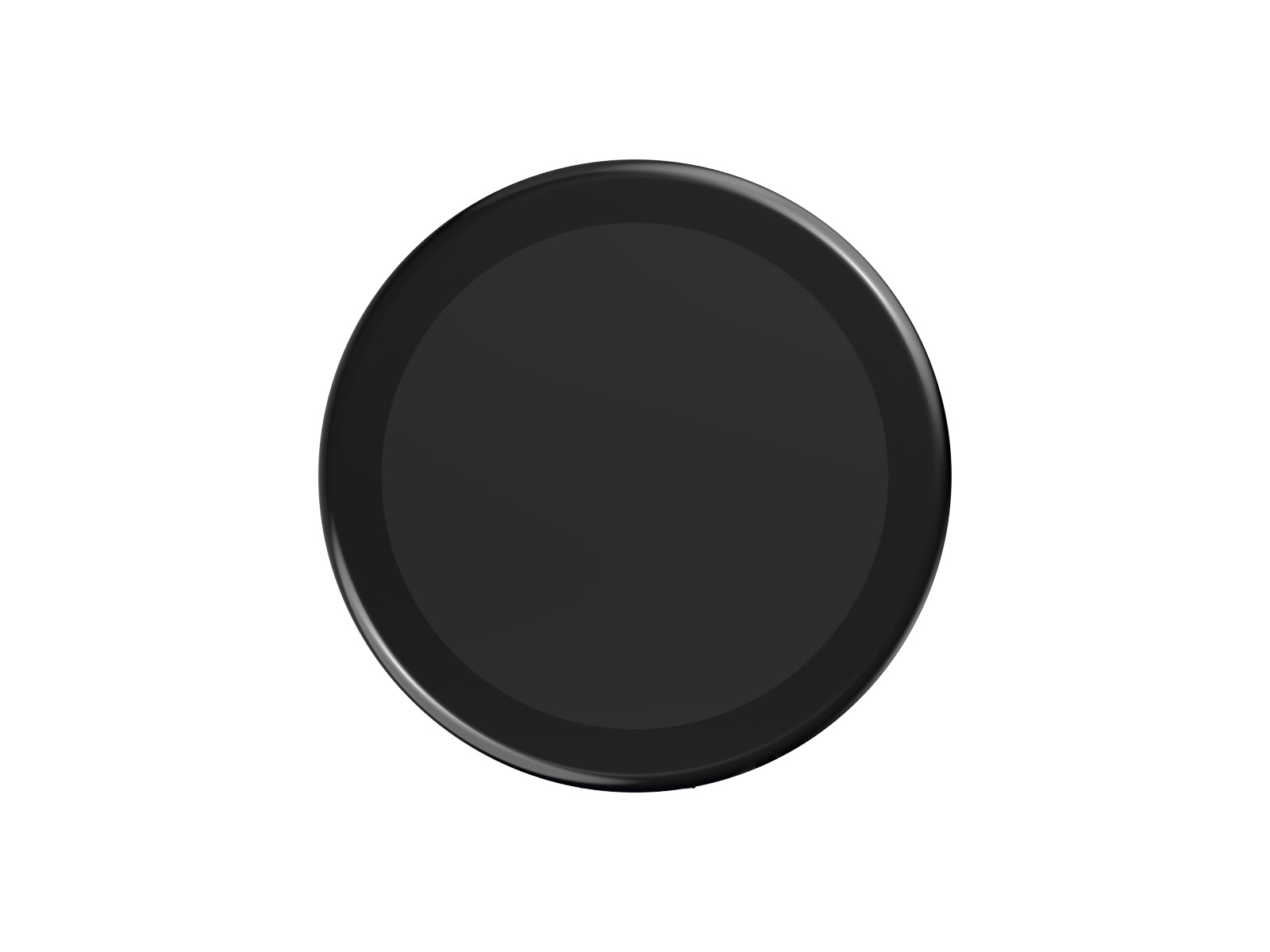

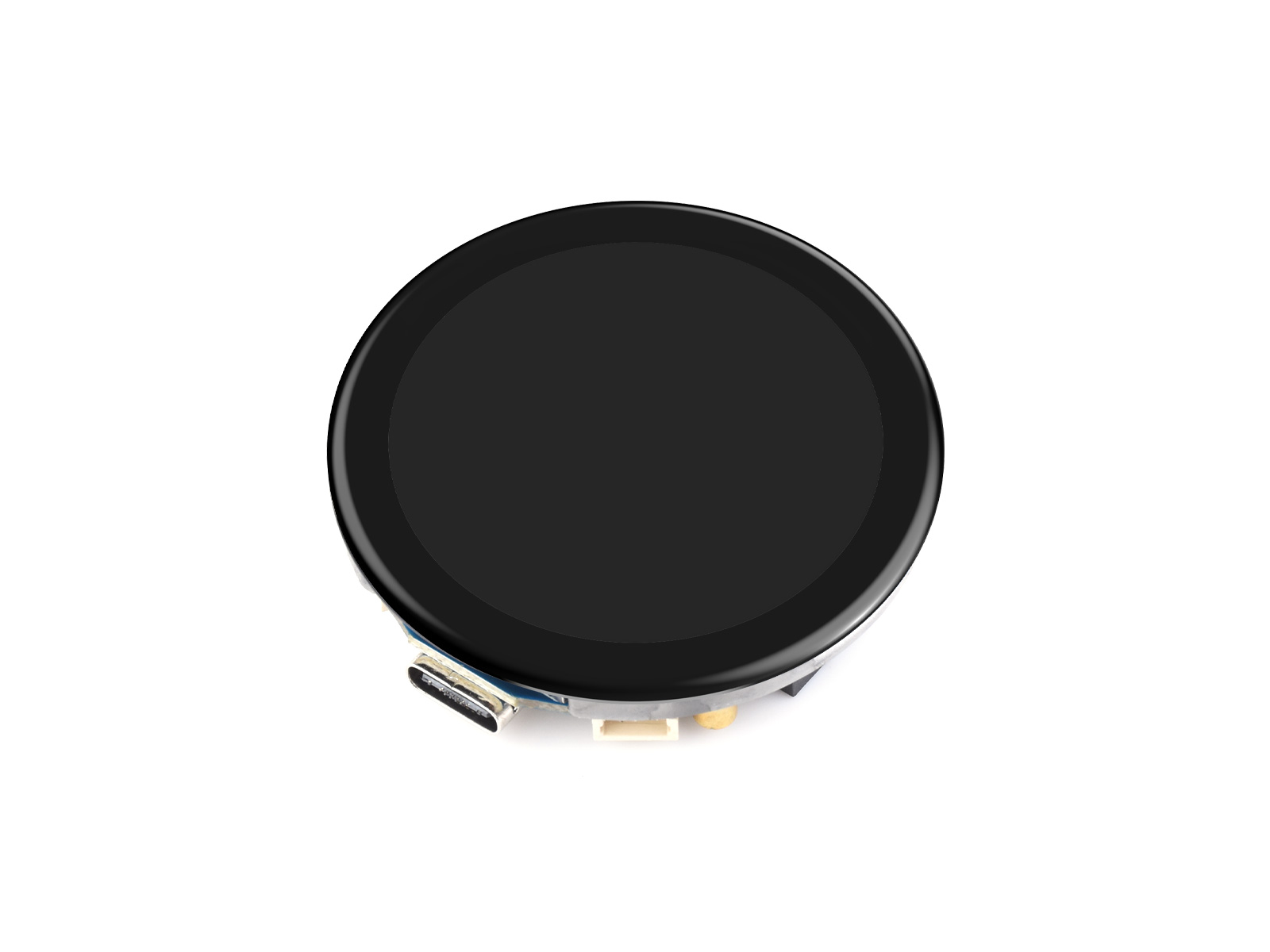

ESP32-C6 1.43inch AMOLED touch display development board, front view

ESP32-C6 1.43inch AMOLED touch display development board, features

Version Options

ESP32-C6-Touch-AMOLED-1.43Standard version, without case

ESP32-C6-Touch-AMOLED-1.43-B with protective case

Features

TheESP32-C6-Touch-AMOLED-1.43 is a high-performance, highly integrated MCU board designed by Waveshare, integrates high-capacity Flash. Onboard 1.43inch AMOLED capacitive touch display, highly integrated RTC chip, 6-axis IMU, TF card slot, low power audio encoding and decoding chips, dual MIC circuit, Lithium battery header, and so on. Reserved USB, UART, I2C, and GPIO interfaces for flexible expansion, which makes it easy for you to develop and integrate into the products quickly.

Equipped with ESP32-C6 high-performance 32-bit RISC-V processor with clock speed up to 160 MHz
Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
Built-in 512KB HP SRAM, 16KB LP SRAM, 320KB ROM and 16MB Flash memory
Onboard 1.43inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color
Built-in CO5300 display driver and FT6146 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
Equipped with dual microphones array, supporting richer voice interaction functions, suitable for accurate speech recognition and near-field / far-field voice wake-up applications
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Onboard PCF85063 RTC chip for RTC functionality requirement
Onboard PWR and BOOT programmable buttons for easy custom function development
Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
Onboard UART and I2C SH1.0 4PIN connectors, reserved two 2 × 4PIN 2.54mm pitch headers
Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
Optional for CNC metal case, with clear and colorful label on the back, nice looking and easy to carry

AMOLED parameters

Display Panel	AMOLED	Display Size	1.43 inch
Resolution	466 × 466 pixels	Display Colors	16.7M
Brightness	350 cd/㎡	Contrast Ratio	60000:1
Communication Interface	QSPI	Driver IC	CO5300
Touch	Supported	Touch IC	FT6146

Small Size, Touch More Possibilities

Suitable For Various Smart Device Development, and Can Realize Human-Computer Interaction Function. Supports connecting to a battery for independent operation

ESP32-C6 1.43inch AMOLED touch display development board, touch demo

Adopts AMOLED screen

The next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid videos and images

178° wide viewing angle

Excellent Display Performance, 16.7M color, wide viewing angle

ESP32-C6 Touch AMOLED 1.43, with wide viewing angle

Onboard audio encoding and decoding chips

Supports high-quality audio processing, providing clear and high-quality audio input and output

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.

ESP32-C6 Touch AMOLED 1.43, allows accessing to online large model platforms

ESP32-C6 Touch AMOLED 1.43, AI speech interaction demo

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, dev resources, tutorials to help you easily get started

ESP32-C6 Touch AMOLED 1.43, supports ESP-IDF

ESP32-C6 Touch AMOLED 1.43, supports Arduino

ESP32-C6 suitable for AIoT applications

Equipped with a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor

ESP32-C6 Touch AMOLED 1.43, onboard ESP32-C6 chip

WIFI 6 and BLE 5 support

Supports WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

What's On Board

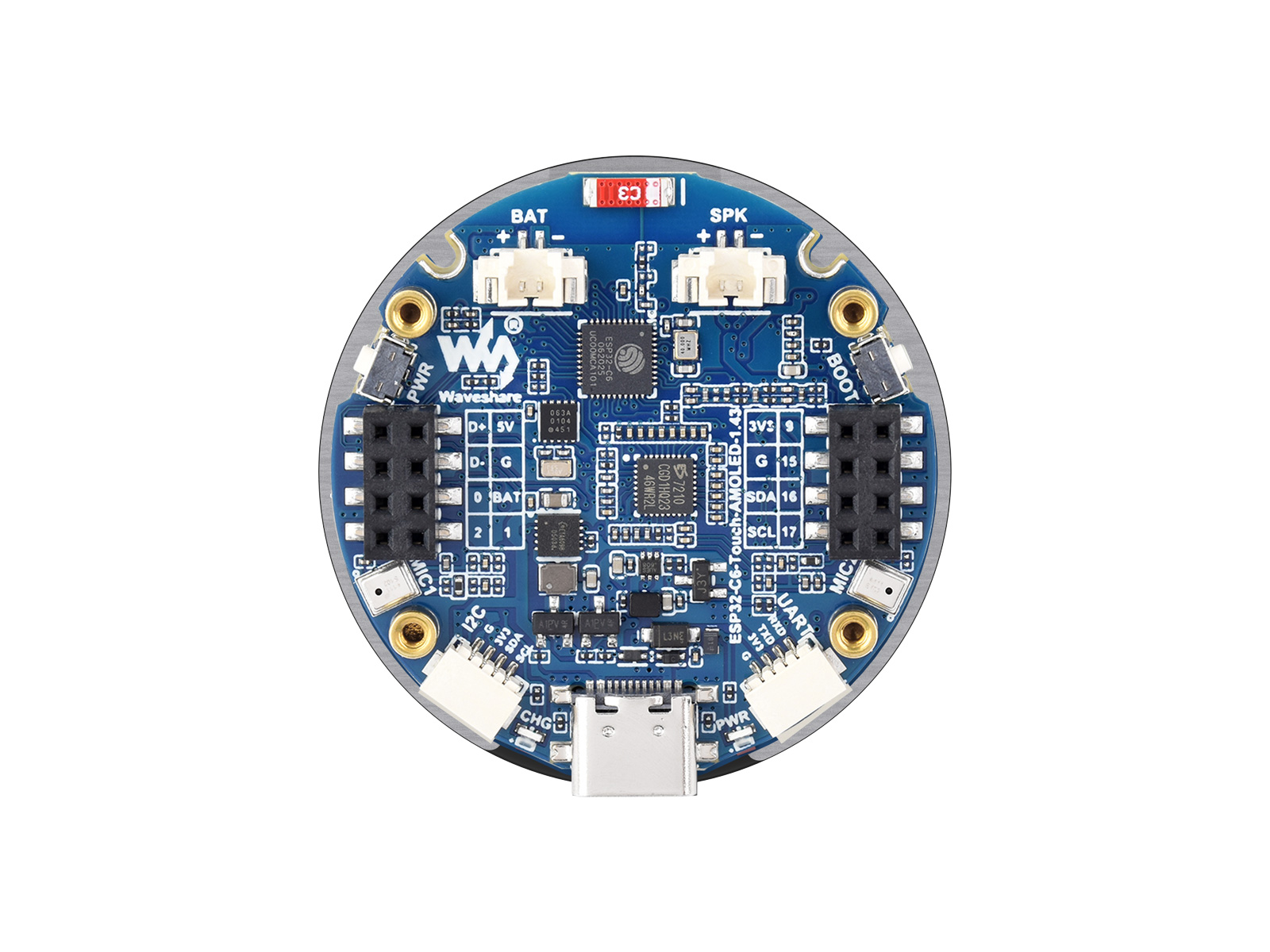

ESP32-C6 1.43inch AMOLED touch display development board, onboard components

ESP32-C6 RISC-V 32-bit single-core processor, up to 160MHz operating frequency, with 2.4GHz Wi-Fi 6 and BLE 5 support
Onboard antenna Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
ES7210 ADC audio decoding chipHigh-performance and low-power audio ADC, supporting multi-channel microphone input
MX1.25 2PIN Lithium battery header for 3.7V Lithium battery, supports charging and discharging
MX1.25 2PIN speaker header Audiot signal output, supports connecting external speakers
Dual microphonesDual microphones array, supporting richer voice interaction functions
SH1.0 4PIN I2C headerStandard I2C bus interface for easy expansion with sensors and other devices
SH1.0 4PIN UART headerfor debugging or data communication with other modules
PWR button for power supply ON/OFF when powered by Lithium battery, driver required

BOOT button Press and hold the BOOT button, then power up again to enter download mode
PCF85063 RTC chip
Two 2 × 4PIN headers (2.54mm pitch) for external module expansion
Type-C portfor program burning and log printing
W25Q128JVSI16MB Flash
ES8311 DAC audio encoding chipHigh-performance and low-power audio DAC
QMI8658 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
TCA9554PWR 8-bit I2C GPIO expander chip
TF card slot Supports FAT32-formatted TF cards for data expansion

outline dimensions

without case

with protective case

ESP32-C6 1.43inch AMOLED touch display development board, outline dimensions with case

Resources & Services

Wiki:www.waveshare.com/wiki/ESP32-C6-Touch-AMOLED-1.43

ESP32 LCD Selection

Model	Core Configuration			display				onboard resources						Peripheral interfaces
Model	CPU	PSRAM	Flash	pixels	Interface	Display	Touch	IMU	RTC	TF	Speaker	mic	batteryheader	Peripheral interfaces
AMOLED display
ESP32-S3-Touch-AMOLED-2.41	ESP32-S3R8	8MB	16MB	600 × 450	QSPI	RM690B0	FT6336	√	√	√	-	-	√	I2C, UART, USB, 34PIN GPIO header
ESP32-S3-Touch-AMOLED-2.41-B	ESP32-S3R8	8MB	16MB	600 × 450	QSPI	RM690B0	FT6336	√	√	√	-	-	√	I2C, UART, USB, 34PIN GPIO header, with case
ESP32-C6-Touch-AMOLED-2.16	ESP32-C6	-	16MB	480 × 480	QSPI	CO5300	CST9220	√	√	√	√	√	√	I2C, UART, USB, and GPIO pads
ESP32-S3-Touch-AMOLED-2.16	ESP32-S3R8	8MB	16MB	480 × 480	QSPI	CO5300	CST9220	√	√	√	√	√	√	I2C, UART, USB, and GPIO pads
ESP32-S3-Touch-AMOLED-2.06	ESP32-S3R8	8MB	32MB	410 × 502	QSPI	CO5300	FT3168	√	√	√	√	√	√	I2C, UART, and USB reserved pads
ESP32-C6-Touch-AMOLED-2.06	ESP32-C6	-	16MB	410 × 502	QSPI	CO5300	FT3168	√	√	-	√	√	√	I2C, UART, and USB reserved pads
ESP32-S3-Touch-AMOLED-1.91	ESP32-S3R8	8MB	16MB	240 × 536	QSPI	RM67162	FT3168	√	-	√	-	-	√	40PIN header
ESP32-S3-AMOLED-1.91	ESP32-S3R8	8MB	16MB	240 × 536	QSPI	RM67162	-	√	-	√	-	-	√	40PIN header
ESP32-C6-Touch-AMOLED-1.8	ESP32-C6	-	16MB	368 × 448	QSPI	SH8601	FT3168 / FT6146	√	√	√	√	√	√	I2C, UART, USB pads
ESP32-S3-Touch-AMOLED-1.8	ESP32-S3R8	8MB	16MB	368 × 448	QSPI	SH8601	FT3168 / FT6146	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-Touch-AMOLED-1.75	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	CO5300	CST9217	√	√	√	√	√	√	I2C, UART, USB, 8PIN headers (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.75-B	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	CO5300	CST9217	√	√	√	√	√	√	I2C, UART, USB, 8PIN headers (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.75C	ESP32-S3R8	8MB	32MB	466 × 466	QSPI	CO5300	CST9217	√	-	-	√	√	√	I2C, UART, USB, GPIO pads
ESP32-C6-Touch-AMOLED-1.64	ESP32-C6	-	16MB	280 × 456	QSPI	CO5300	FT6146	√	-	√	-	-	√	22PIN header (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.64	ESP32-S3R8	8MB	16MB	280 × 456	QSPI	CO5300	FT3168	√	-	√	-	-	√	2 × 11PIN headers (2.54mm pitch)
ESP32-C6-Touch-AMOLED-1.43	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	FT6146	√	√	√	√	√	√	UART, I2C, 16PIN header (2.54mm pitch)
ESP32-C6-Touch-AMOLED-1.43-B	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	FT6146	√	√	√	√	√	√	UART, I2C, 16PIN header (2.54mm pitch)
ESP32-S3-Touch-AMOLED-1.43	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	SH8601/C05300	FT3168/FT6146	√	√	√	-	-	√	I2C, UART, USB, 2 × 14PIN headers
ESP32-S3-Touch-AMOLED-1.43-B	ESP32-S3R8	8MB	16MB	466 × 466	QSPI	SH8601/C05300	FT3168/FT6146	√	√	√	-	-	√	I2C, UART, USB, 2 × 14PIN headers
ESP32-C6-Touch-AMOLED-1.32	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
ESP32-C6-Touch-AMOLED-1.32	ESP32-C6	-	16MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
ESP32-S3-Touch-AMOLED-1.32	ESP32-S3-PICO-1-N8R8	8MB	8MB	466 × 466	QSPI	CO5300	CST820	-	-	-	√	√	√	SH1.0 12PIN header
LCD display
ESP32-Touch-LCD-3.5	ESP32-D0WDR2-V3	2MB	16MB	320 × 480	SPI	ST7796	FT6336	-	√	√	√	√	√	32PIN GPIO header
ESP32-S3-Touch-LCD-3.5	ESP32-S3R8	8MB	16MB	320 × 480	SPI	ST7796	FT6336	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5	ESP32-S3R8	8MB	16MB	320 × 480	SPI	ST7796	FT6336	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5B	ESP32-S3R8	8MB	16MB	320 × 480	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.5B	ESP32-S3R8	8MB	16MB	320 × 480	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	32PIN GPIO header, camera interface
ESP32-S3-Touch-LCD-3.49	ESP32-S3R8	8MB	16MB	172 × 640	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	22pin 2.54mm pitch pads
ESP32-S3-Touch-LCD-3.49B	ESP32-S3R8	8MB	16MB	172 × 640	QSPI	AXS15231B	AXS15231B	√	√	√	√	√	√	22pin 2.54mm pitch pads
ESP32-S3-LCD-3.16	ESP32-S3R8	8MB	16MB	320 × 820	RGB	ST7701	-	√	√	√	-	-	√	I2C, UART, USB headers
ESP32-S3-Touch-LCD-2.8	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789	CST328	√	√	√	√	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-LCD-2.8	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789	-	√	√	√	√	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2.8B	ESP32-S3R8	8MB	16MB	480 × 640	RGB	ST7701	GT911	√	√	√	-	-	√	20PIN header
ESP32-S3-LCD-2.8B	ESP32-S3R8	8MB	16MB	480 × 640	RGB	ST7701	-	√	√	√	-	-	√	20PIN header
ESP32-S3-Touch-LCD-2.8C	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	GT911	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-LCD-2.8C	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	-	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2.1	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	CST820	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2.1B	ESP32-S3R8	8MB	16MB	480 × 480	RGB	ST7701	CST820	√	√	√	-	-	√	I2C, UART, SH1.0 12PIN header
ESP32-S3-Touch-LCD-2	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789T3	CST816	√	-	√	-	-	√	28PIN header, camera interface
ESP32-S3-LCD-2	ESP32-S3R8	8MB	16MB	240 × 320	SPI	ST7789T3	-	√	-	√	-	-	√	28PIN header, camera interface
ESP32-S3-Touch-LCD-1.9	ESP32-S3R8	8MB	16MB	170 × 320	SPI	ST7789	CST816	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-S3-LCD-1.9	ESP32-S3R8	8MB	16MB	170 × 320	SPI	ST7789	-	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-C6-Touch-LCD-1.9	ESP32-C6FH8	-	8MB	170 × 320	SPI	ST7789	CST816	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-C6-LCD-1.9	ESP32-C6FH8	-	8MB	170 × 320	SPI	ST7789	-	√	-	√	-	-	√	40PIN header, compatible with Pico header
ESP32-S3-Touch-LCD-1.85C	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	-	√	√	√	√	√	I2C, UART, 2×14PIN header (1.27mm pitch)
ESP32-S3-Touch-LCD-1.85C-BOX	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	-	√	√	√	√	√	I2C, UART, 2×14PIN header (1.27mm pitch)
ESP32-S3-Touch-LCD-1.85	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	CST816	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-LCD-1.85	ESP32-S3R8	8MB	16MB	360 × 360	QSPI	ST77916	-	√	√	√	√	√	√	I2C, UART, GPIO pads
ESP32-S3-Touch-LCD-1.83	ESP32-S3R8	8MB	16MB	240 × 284	SPI	ST7789P	CST816D	√	√	√	√	√	√	Reserved I2C, UART, USB pads

ESP32-C6-Touch-LCD-1.83ESP32-C6-16MB240 × 284SPIST7789PCST816D√√√√√√Reserved I2C, UART, USB pads ESP32-C6-Touch-LCD-1.69-1_460.jpg

ESP32-C6-Touch-LCD-1.69ESP32-C6-16MB240 × 280SPIST7789V2CST816T√√-√√√Reserved USB, I2C, UART, and GPIO pads ESP32-C6-LCD-1.69-1_460.jpg

ESP32-C6-LCD-1.69ESP32-C6-16MB240 × 280SPIST7789V2-√√-√√√Reserved USB, I2C, UART, and GPIO pads ESP32-S3-Touch-LCD-1.69-1_460.jpg

ESP32-S3-Touch-LCD-1.69ESP32-S3R88MB16MB240 × 280SPIST7789CST816√√---√I2C, UART, GPIO pads ESP32-S3-LCD-1.69-1_460.jpg

ESP32-S3-LCD-1.69ESP32-S3R88MB16MB240 × 280SPIST7789-√√---√SH1.0 12PIN header ESP32-S3-LCD-1.54-1_460.jpg

ESP32-S3-LCD-1.54ESP32-S3R88MB16MB240 × 240SPIST7789-√-√√√√I2C, UART pads ESP32-S3-Touch-LCD-1.54-1_460.jpg

ESP32-S3-Touch-LCD-1.54ESP32-S3R88MB16MB240 × 240SPIST7789CST816√-√√√√I2C, UART pads ESP32-S3-Touch-LCD-1.47-1_460.jpg

ESP32-S3-Touch-LCD-1.47ESP32-S3R88MB16MB172 × 320SPIJD9853AXS5106L--√--√22PIN header ESP32-S3-LCD-1.47-1_460.jpg

ESP32-S3-LCD-1.47ESP32-S3R88MB16MB172 × 320SPIST7789---√---18PIN header ESP32-S3-LCD-1.47B-1_460.jpg

ESP32-S3-LCD-1.47BESP32-S3R88MB16MB172 × 320SPIST7789-√-√--√18PIN header ESP32-C6-Touch-LCD-1.47-1_460.jpg

ESP32-C6-Touch-LCD-1.47ESP32-C6FH8-8MB172 × 320SPIJD9853AXS5106L√-√--√22PIN header ESP32-C6-LCD-1.47-1_460.jpg

ESP32-C6-LCD-1.47ESP32-C6FH8-8MB172 × 320SPIST7789---√---18PIN header ESP32-S3-LCD-1.46-1_460.jpg

ESP32-S3-Touch-LCD-1.46BESP32-S3R88MB16MB412 × 412QSPISPD2010SPD2010√√√√√√20pin GPIO header ESP32-S3-Touch-LCD-1.46_460.jpg

ESP32-S3-Touch-LCD-1.46ESP32-S3R88MB16MB412 × 412QSPISPD2010SPD2010√√√√√√20pin GPIO header ESP32-C6-LCD-1.3-8_460.jpg

ESP32-C6-LCD-1.3ESP32-C6FH4-4MB240 × 240SPIST7789------√2.54mm 12PIN header ESP32-C6-LCD-1.3-M-8_460.jpg

ESP32-C6-LCD-1.3-MESP32-C6FH4-4MB240 × 240SPIST7789------√2.54mm 12PIN header ESP32-S3-LCD-1.3-1_460.jpg

ESP32-S3-LCD-1.3ESP32-S3R88MB16MB240 × 240SPIST7789-√-√--√2.54mm 16PIN header ESP32-S3-LCD-1.3-B-1_460.jpg

ESP32-S3-LCD-1.3-BESP32-S3R88MB16MB240 × 240SPIST7789-√-√--√2.54mm 16PIN header, with case ESP32-S3-LCD-1.3-C-1_460.jpg

ESP32-S3-LCD-1.3-CESP32-S3R88MB16MB240 × 240SPIST7789-√-√--√2.54mm 16PIN header, with case and prism cube ESP32-S3-Touch-LCD-1.28-1_460.jpg

ESP32-S3-Touch-LCD-1.28ESP32-S3R22MB16MB240 × 240SPIGC9A01ACST816√----√SH1.0 12PIN header ESP32-S3-LCD-1.28-1_460.jpg

ESP32-S3-LCD-1.28ESP32-S3R22MB16MB240 × 240SPIGC9A01A-√----√2 × 20PIN header (1.27mm pitch) ESP32-C3-LCD-0.71-6_460.jpg

ESP32-C3-LCD-0.71ESP32-C3FH4-4MB160 × 160SPIGC9D01------√12PIN GPIO pads ESP32-S3-LCD-0.85-2_460.jpg

ESP32-S3-LCD-0.85ESP32-S38MB8MB128 × 128SPIGC9107---√√√√I2C, UART pads

ESP32-C6-GEEKESP32-C6-16MB240 × 135SPIST7789P3---√---I2C, UART, GPIO

ESP32-S3-GEEKESP32-S3R22MB16MB240 × 135SPIST7789P3---√---I2C, UART, GPIO
