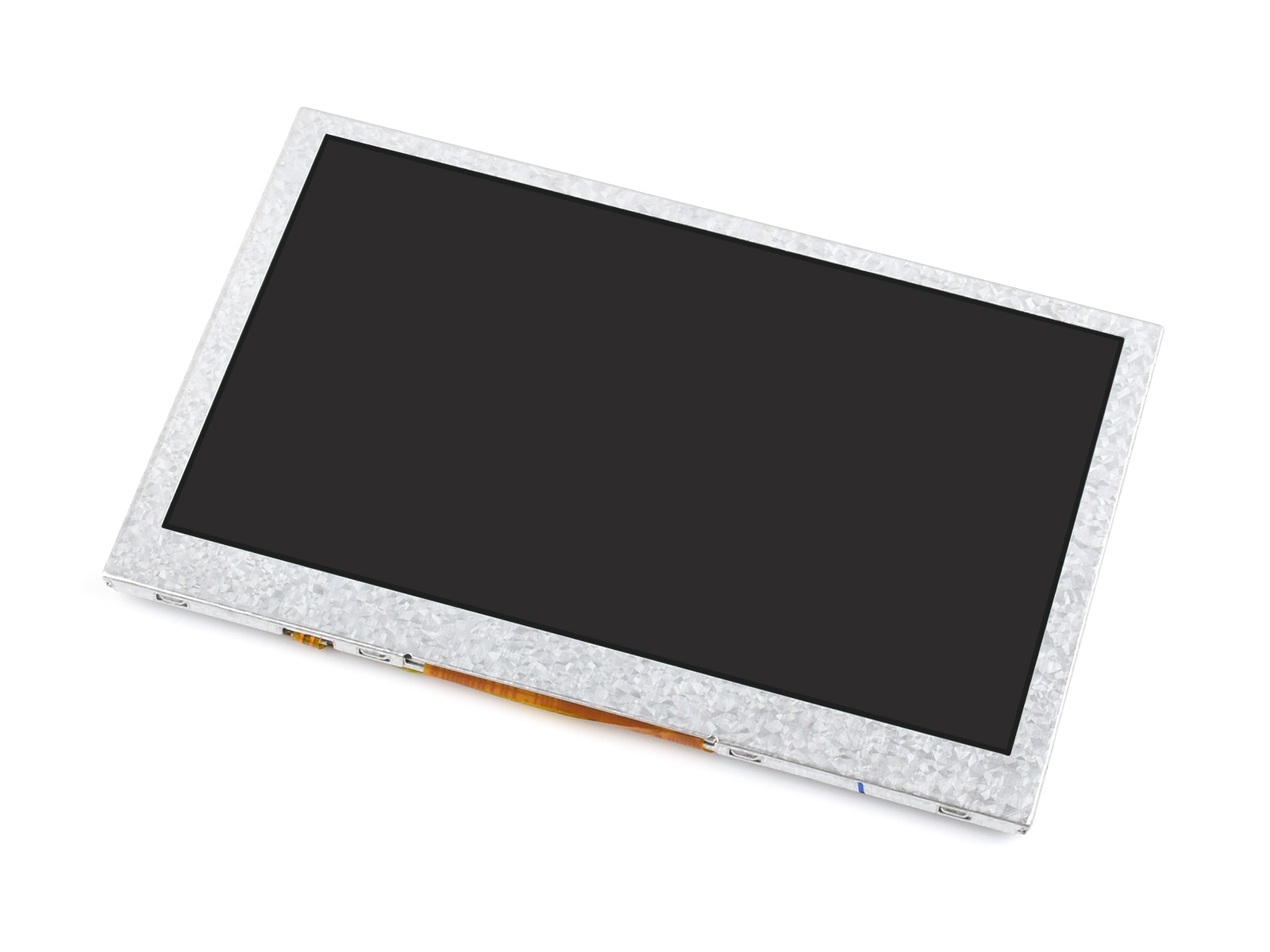

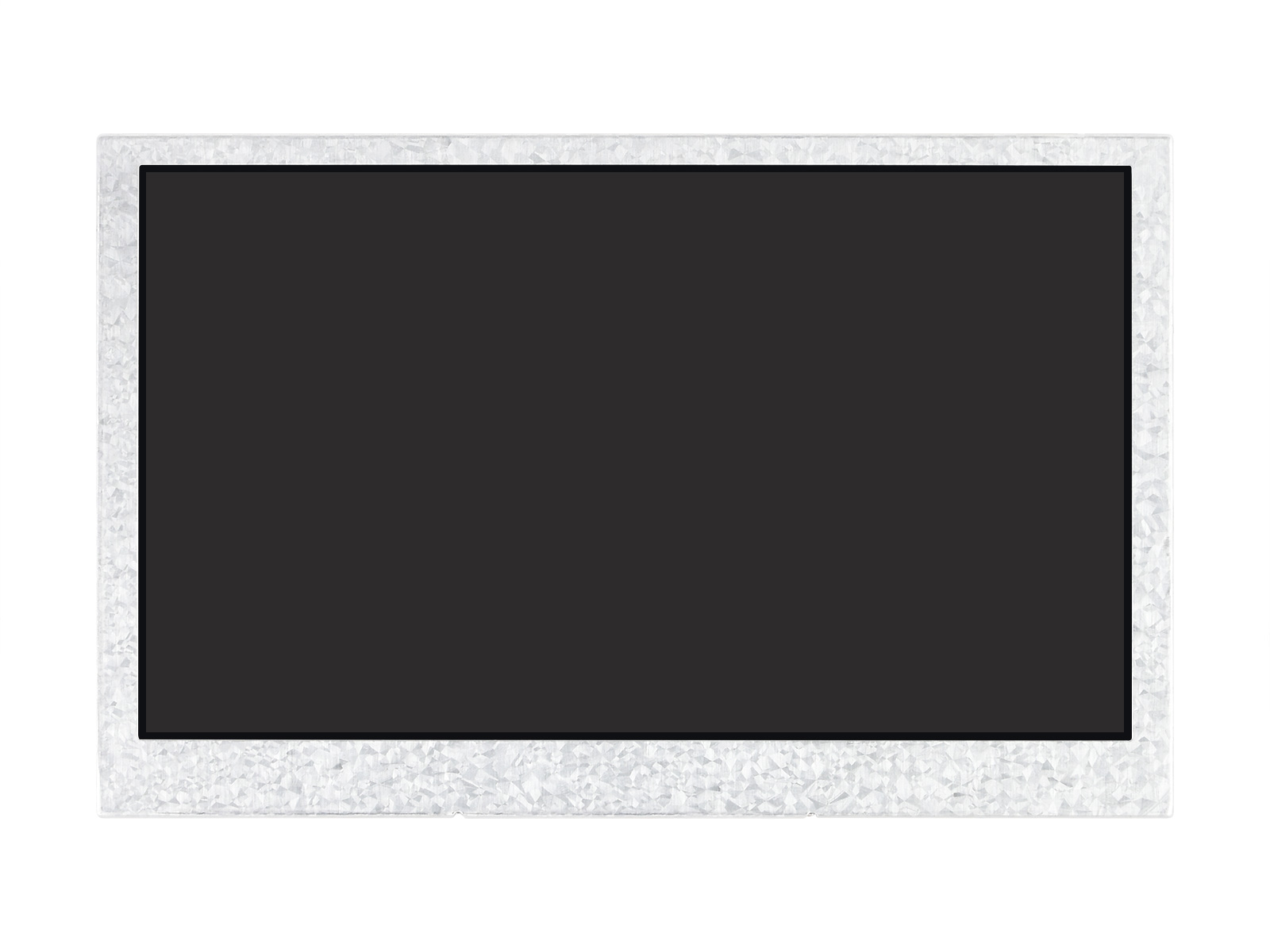

4.3inch DSI Display, 800 × 480, IPS/QLED Panel, Thin and Light Design, Touch Function Optional
Product information "4.3inch DSI Display, 800 × 480, IPS/QLED Panel, Thin and Light Design, Touch Function Optional"
Integrated Structure | Thin and Light Screen Design
- Size
4.3″ - Resolution
800×480 - Display Interface
DSI - Display Panel
IPS/QLED - Viewing Angle
160° - Touch Type
Capacitive (optional) - Touch Points
5-Point (optional) - Touch Interface
I2C (optional) - Touch Panel
Toughened Glass(optional) - Consumption
Low Power
RoHS2.0Certification 2
CE
Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*
DSI one-cable communication for embedding engineering applications quickly Provide secondary development resources to help simple development
Working with Raspberry Pi 4B via DSI interface
Working with Raspberry Pi 3B+ via DSI interface

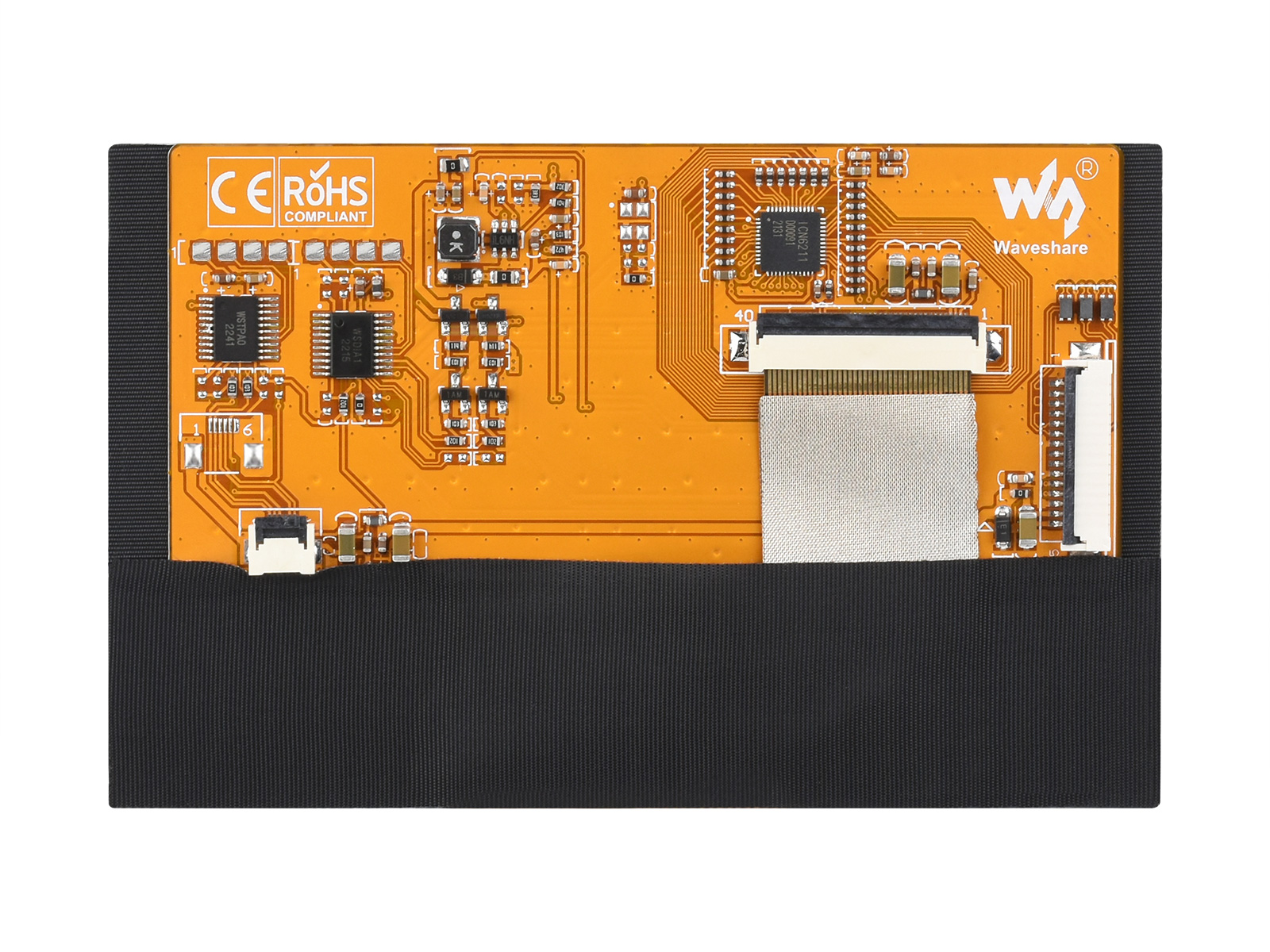

Integrate the driver circuit into an FPC, only needs 5mm thickness space
Excellent Display Performance With 160° Wide Viewing Angle
Wider color gamut
color gamut of this QLED display is up to: sRGB 90%, NTSC 78%
* This function is only available on the QLED version
More pure chroma
chroma of QLED increases 58.3%, makes the color more pure, more vivid
* This function is only available on the QLED version
Longer lifetime
due to its inorganic characteristic, the color life of QLED could be up to 60000 hours without color degradation
* This function is only available on the QLED version
Gently touch, and see what you get, enjoy multi-point UI interaction via Flexible operation. Adapting touch function with I2C signal, support 5-point touch
* This function is only available on the Touch Display version, the actual touch points depends on the operating system
| PART NUMBER | Resolution | Display Interface | Display Panel | Touch Interface | Touch Panel | Display size(mm) | Product size(mm) |
|---|---|---|---|---|---|---|---|
| 43H-800480-IPS | 800×480 | DSI | IPS | - | - | 95.04×53.86 | 105.42×67.07 |
| 43H-800480-IPS-CT | I2C | G+G | 95.04×53.86 | 106.10×67.80 | |||
| 43H-800480-IPS-CT-B | I2C | G+G | 95.04×53.86 | 112.40×75.10 | |||
| 43H-800480-QLED | QLED | - | - | 95.04×53.86 | 105.42×67.07 | ||
| 43H-800480-QLED-CT | I2C | G+G | 95.04×53.86 | 106.10×67.80 | |||
| 50H-800480-IPS | IPS | - | - | 108.00×64.80 | 120.70×75.80 | ||
| 50H-800480-IPS-CT | I2C | G+G | 108.00×64.80 | 127.70×87.45 |
Support the following ways to customize the touch screen display in bulk order
* Waveshare has been focusing on display design for over 15 years.
Lieferumfang
43H-800480-IPS/QLED Display
- OPTIONS IPS/QLED Display x1
- FPC 15 PIN cable (~ 50mm) x2
43H-800480-IPS/QLED Touch Display
- OPTIONS IPS/QLED Touch Display x1
- FPC 15 PIN cable (~ 50mm) x2
43H-800480-IPS-CT-B
- 43H-800480-IPS-CT-B x1
- FPC 15 PIN cable (~ 50mm) x2
