WIFI6 Dual ETH Mini-Computer, entwickelt für Raspberry Pi Compute Module 4 (NICHT enthalten), mit onboard M.2 E-Key-Slot

71,39 €*

Preise inkl. MwSt. zzgl. Versandkosten

Derzeit nicht auf Lager

Ein verbindlicher Liefertermin liegt derzeit nicht vor. Bitte fragen Sie die aktuelle Verfügbarkeit bei uns an.

Liefertermin anfragen Ein verbindlicher Liefertermin liegt derzeit nicht vor. Bitte fragen Sie die aktuelle Verfügbarkeit bei uns an.

Produktnummer: WSAL23809

Produktinformationen "WIFI6 Dual ETH Mini-Computer, entwickelt für Raspberry Pi Compute Module 4 (NICHT enthalten), mit onboard M.2 E-Key-Slot"

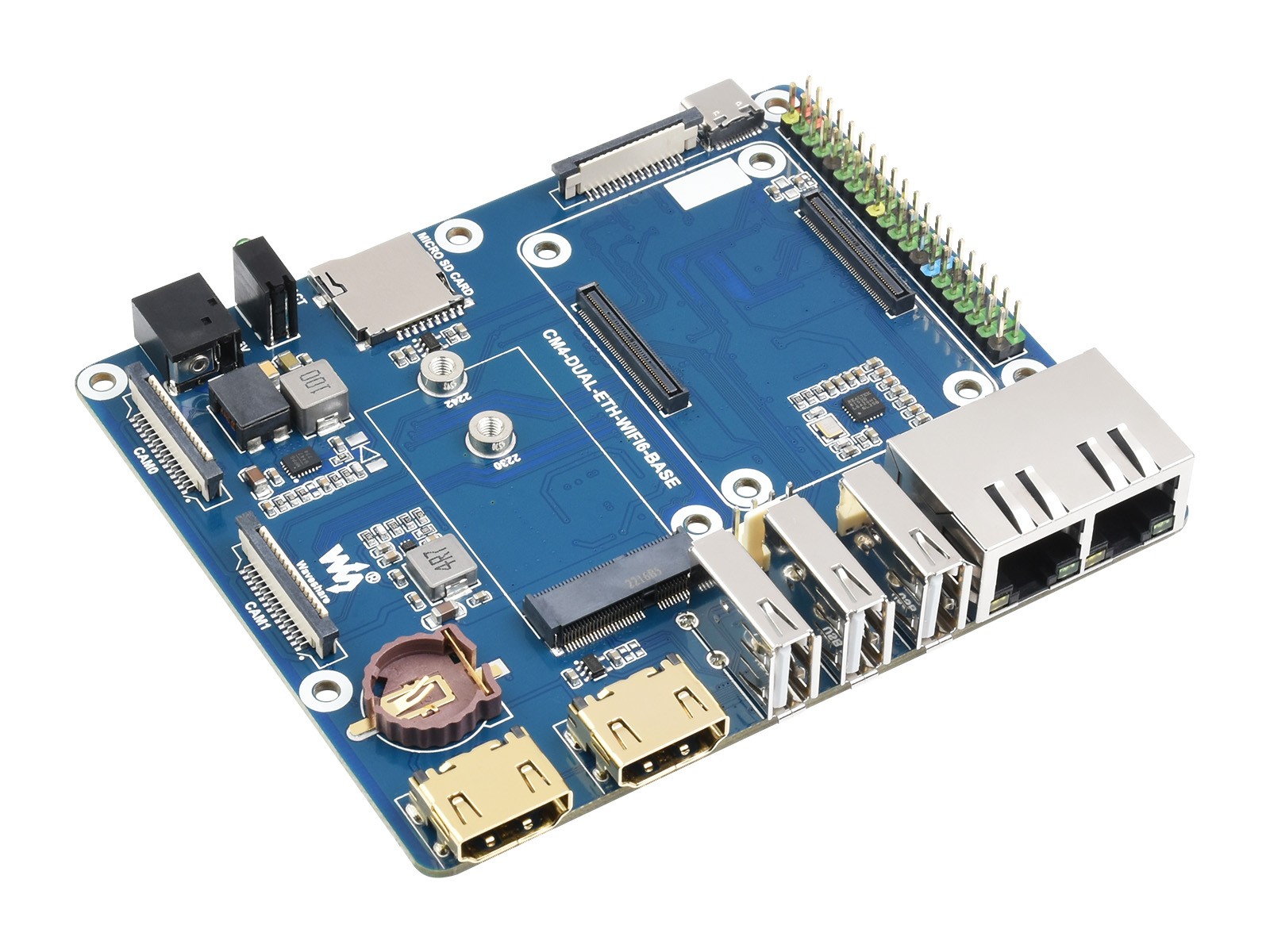

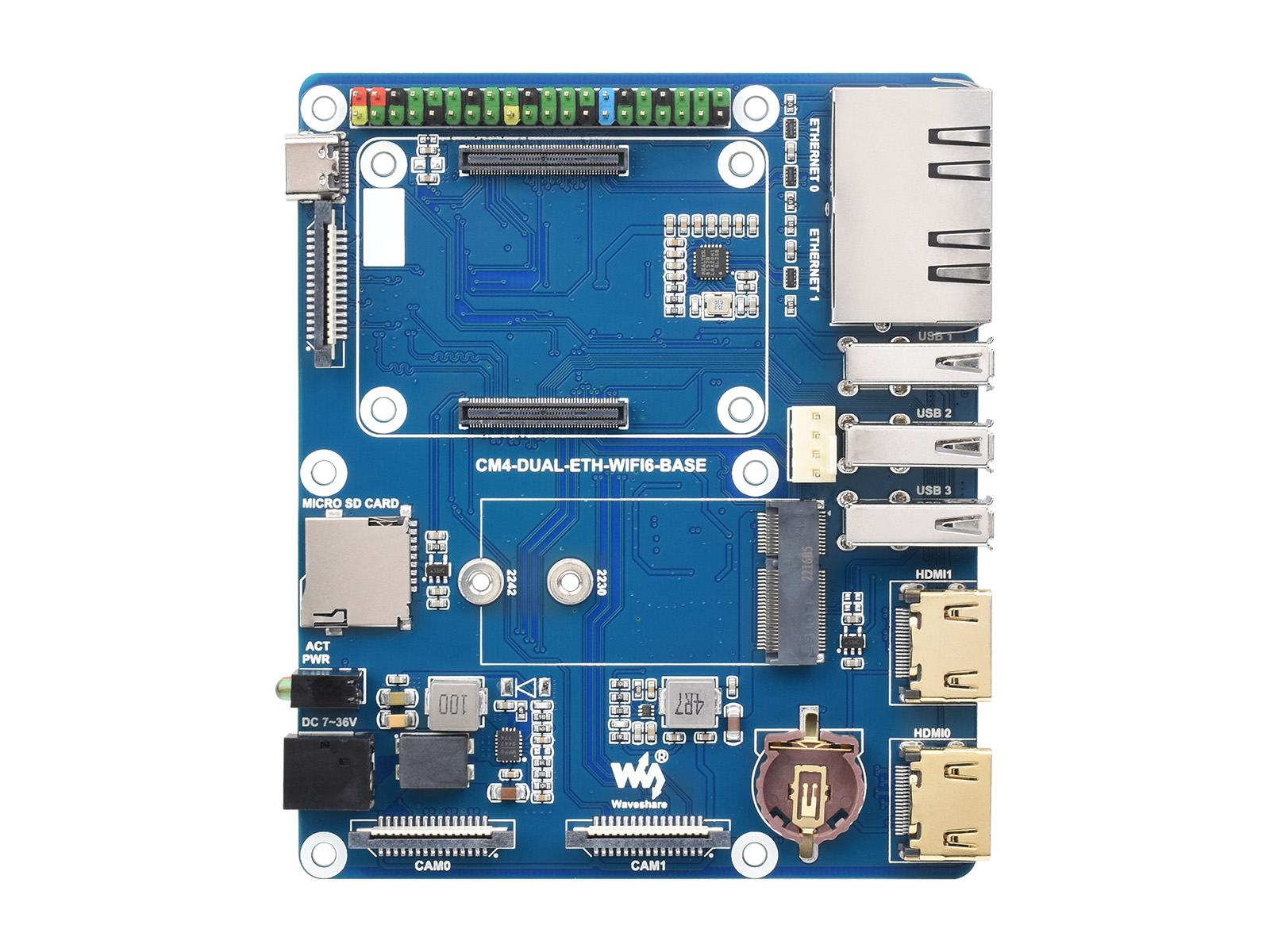

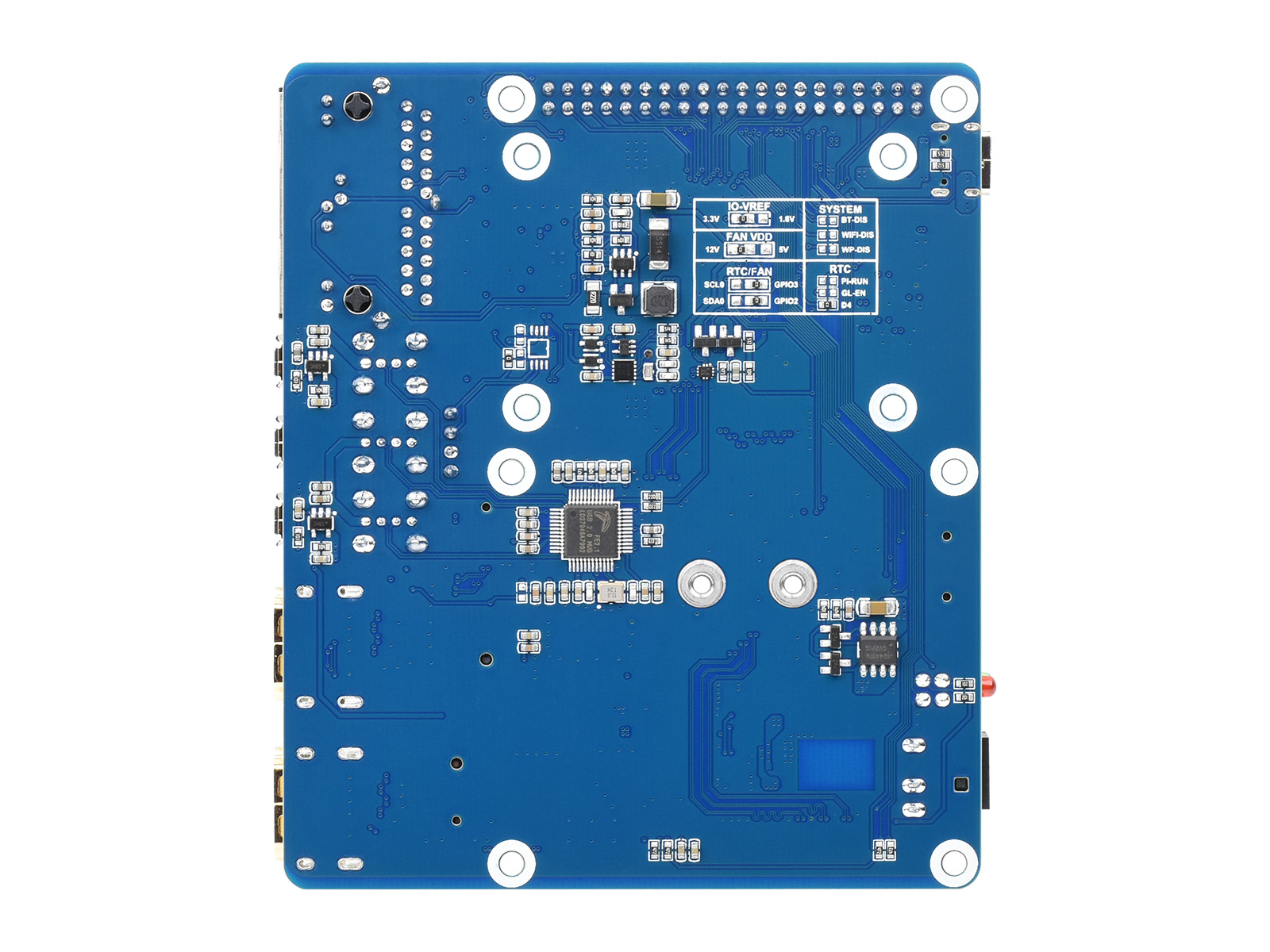

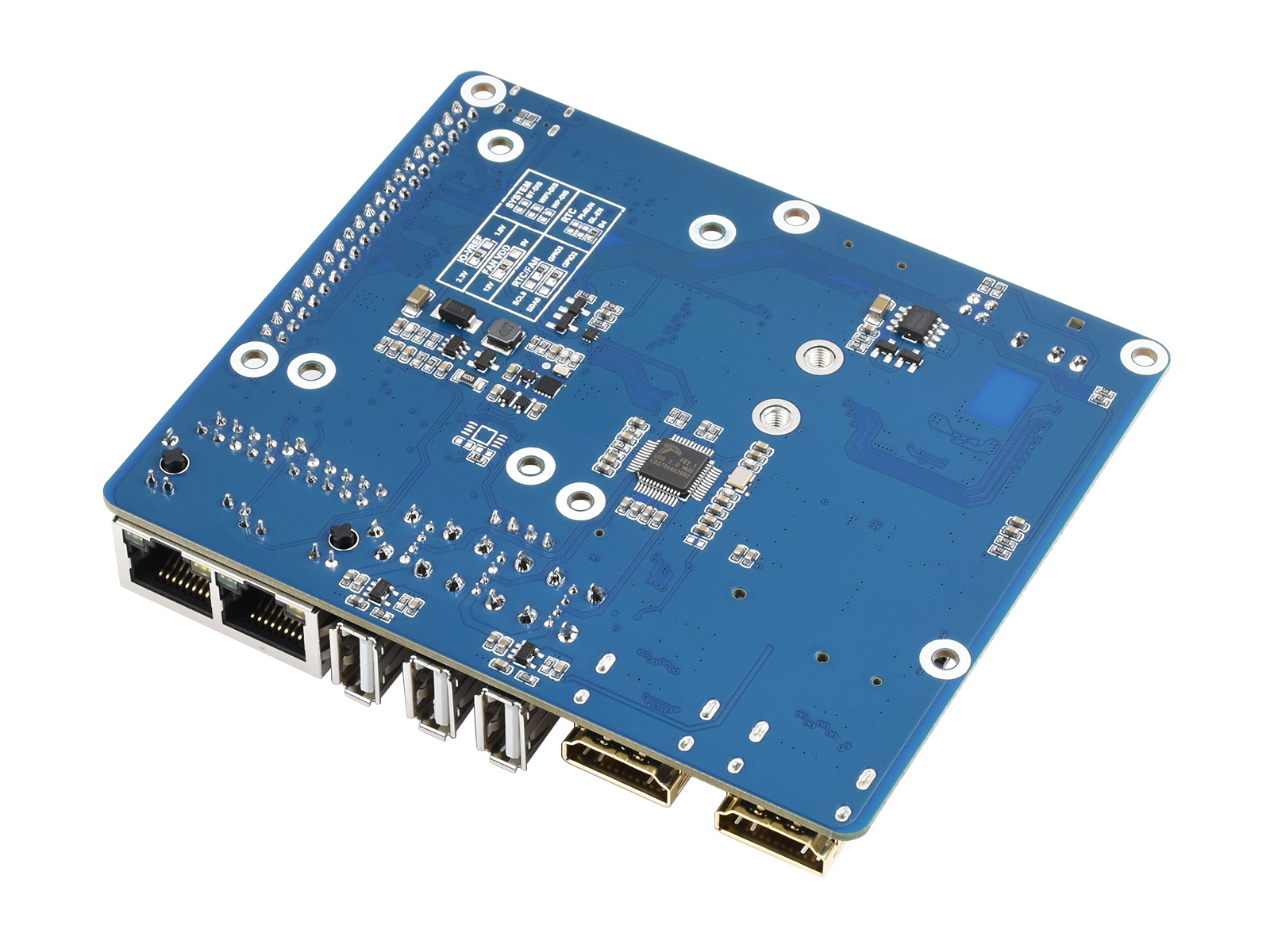

WIFI6 Dual ETH Base Board/Mini-Computer Designed for Raspberry Pi Compute Module 4(NOT Included), Onboard M.2 E KEY Slot

WIFI6 Dual ETH Base Board for CM4

suitable for evaluating the Raspberry Pi CM4 or being integrated into end products

Powerful Ethernet Capability

Compatible With WIFI Module

Compatible with the following types of WIFI modules with M.2 A/E KEY interface

Wireless-AX210WiFi 6E module

Wireless-AX200WiFi 6 module

for reference only, AX210/200 WIFI module are NOT included.

Optional Black Metal Case

Support access to WIFI6 module, make it easy to build Raspberry Pi CM4 mini PC with WIFI function

for reference only, CM4 and WIFI module are NOT included.

Specifications

CM4 socket	suitable for all variants of Compute Module 4
NETWORKING	Gigabit Ethernet RJ45 connector × 1; 100M Ethernet RJ45 connector × 1
USB	USB 2.0 port × 3
PCIe	M.2 E KEY
Pin header	40PIN GPIO header × 1
DSI display	MIPI DSI display port × 1, 15pin 1.0mm FPC connector
CSI camera	MIPI CSI-2 camera port × 2, 15pin 1.0mm FPC connector
HDMI	HDMI × 2, support 4K 30fps output
RTC	Real-time clock with battery socket and ability to wake Compute Module 4
TF card slot	TF card socket for Compute Module 4 Lite (without eMMC) variants
Power input	7V-36V
Dimensions	109.0 × 91.5mm

Selection guide

CM4 Base Board	Interface count and specifications
CM4 Base Board	PoE	Gigabit ETH	40PIN GPIO	PCIe	USB①	DSI	HDMI	CSI	RTC	Fan Header	Power Input	Features
NANO A			√		2.0×1			×1			5V	CM4 sized
NANO B		×1	√		2.0×1	×1	×1	×1			5V	CM4 sized
NANO C			√		2.0×1	×1	×1	×1			5V	Onboard Camera
mini Base A		×1	√	M.2 M	2.0×4	×1	×2	×2		5V	5V	mini size
mini Base B		×1	√	M.2 M	2.0×4	×1	×2	×2	√	5V	5V	mini size
mini Base C		×1	√	M.2 M	2.0×2		×1	×2	√	5V	5V	Dedicated 40PIN LCD Connector
Touch screen		×1		M.2 M	2.0×4		×1	×1			5V	IPS screen
Mini Dual Gigabit		×2	√		2.0×1					5V SH1.0	5V	dual ETH
Binocular camera		×1	√	M.2 M	2.0×4		×2				5V	dual 8MP cameras
4CH RS485		×1			2.0×2		×1	×2	×1	5V	7-36V	dual ETH
WIFI6 DUAL ETH		×1	√	M.2 E	2.0×3	×1	×2	×2	×1	5/12V	7-36V	WIFI6 dual ETH
Dual Gigabit ETH		×2	√		3.0×3	×1	×2	×2	√	5/12V	7-36V
IoT Dual Gigabit ETH		×2	√		3.0×2	×1	×2	×2	√	5/12V	5V	5G/4G support
IoT Base	√	×1		Gen2×1	2.0×2	×2	×2	×2	√	5/12V	7-36V	5G/4G supportRS232RS485ADC
PoE Base (B)	√	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	5/12V	5V	RS232RS485
PoE UPS Base	√	×1	√	M.2 M	2.0×4	×1	×2	×2	√	5/12V	7-36V	UPS
PoE Base	√	×1	√		3.0×4	×2	×2	×2	√	5/12V	7-36V
Raspberry Pi official	②	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	12V	12V
Wireless base		×1		M.2 B / Mini-PCIe	2.0×3		×1	×1	√	5/12V	5V or 7-36V	5G/4G support RS485 CAN rail-mount
UPS Wireless base		×1		M.2 B	2.0×3		×1	×1	√	5/12V	5V or 7-36V	With UPS 5G/4G support RS485 CAN rail-mount
NAS Mini Computer		×2	√	M.2 M×2/ Mini-PCIe	3.0×2		×2	×2	√		5V	dual M.2 M KEY slots
5″ touch screen	②	×1	√	M.2 M	2.0×4		×1	×2	√	5/12V	5V
7″ all-in-one		×1		M.2 M	2.0×4	used	×1	used	√	5/12V used	7-36V	touch screen camera speaker
13.3″ all-in-one		×1			2.0×2						12V	HD touch screen
13.3″ Magic Mirror		×1			2.0×2						12V	HD screen, Speech Assistant
Note	① USB 3.0 is equivalent to USB 3.2 Gen1 ② There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

Connecting with Compute Module 4

standard CM4 socket and color-coded Raspberry Pi 40PIN GPIO headersuitable for Compute Module 4 Lite/eMMC series module

* For reference only, CM4 and WIFI module are not included

Onboard M.2 E KEY Slot

Support access to WIFI module such as wireless NIC AX200, AX210, etc.

Parameters Comparison

Model	AX210			AX200		BE200
Wi-Fi Version	Wi-Fi 6E			Wi-Fi 6		Wi-Fi 7
Wi-Fi Band	2.4GHz	5GHz	6GHz	2.4GHz	5GHz	2.4GHz	5GHz	6GHz
Wi-Fi Rate	574Mbps	2400Mbps	2400Mbps	574Mbps	2400Mbps	574Mbps	2400Mbps	5800Mbps
Interface	NGFF (M.2 A/E Key)					NGFF (M.2 E Key)
Bluetooth Version	5.3			5.2		5.4
Technical Support	MU-MIMO
Antenna Connector	IPEX-4 Connector
System Support	Linux, Windows 10/11
Dimensions	22.0 × 30.0 × 2.4mm

Dual RJ45 Ethernet Connector

1-ch Gigabit Ethernet connector & 1-ch 100M Ethernet connector

Rich interfaces

Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

Cooling Fan Included

Comes With Cooling Fan, Combined With The Airflow Vent, Better Heat Dissipation

Wall Mount Support

Wall Mount Holes On Two Sides, Handy For Mounting

Application Examples

Suitable For Binocular Vision Raspberry Pi Projects, Or Other Industrial Context

for reference only, display, cameras, and antenna are NOT included.

Product Show

Outline dimensions

Resources & Services

WIKI:www.waveshare.com/wiki/CM4-DUAL-ETH-WIFI6-BASE

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Lieferumfang

CM4-DUAL-ETH-WIFI6-BASE

CM4-DUAL-ETH-WIFI6-BASE x1

1

CM4-DUAL-ETH-WIFI6-BOX

CM4-DUAL-ETH-WIFI6-BASE x1
Metal case (top and bottom) x1
Fan-4010-PWM-5V x1
OPTIONS12V 2A Power Supply x1
Screwpack x1

0 von 0 Bewertungen
